Maxxus CX 3.0 Installation & Operating Manual page 6

Assembly

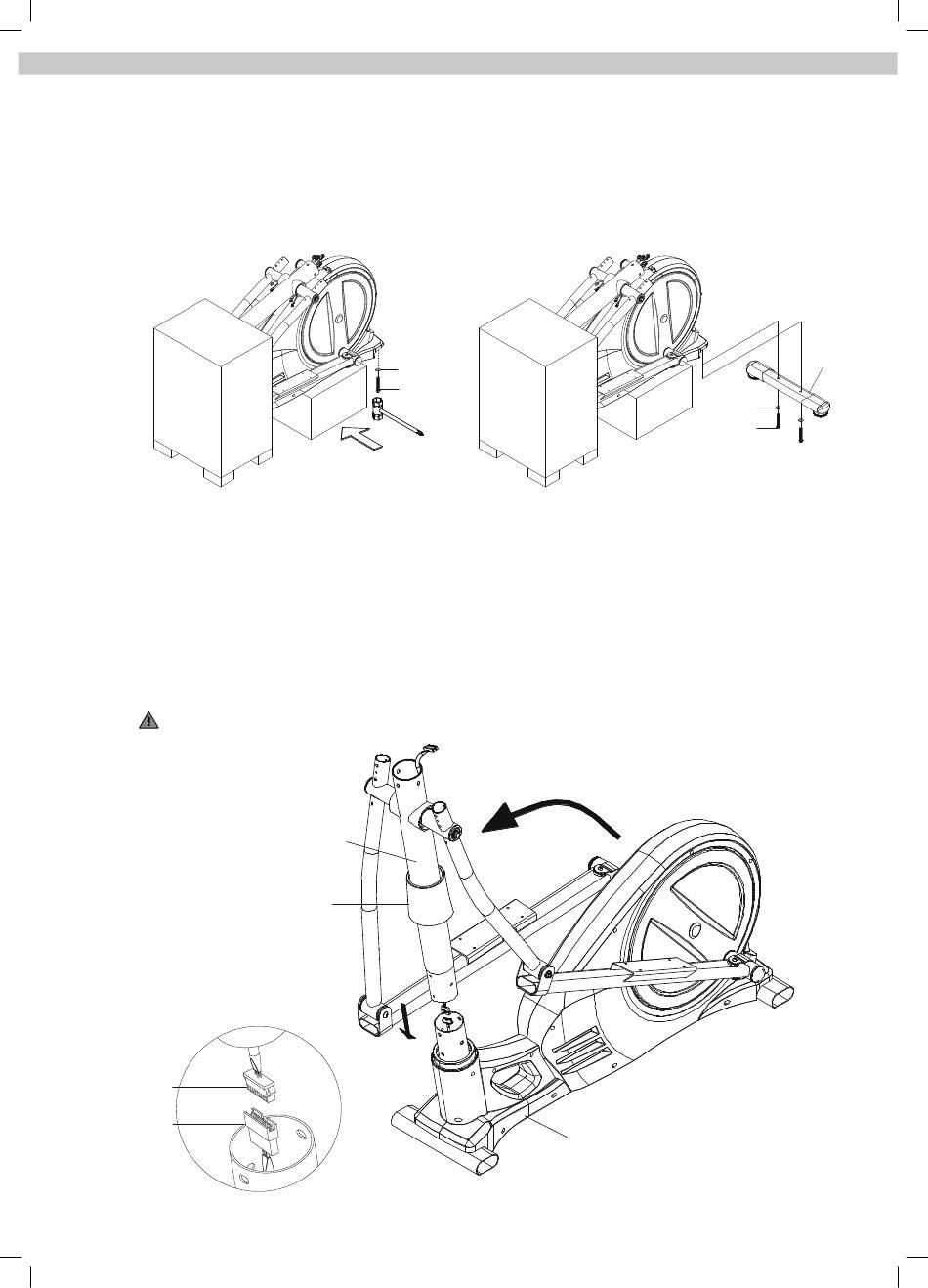

Step 2:
Remove the large polystyrene packaging block at the rear and lift the back end of the cross-trainer far enough
up so you can push the block underneath it as a support.
Loosen and remove the two 3/8" hex bolts (B11) and the two 3/8" washers (B10) that secure the transport lock
to the rear mount of the cross-trainer. Now remove the transport lock.
Attach the rear stand (A08) with adjustable feet to the rear mounting of the base frame using the two 3/8" hex
bolts (B11) and the two 3/8" washers (B10).
A08
B10
B11
B10
B11
Step 3.1:
Two people are required for this step.
Remove the polystyrene block used as a support in step 2 and now also remove the large polystyrene packag-
ing block from the front of the trainer.
One person then raises the handlebar shaft (A02) far enough that the second person can push the handlebar
shaft cover (C06) with the rubber seal (C27) from below into the handlebar shaft. Pay attention to the correct
alignment of the handlebar cover (C06).
Now, connect the cable (D04) protruding from the lower part of the handlebar shaft (A02) with the cable (D05)
that protrudes from the handlebar shaft mount on the base frame (A01).
Slide the handlebar shaft (A02) into the base frame mount.
CAUTION: Make sure that you do not pinch or damage the cable.
A02
C06/C27
D04
D05
A01
