Maxxus CX 3.0 Installation & Operating Manual page 7

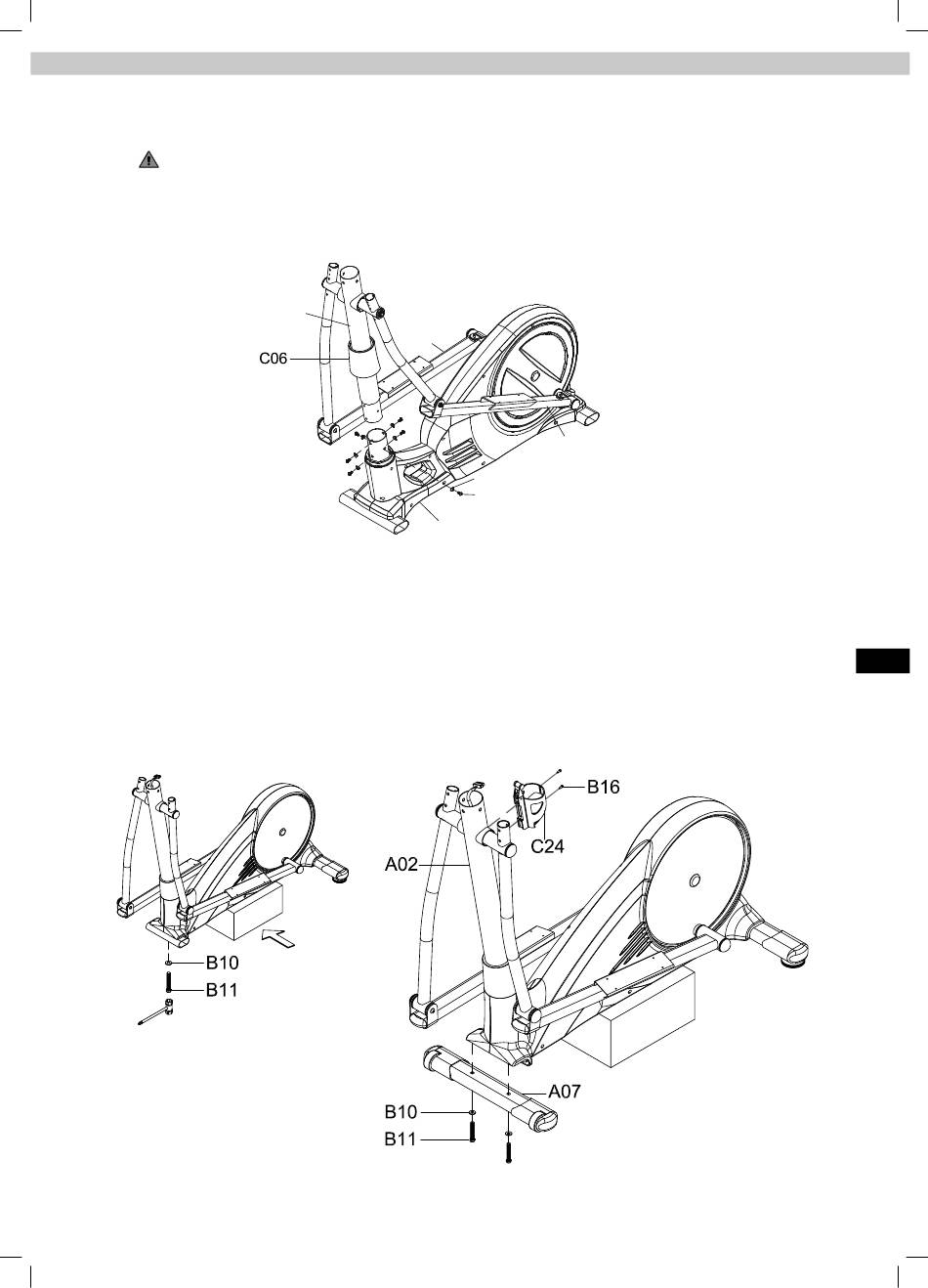

Step 3.2:
Screw the handlebar shaft (A02) to the base frame.
Use six Allen screws M8x20 (B02) and six M8 curved washers (B01).
CAUTION: Only tighten the screws slightly at first, then move the pedal tubes 2 to 3 turns to allow all com-
ponents to align.
Tighten all screws and slide the handlebar shaft cover (C06) downwards.
A02
Step 4:
Lift the cross-trainer and support it on one of the polystyrene blocks.
Loosen and remove the 3/8 "hexagon bolts (B11) and the two washers 3/8" (B10), which fix the transport lock to
the front mount of the cross-trainer.
Remove the transport lock.
Attach the front stand (A07) with transport rollers to the front mount of the base frame using two 3/8" hex bolts
(B11) and two 3/8" (washers B10).
Attach the bottle holder (C24) to the handlebar shaft (A02) with two M5x10 screws (B16).
A06
A05
B01
B02
39
Assembly
ENG
