TDK-Lambda GENESYS Series Instruction Manual page 6

5. Assemble two lugs on each bus bar, one on each side, using two hexagon bolts, four plain
washers, two helical spring-lock washers and two hexagon nuts as illustrated in Figure 5.
Helical Spring‐Lock Washer, M10, Stainless Steel
M10 x 25 Hexagon Bolt, Stainless Steel
Tightening torque: 220‐265 Lbf‐inch (24.9‐29.9 Nm)
6. Assemble bus bar insulator prior to output cover assembly. The insulator is flexible and could
be opened in its bottom side. Open the insulator and cover the bus bar by sliding it over the
bus bar, from top to bottom, as illustrated in Figure 6. Repeat for the second bus bar.
Hexagon Nut, M10, Stainless Steel
Plain Washer, M10, Stainless Steel
For recommended lugs refer
to series Safety &
Installation Manual.
Not supplied.

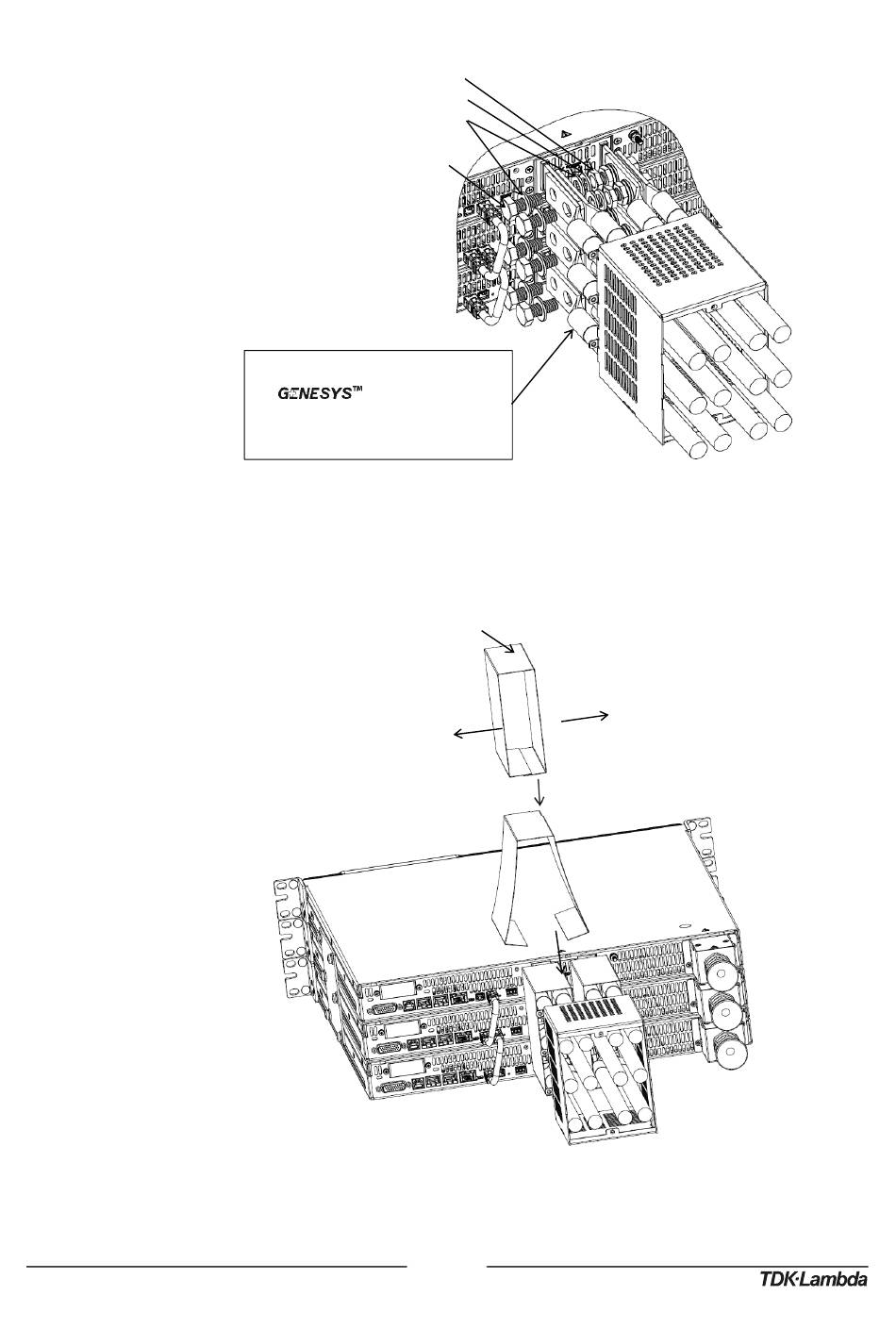

Figure 5: Three 10V Units Lugs Assembly
Bus Bar Insulator
Figure 6: Three 10V Units Bus Bar Insulator Assembly
