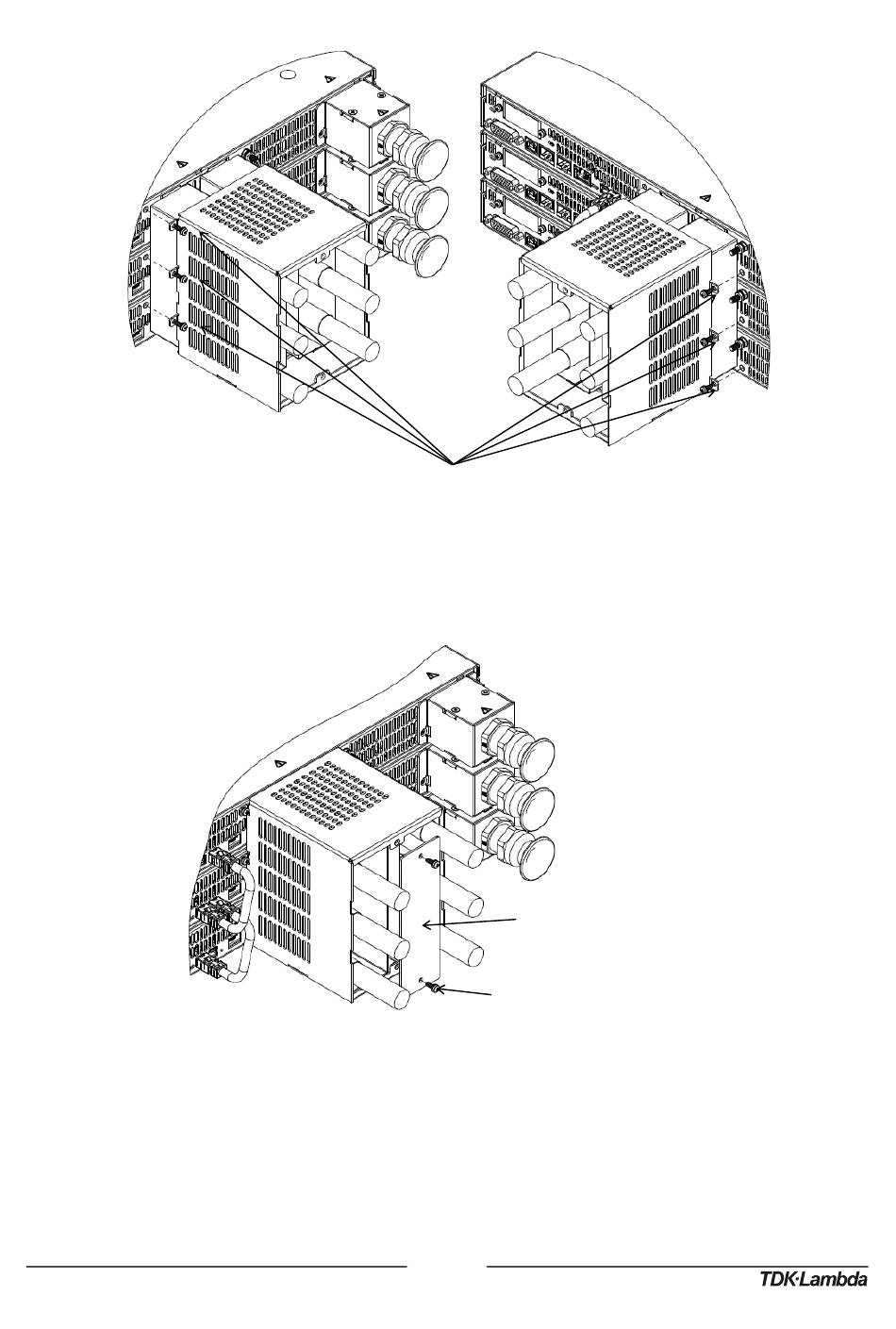

7. Fix output cover to the power supplies using six SEMS screws as illustrated in Figure 14.

8. Fix protection insulator to the output cover using two SEMS screw as illustrated in Figure 15.

Figure 14: Three 20V‐40V Units Output Cover Assembly

Figure 15: Three 20V‐40V Units Protection Insulator Assembly

M3 x 8 SEMS Screw, Nickel Plated

Tightening torque: 4.7‐5.7 Lbf‐inch (0.53‐0.64Nm)

Protection Insulator

M3 x 8 SEMS Screw, Nickel Plated

Tightening torque: 4.7‐5.7 Lbf‐inch (0.53‐0.64Nm)
