TDK-Lambda GENESYS Series Instruction Manual page 18

5. For load wires with a diameter greater than 11 millimeter divide each bus bar cover plug into
two separate parts by bending and breaking it along its separate grooves, as illustrated in
Figure 20. Insert only the rounded parts into the bus bar protection bracket and fix it to the
output cover using two SEMS screw. Insert output cover assembly through the cables as
illustrated in Figure 20.
Bus Bar Cover Plug
Separate Grooves

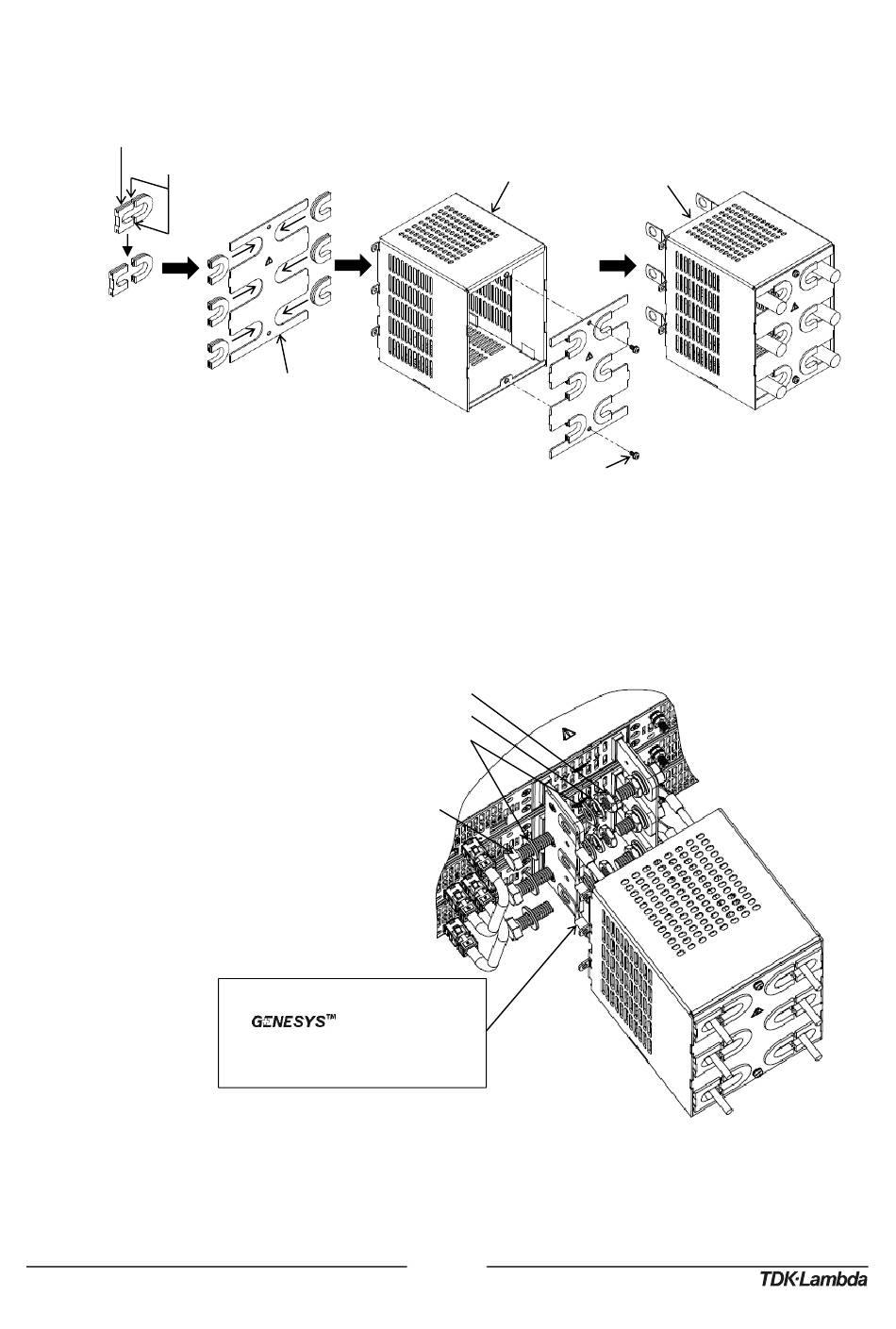

Figure 20: Three 60V‐100V Units, Wire Diameter > 11mm, Output Cover Assembly
6. Assemble one lug on each bus bar using one hexagon bolt, two plain washers, one helical
spring-lock washer and one hexagon nut as illustrated in Figure 21.
Helical Spring‐Lock Washer, M8, Stainless Steel
M8 x 25 Hexagon Bolt, Stainless Steel
Tightening torque: 106‐132 Lbf‐inch (12‐14.9 Nm)
Bus Bar Protection Bracket
Hexagon Nut, M8, Stainless Steel
Plain Washer, M8, Stainless Steel
For recommended lugs refer
to series Safety &
Installation Manual.
Not supplied.
Figure 21: Three 60V‐100V Units Lugs Assembly
Output Cover
M3 x 8 SEMS Screw, Nickel Plated
Tightening torque: 4.7‐5.7 Lbf‐inch (0.53‐0.64Nm)
18
Output Cover Assembly
