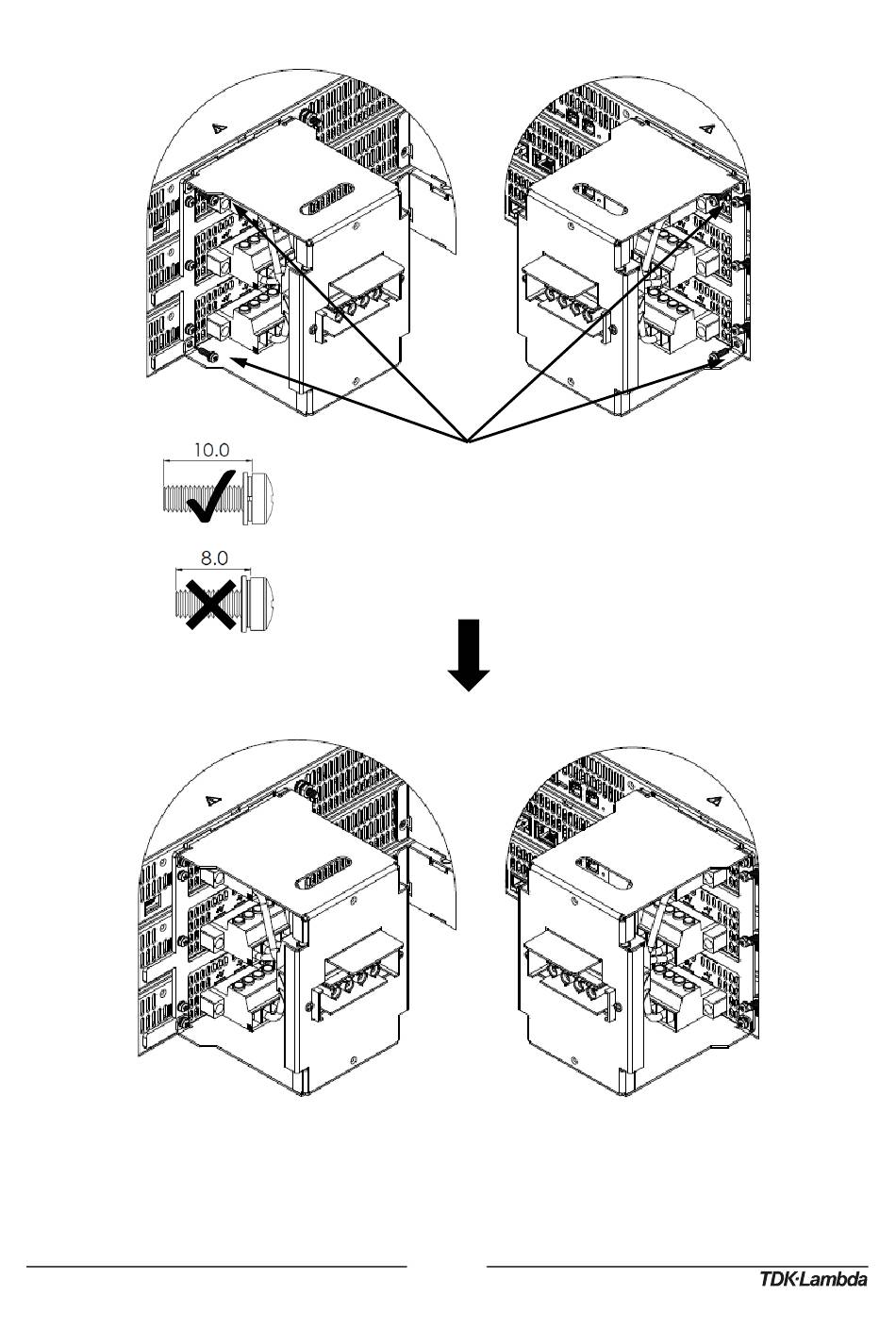

5. Attach output bracket G+15KW to fixing bracket using four SEMS screws, ten millimeter screw

length, screws as illustrated in Figure 27.

M3 x 10 SEMS Screw, Nickel Plated

Tightening torque:

4.7‐5.7 Lbf‐inch (0.53‐0.64Nm)

Figure 27: Output bracket G+15KW

installation
