1.4.3.2 Installation Steps

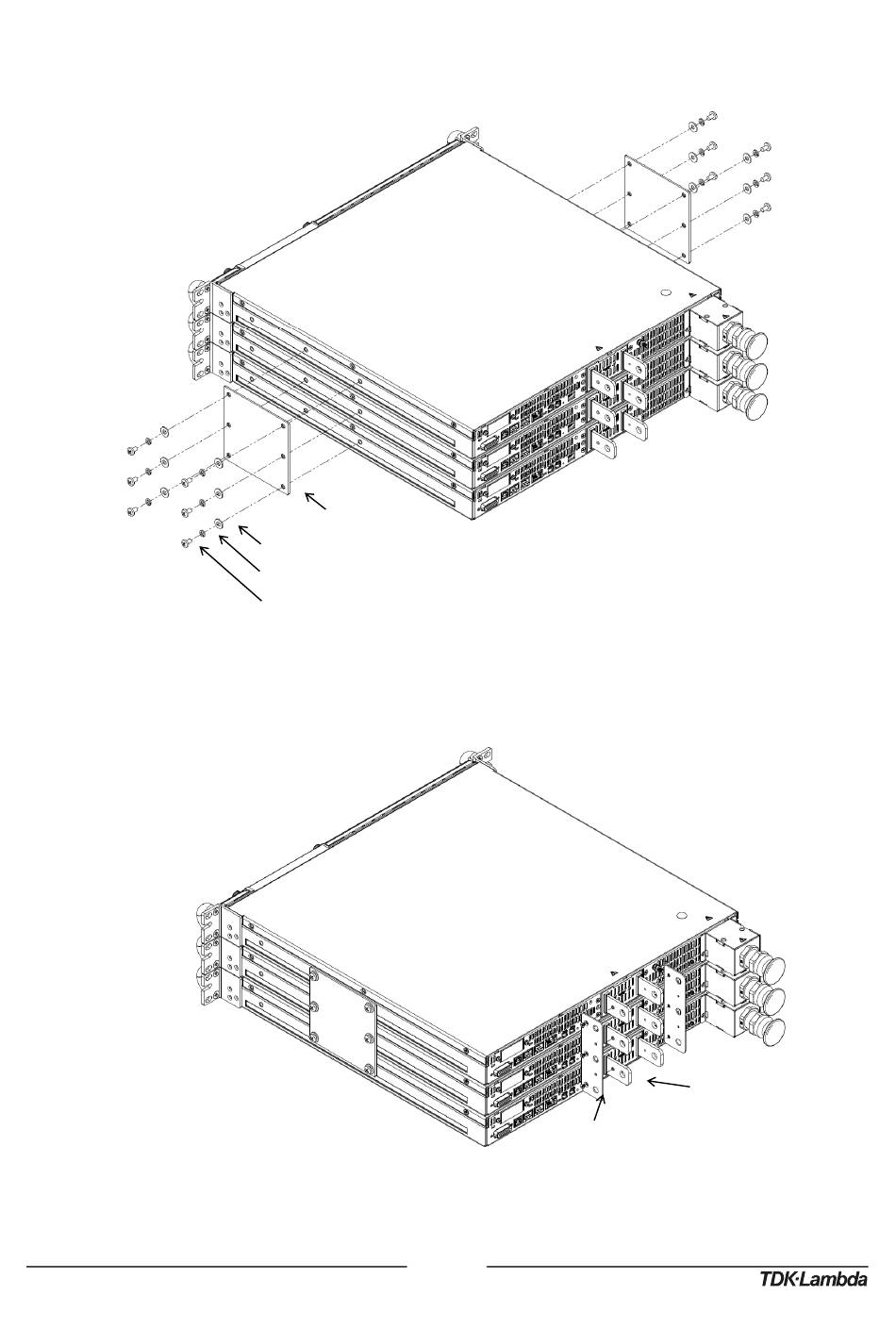

1. Attach connection plates, one on each side of the power supplies, using 12 pan head screws,

12 helical spring-lock washers and 12 plain washers as illustrated in Figure 16.

2. Attach output short plates, one on each pair of terminals, using six flat head screws as

illustrated in Figure 17.

Connection Plate 3U

Helical Spring‐Lock Washer, No. 10, Stainless Steel

Plain Washer, No. 10, Stainless Steel

10‐32 x 5/16 Pan Head Screw, Stainless Steel

Tightening torque: 25.4‐31.7 Lbf‐inch (2.87‐3.58Nm).

Figure 16: Three

60V‐100V

Figure 17: Three

Units Connection Plates 3U Assembly

Units Output Short Plates Assembly

60V‐100V

Output Short

M3 x 4C Flat Head Screw, Nickel Plated

Tightening torque: 4.7‐5.7 Lbf‐inch (0.53‐0.64Nm)
