TDK-Lambda GENESYS Series Instruction Manual page 10

1.4.2.2 Installation Steps

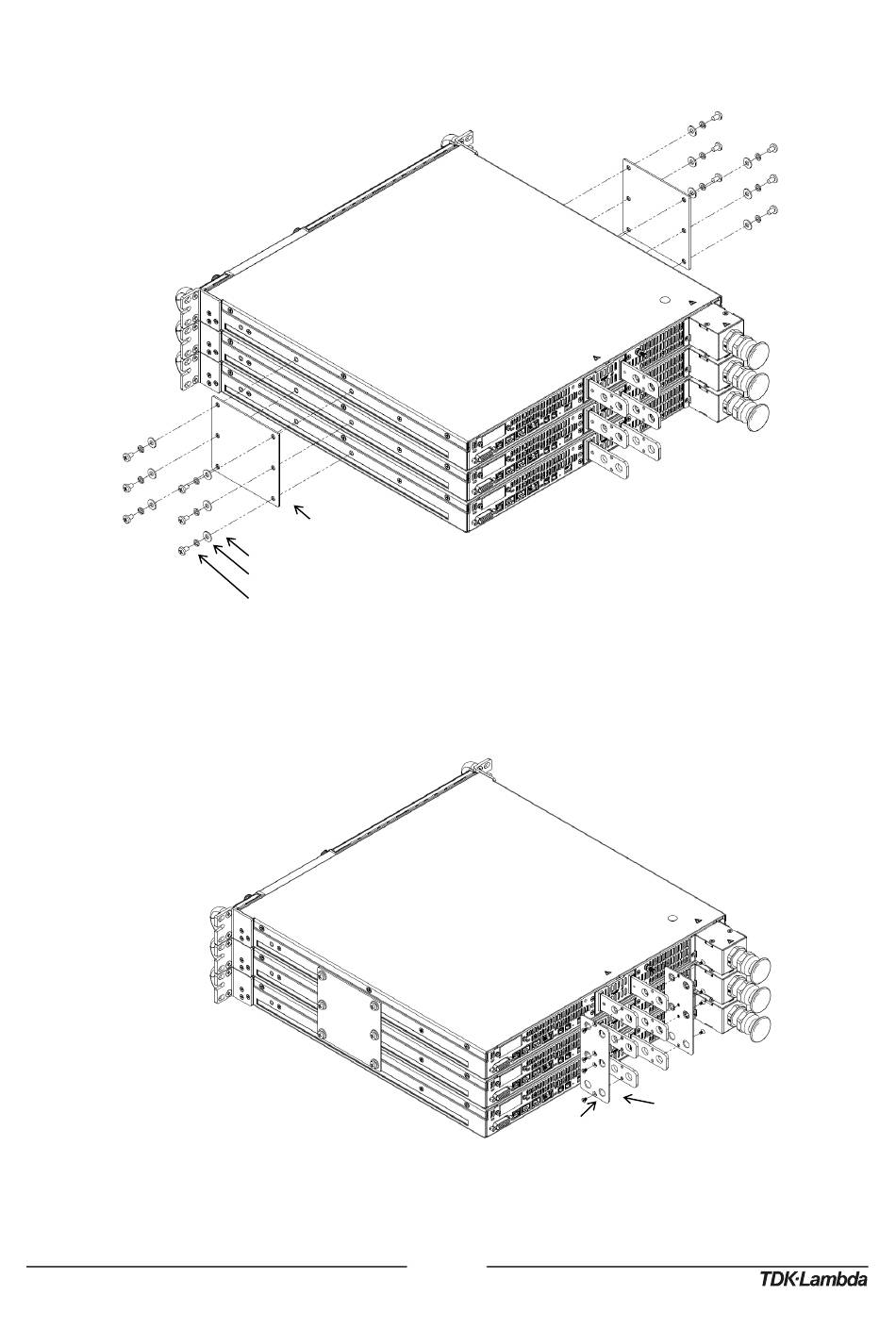

1. Attach connection plates, one on each side of the power supplies, using 12 pan head screws,
12 helical spring-lock washers and 12 plain washers as illustrated in Figure 8.
2. Attach output short plates, one on each triple of terminals, using eight flat head screws as
illustrated in Figure 9.
Connection Plate 3U
Plain Washer, No. 10, Stainless Steel
Helical Spring‐Lock Washer, No. 10, Stainless Steel
10‐32 x 5/16 Pan Head Screw, Stainless Steel
Tightening torque: 25.4‐31.7 Lbf‐inch (2.87‐3.58Nm).
Figure 8: Three 20V‐40V Units Connection Plates 3U Assembly
Figure 9: Three 20V‐40V Units Output Short Plates Assembly
M3 x 4C Flat Head Screw, Nickel Plated
Tightening torque: 4.7‐5.7 Lbf‐inch (0.53‐0.64Nm)
10
Output Short
