SATEL
GRAPHITE
3

5. Installation

Disconnect power before making any electrical connections.

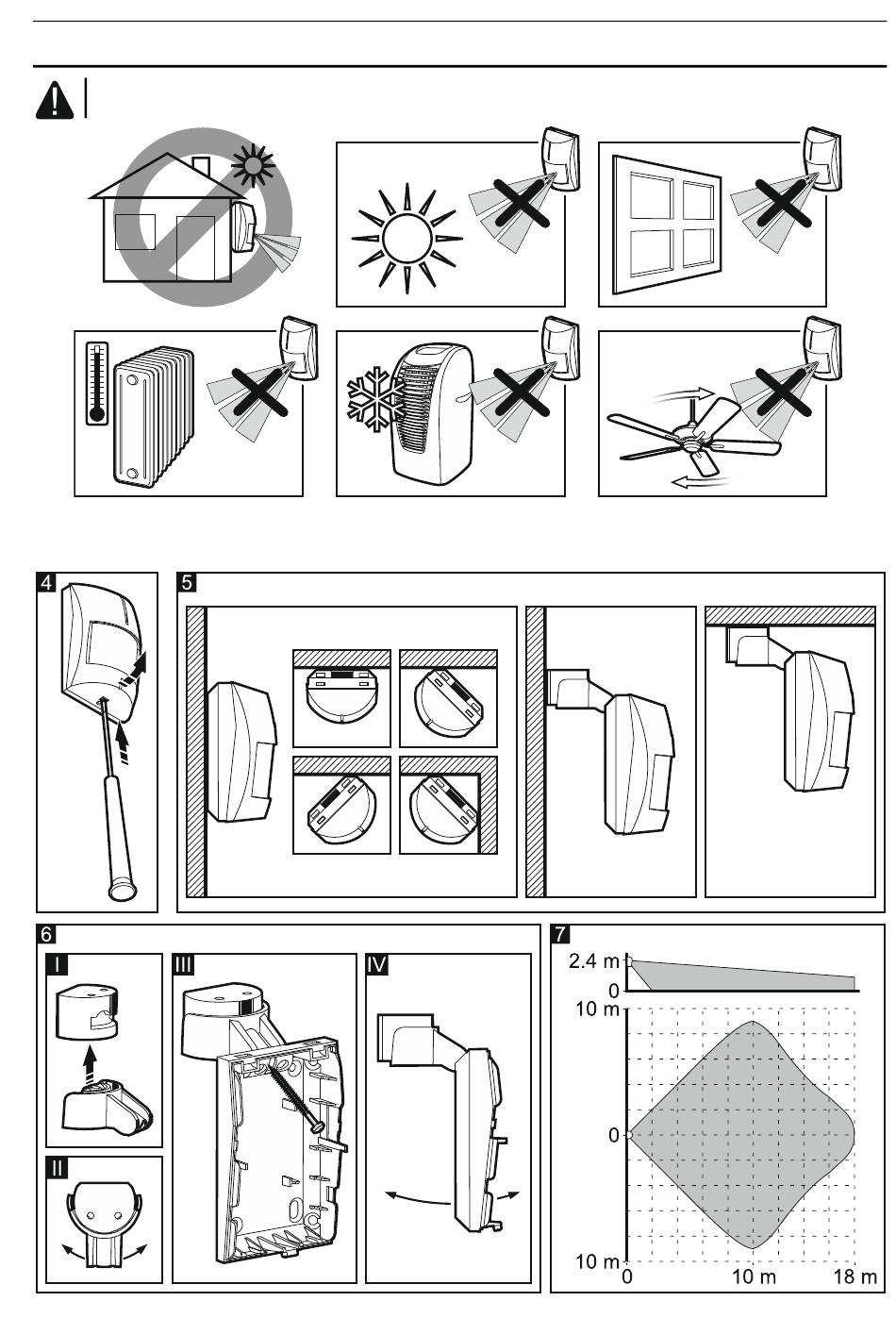

1. Remove the front cover (Fig. 4).
2. Remove the electronics board.
3. Make the openings for screws and cable in the enclosure base.
