4
4. Pass the cable through the prepared opening.
5. Secure the enclosure base directly to the wall or to the bracket screwed down to the wall/ceiling (Fig. 5 and
6). If the detector is to be located higher than 2.4 m above the floor, use the bracket and tilt the detector on
the bracket.
Note: Do not mount the detector on the bracket, if the detector is to meet the requirements of EN50131-2-2.

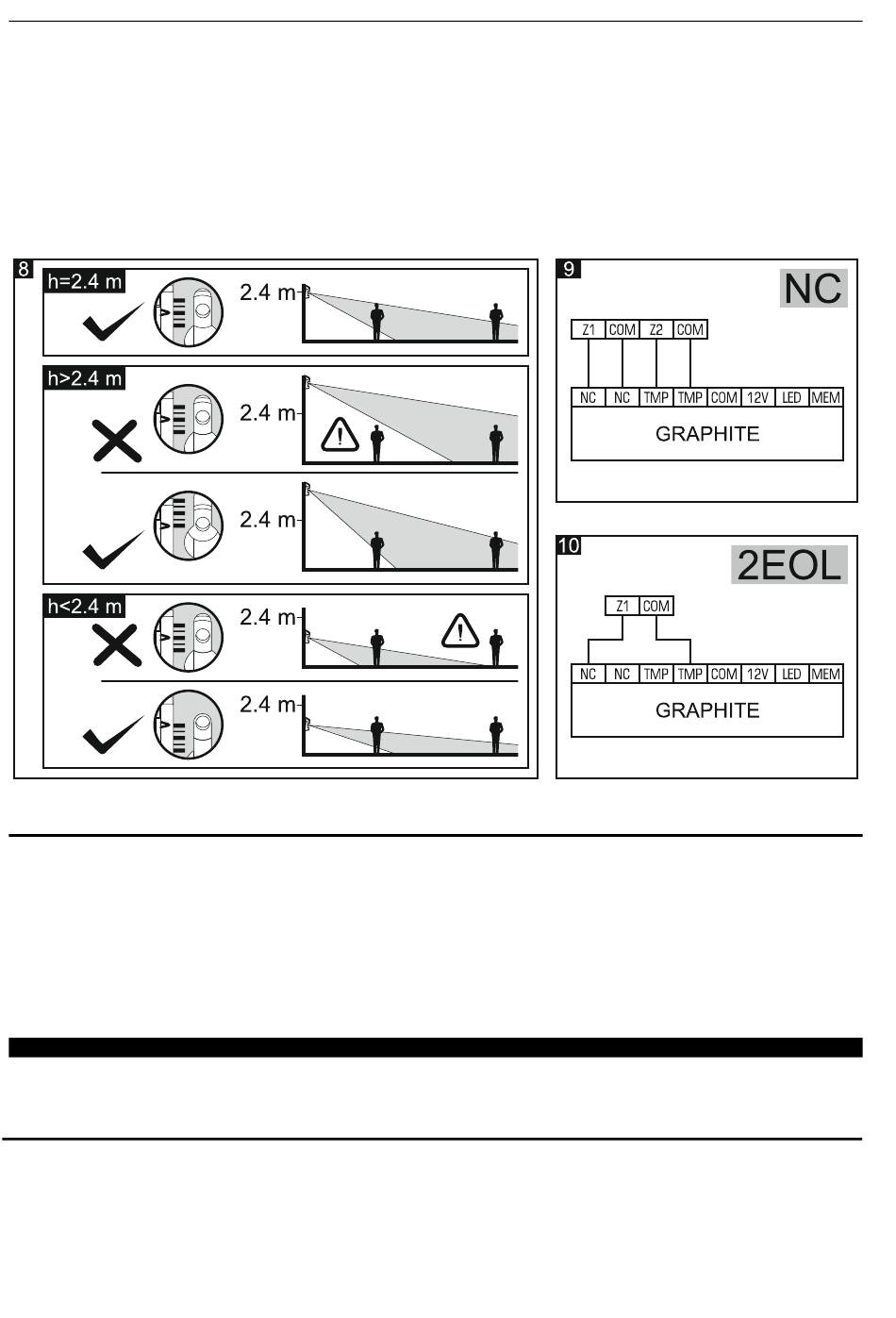

6. Fasten the electronics board. The scale next to the mounting screw hole facilitates positioning of the
electronics board, depending on the detector installation height (Fig. 8).
7. Connect the wires to the corresponding terminals.
8. Using potentiometer and jumpers, set the detector working parameters.
9. Replace the cover.

6. Start-up and walk test

Note: When testing the detector, the LED should be enabled.
1. Power-up the detector. The LED will start blinking, which indicates the detector warm-up.
2. When the LED stops blinking, check that moving within the coverage area (Fig. 7 shows the maximum
coverage area – at the maximum sensitivity) will activate the alarm relay and make the LED light up.
The declaration of conformity may be consulted at www.satel.eu/ce
SATEL sp. z o.o. • ul. Budowlanych 66 • 80-298 Gdańsk • POLAND
