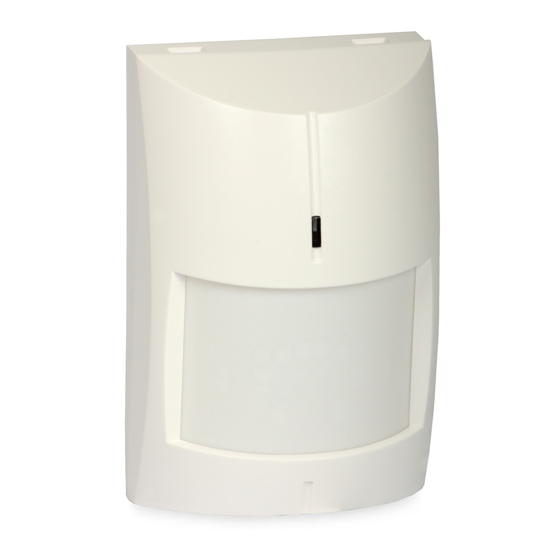

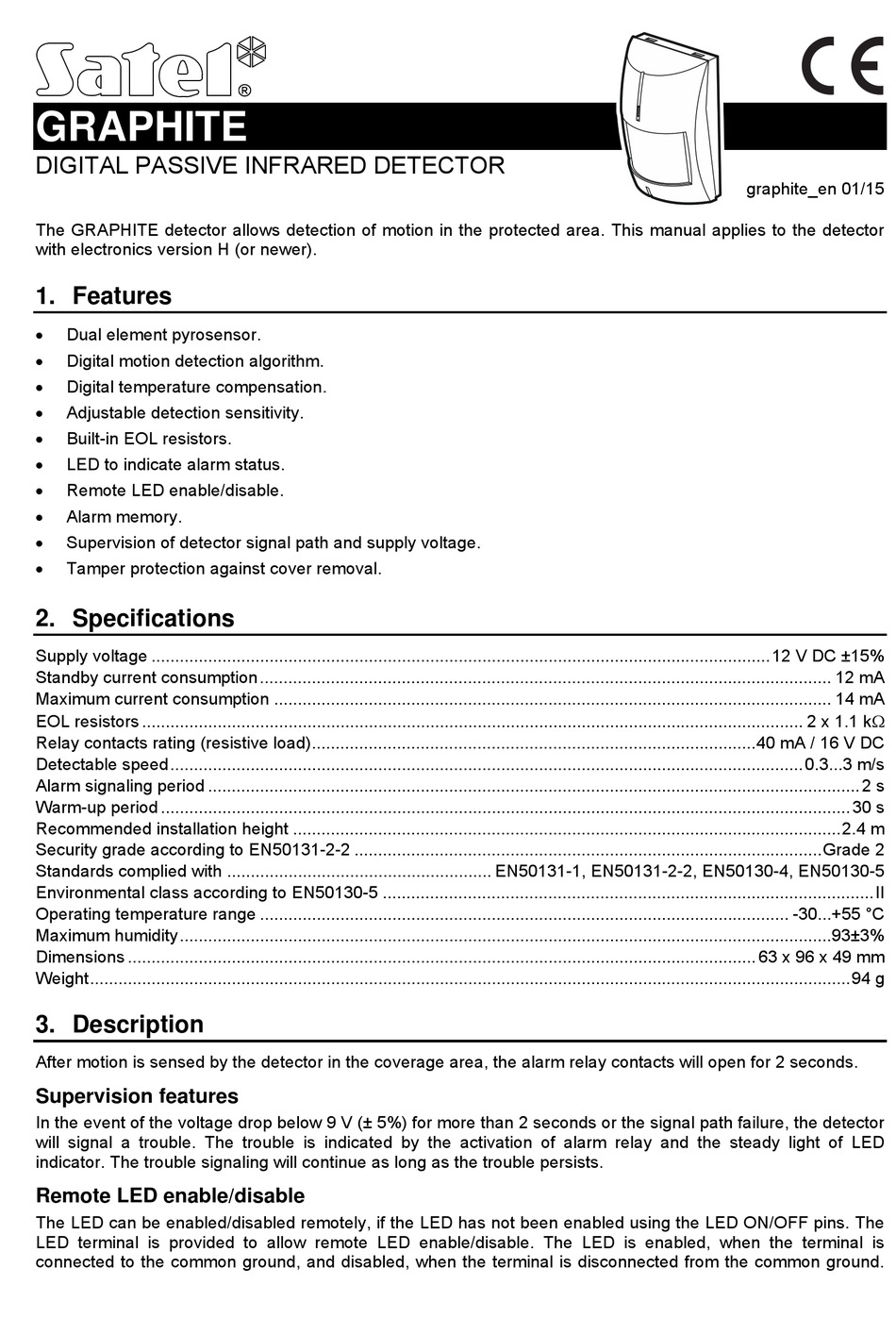

GRAPHITE
DIGITAL PASSIVE INFRARED DETECTOR
The GRAPHITE detector allows detection of motion in the protected area. This manual applies to the detector
with electronics version H (or newer).

1. Features


Dual element pyrosensor.

Digital motion detection algorithm.

Digital temperature compensation.

Adjustable detection sensitivity.

Built-in EOL resistors.

LED to indicate alarm status.

Remote LED enable/disable.

Alarm memory.

Supervision of detector signal path and supply voltage.

Tamper protection against cover removal.

2. Specifications

Supply voltage ...................................................................................................................................12 V DC ±15%
Standby current consumption......................................................................................................................... 12 mA
Maximum current consumption ...................................................................................................................... 14 mA
EOL resistors ............................................................................................................................................ 2 x 1.1 k
Relay contacts rating (resistive load)..............................................................................................40 mA / 16 V DC
Detectable speed...................................................................................................................................... 0.3...3 m/s
Alarm signaling period .......................................................................................................................................... 2 s
Warm-up period .................................................................................................................................................. 30 s
Recommended installation height ....................................................................................................................2.4 m
Security grade according to EN50131-2-2 ...................................................................................................Grade 2
Standards complied with ........................................................ EN50131-1, EN50131-2-2, EN50130-4, EN50130-5
Environmental class according to EN50130-5 ........................................................................................................II
Operating temperature range ................................................................................................................ -30...+55 °C
Maximum humidity..........................................................................................................................................93±3%
Dimensions ..................................................................................................................................... 63 x 96 x 49 mm
Weight.................................................................................................................................................................94 g

3. Description

After motion is sensed by the detector in the coverage area, the alarm relay contacts will open for 2 seconds.
Supervision features
In the event of the voltage drop below 9 V (± 5%) for more than 2 seconds or the signal path failure, the detector
will signal a trouble. The trouble is indicated by the activation of alarm relay and the steady light of LED
indicator. The trouble signaling will continue as long as the trouble persists.
Remote LED enable/disable
The LED can be enabled/disabled remotely, if the LED has not been enabled using the LED ON/OFF pins. The
LED terminal is provided to allow remote LED enable/disable. The LED is enabled, when the terminal is
connected to the common ground, and disabled, when the terminal is disconnected from the common ground.
®
graphite_en 01/15
