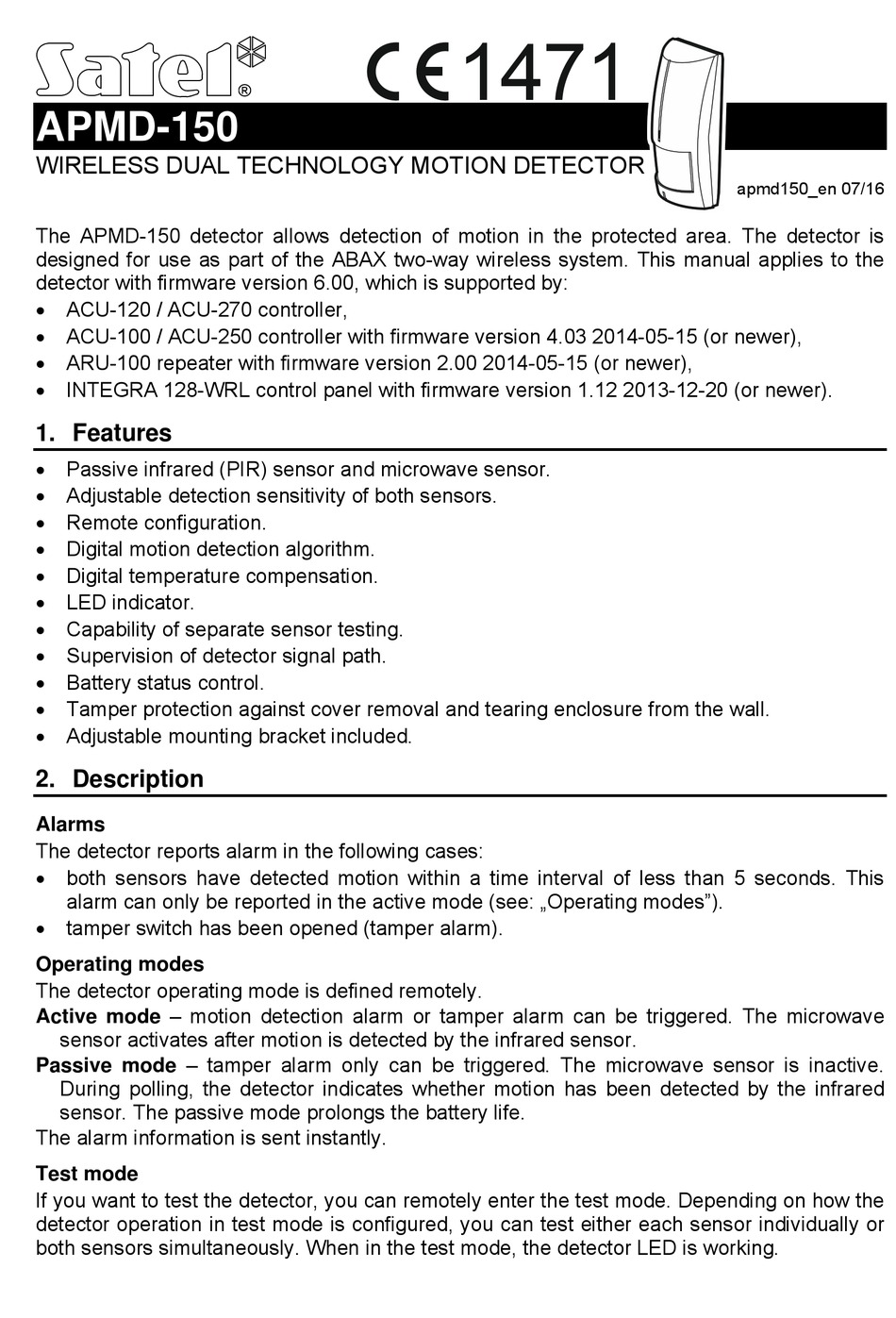

APMD-150
WIRELESS DUAL TECHNOLOGY MOTION DETECTOR
The APMD-150 detector allows detection of motion in the protected area. The detector is
designed for use as part of the ABAX two-way wireless system. This manual applies to the
detector with firmware version 6.00, which is supported by:
 ACU-120 / ACU-270 controller,
 ACU-100 / ACU-250 controller with firmware version 4.03 2014-05-15 (or newer),
 ARU-100 repeater with firmware version 2.00 2014-05-15 (or newer),
 INTEGRA 128-WRL control panel with firmware version 1.12 2013-12-20 (or newer).

1. Features

 Passive infrared (PIR) sensor and microwave sensor.
 Adjustable detection sensitivity of both sensors.
 Remote configuration.
 Digital motion detection algorithm.
 Digital temperature compensation.
 LED indicator.
 Capability of separate sensor testing.
 Supervision of detector signal path.
 Battery status control.
 Tamper protection against cover removal and tearing enclosure from the wall.
 Adjustable mounting bracket included.

2. Description

Alarms

The detector reports alarm in the following cases:
 both sensors have detected motion within a time interval of less than 5 seconds. This
alarm can only be reported in the active mode (see: „Operating modes").
 tamper switch has been opened (tamper alarm).

Operating modes

The detector operating mode is defined remotely.
Active mode – motion detection alarm or tamper alarm can be triggered. The microwave
sensor activates after motion is detected by the infrared sensor.
Passive mode – tamper alarm only can be triggered. The microwave sensor is inactive.
During polling, the detector indicates whether motion has been detected by the infrared
sensor. The passive mode prolongs the battery life.
The alarm information is sent instantly.

Test mode

If you want to test the detector, you can remotely enter the test mode. Depending on how the
detector operation in test mode is configured, you can test either each sensor individually or
both sensors simultaneously. When in the test mode, the detector LED is working.
®
1471
apmd150_en 07/16
