- Page 1 SATEL GRAPHITE GRAPHITE Digital passive infrared detector Firmware version 2.00 graphite_en 06/21 SATEL sp. z o.o. • ul. Budowlanych 66 • 80-298 Gdańsk • POLSKA tel. +48 58 320 94 00 www.satel.eu...
- Page 2 Changes, modifications or repairs not authorized by the manufacturer shall void your rights under the warranty. SATEL aims to continually improve the quality of its products, which may result in changes in their technical specifications and software. Current information about the changes being introduced is available on our website.
-
Page 3: Table Of Contents
CONTENTS Features ........................... 2 Description ........................2 Supervision features ......................2 LED indicator ........................2 Alarm memory ........................3 Electronics board ......................3 Selecting a mounting location ................... 4 Installation ........................4 Start-up and walk test ....................... 7 Specifications ........................8... -
Page 4: Features

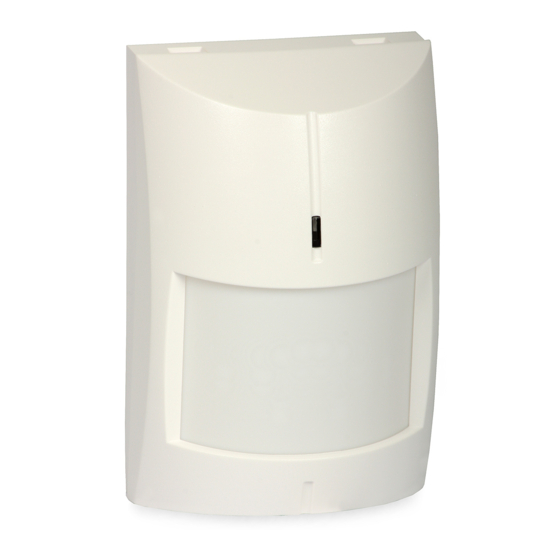

GRAPHITE SATEL The GRAPHITE detector detects motion in the protected area. This manual applies to the detector with electronics version H. 1. Features Motion detection with passive infrared sensor (PIR). Adjustable detection sensitivity. Digital motion detection algorithm. -
Page 5: Alarm Memory
SATEL GRAPHITE Alarm memory If the LED is enabled, the detector can signal the alarm memory. The MEM terminal is provided to allow the alarm memory enable / disable. The alarm memory is enabled, when the terminal is connected to common ground. The alarm memory is disabled, when the terminal is disconnected from common ground. -
Page 6: Selecting A Mounting Location
GRAPHITE SATEL pins for configuration of the detector: PET – enable / disable the pet immunity option: jumper in ON position – option enabled (Fig. 4). jumper in OFF position – option disabled (Fig. 5). LED – enable / disable the LED: jumper in ON position –... - Page 7 SATEL GRAPHITE 6. Fasten the electronics board. 7. Connect the wires to the corresponding terminals. 8. Configure the detector settings. 9. Replace the cover.
- Page 8 GRAPHITE SATEL...
-
Page 9: Start-Up And Walk Test
SATEL GRAPHITE 6. Start-up and walk test The LED indicator should be enabled during the walk test (see “LED indicator”). 1. Power on the detector. The LED will be flashing for 30 seconds to indicate warm-up of the detector. 2. When the LED stops flashing, check if moving within the detector coverage area will make the LED to light up. -
Page 10: Specifications
GRAPHITE SATEL 7. Specifications Supply voltage ....................12 VDC ±15% Standby current consumption ..................10 mA Maximum current consumption ..................13 mA EOL resistors ......................2 x 1.1 k Outputs alarm (NC relay, resistive load) ..............40 mA / 24 VDC tamper (NC) .................... - Page 11 SATEL GRAPHITE Dimensions ...................... 63 x 96 x 49 mm Weight ..........................94 g...
