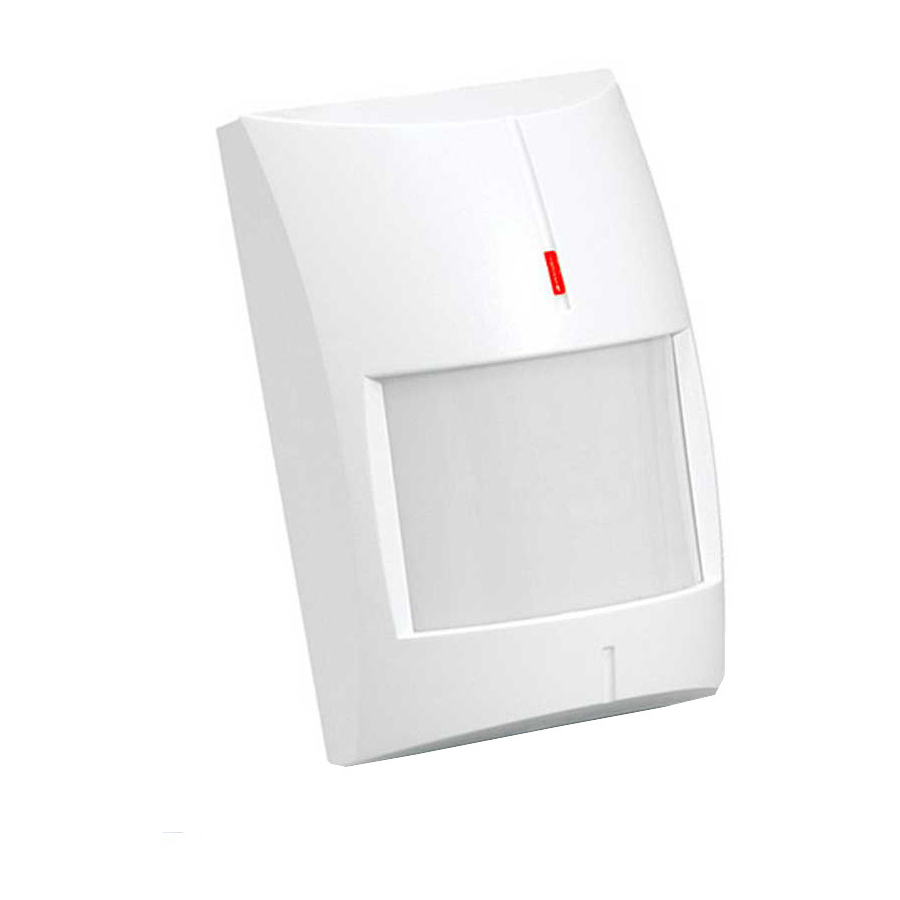

DIGITAL DUAL TECHNOLOGY MOTION DETECTOR
The GREY / GREY Plus detector allows detection of motion in the protected area.
1. Features
•
Passive infrared (PIR) sensor and microwave sensor.
•
Adjustable detection sensitivity of both sensors.
•
Digital motion detection algorithm.
•
Pet immunity up to 15 kg.
•
Digital temperature compensation.
•
Microwave based anti-mask feature [GREY Plus].
•
Bi-color LED to indicate motion detection / alarm status.
•
Remote LED enable/disable.
•
Alarm memory.
•
Capability of separate sensor testing.
•
Supervision of detector signal path and supply voltage.
•
Tamper protection against cover removal.
2. Specifications
Supply voltage ................................................................................................................................... 12 V DC ±15%
Standby current consumption
Maximum current consumption
Relay contacts rating (resistive load) .............................................................................................. 40 mA / 16 V DC
Microwave frequency .....................................................................................................................................24 GHz
Detectable speed ...................................................................................................................................... 0.3...3 m/s
Alarm signaling period .......................................................................................................................................... 2 s
Warm-up period .................................................................................................................................................. 30 s
Recommended installation height .................................................................................................................... 2.4 m
Environmental class according to EN50130-5 ........................................................................................................ II
Operating temperature range ................................................................................................................ -10...+55 °C
Maximum humidity .......................................................................................................................................... 93±3%
Dimensions ..................................................................................................................................... 63 x 96 x 49 mm
Weight
The declaration of conformity may be consulted at www.satel.eu/ce
3. Description
The alarm will be triggered when both sensors detect motion within a time interval shorter than 5 seconds.
GREY ................................................................................................ 10 mA
GREY Plus ........................................................................................ 13 mA
GREY ................................................................................................ 17 mA
GREY Plus ........................................................................................ 18 mA
GREY .................................................................................................... 98 g
GREY Plus .......................................................................................... 100 g
