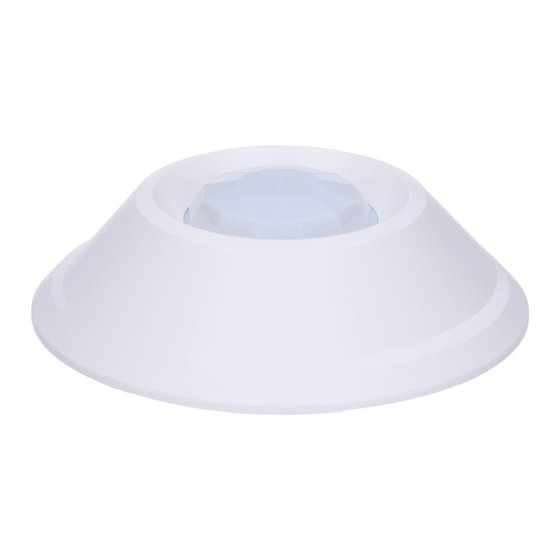

- Page 1 Digital passive infrared detector for ceiling mount installation AQUA RING S Firmware version 4.00 aquaring_s_en 07/23 SATEL sp. z o.o. • ul. Budowlanych 66 • 80-298 Gdańsk • POLAND tel. +48 58 320 94 00 www.satel.pl...
- Page 2 Changes, modifications or repairs not authorized by the manufacturer shall void your rights under the warranty. SATEL aims to continually improve the quality of its products, which may result in changes in their technical specifications and software. Current information about the changes being introduced is available on our website.
-
Page 3: Table Of Contents
CONTENTS Features ........................... 2 Specifications ........................2 Description ........................3 Supply voltage control ...................... 3 LED indicator ........................3 Electronics board ......................3 Terminals .......................... 4 Selecting a mounting location ................... 4 Installation ........................4 Start-up and walk test ....................... 7... -
Page 4: Features
AQUA Ring S SATEL The AQUA Ring S detector detects motion in the protected area. This manual applies to the detector with electronics version 4.2. 1. Features • Motion detection with passive infrared sensor (PIR). • Selectable detection sensitivity. • Digital motion detection algorithm. -
Page 5: Description
SATEL AQUA Ring S 3. Description The alarm output will turn on for 2 seconds when the infrared sensor (PIR) detects motion. Supply voltage control When the voltage drops below 9 V (± 5%) for more than 2 seconds, the detector will indicate a trouble. -
Page 6: Terminals
AQUA Ring S SATEL Terminals - alarm output (NC relay). TMP - tamper output (NC). 24V - 12...24 VAC/DC power input. 5. Selecting a mounting location • Do not install the detector outdoors (A). • Install the detector at the recommended height (B). - Page 7 SATEL AQUA Ring S 7. Connect the wires to the corresponding terminals. 8. Configure the detector settings. 9. Replace the cover. The marks on the cover and base will help you close the enclosure (Fig. 9).
- Page 8 AQUA Ring S SATEL...
-
Page 9: Start-Up And Walk Test
SATEL AQUA Ring S 7. Start-up and walk test The LED indicator should be enabled during the walk test. 1. Power on the detector. The LED will be flashing for 30 seconds to indicate warm-up of the detector. 2. When the LED stops flashing, check if moving within the detector coverage area will make the LED to light up.
