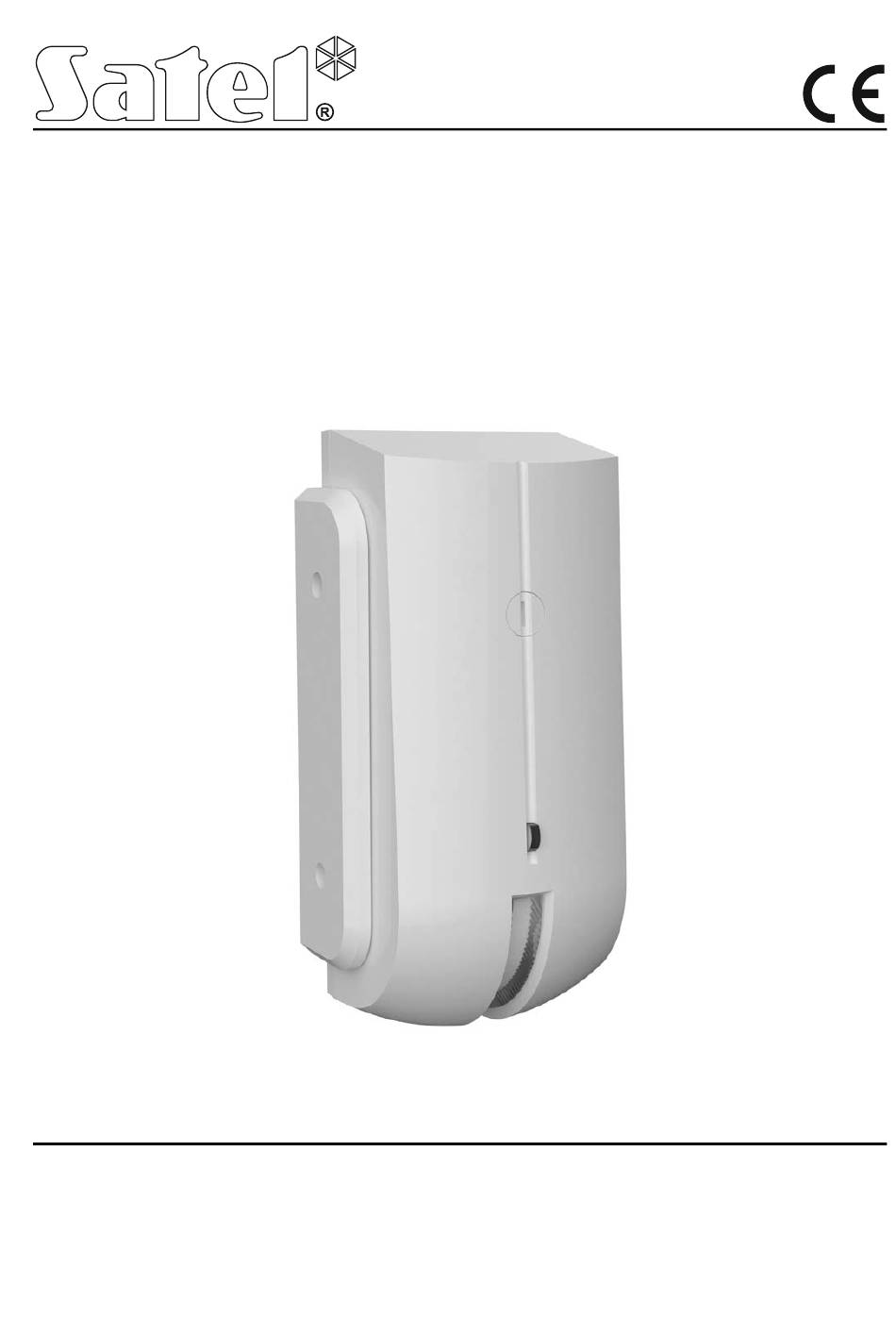

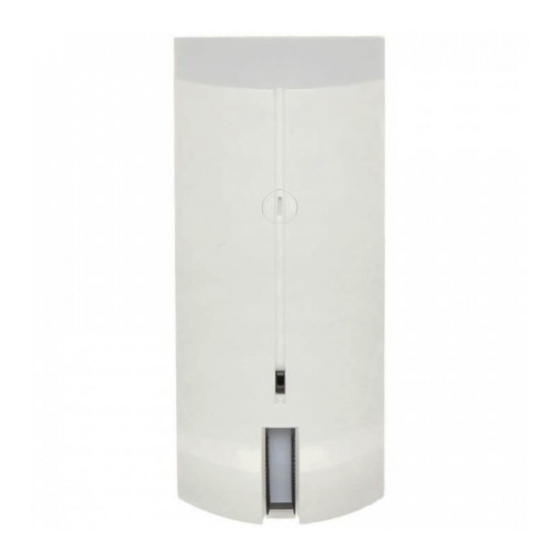

- Page 1 02/17 OUTDOOR DUAL TECHNOLOGY CURTAIN DETECTOR AGATE Firmware version 1.02 SATEL sp. z o.o. • ul. Budowlanych 66 • 80-298 Gdańsk • POLAND tel. +48 58 320 94 00 www.satel.eu...
- Page 2 Changes, modifications or repairs not authorized by the manufacturer shall void your rights under the warranty. SATEL's goal is to continually upgrade the quality of its products, which may result in some changes of their technical specifications and firmware. The current information on the introduced modifications is available on our website.
- Page 3 The AGATE detector makes it possible to detect motion at the moment of crossing the perimeter of protected area. It is designed for perimeter protection. This manual applies to the detector with electronics version 1.4 (or newer) and firmware version 1.02 (or newer). The detector meets requirements of the EN 50131-2-4 standard for Grade 3.
- Page 4 AGATE SATEL terminal is disconnected from the common ground. You can connect to the LED terminal an OC type control panel output programmed e.g. as the S , BI ERVICE MODE STATUS SWITCH ONE TEST STATUS 3. Electronics board terminals: TMP - tamper output (NC).
- Page 5 SATEL AGATE The detector can be installed outdoors as well as indoors, in spaces with harsh environmental conditions (high dustiness, high humidity, low or high temperatures, etc.). Thus, you can use it in warehouses, production halls, or other industrial facilities.
- Page 6 Fig. 6 (the detector can also be mounted on the adjustable brackets, BRACKET A and BRACKET B, offered by SATEL). 5. Mount the enclosure base directly to the wall (Fig. 5) or to the angle bracket screwed down to the wall (Fig.
- Page 7 SATEL AGATE has been installed and adjusting the working parameters of anti-mask circuit accordingly (for 45 seconds). During that time the detector must not be in any way obstructed. When testing the detector, the LED should be enabled. 1. Power-up the detector. The LED will start flashing alternately red, green and blue to signal warm-up of the detector.
- Page 8 AGATE SATEL 6. Specifications Supply voltage ....................12 V DC ±15% Standby current consumption ..................21 mA Maximum current consumption ..................25 mA Microwave frequency ....................24.125 GHz Detectable speed ...................... 0.2...3 m/s Alarm signaling period......................2 s Warm-up period ........................45 s Recommended installation height ..................
