opal_pro_en 05/19

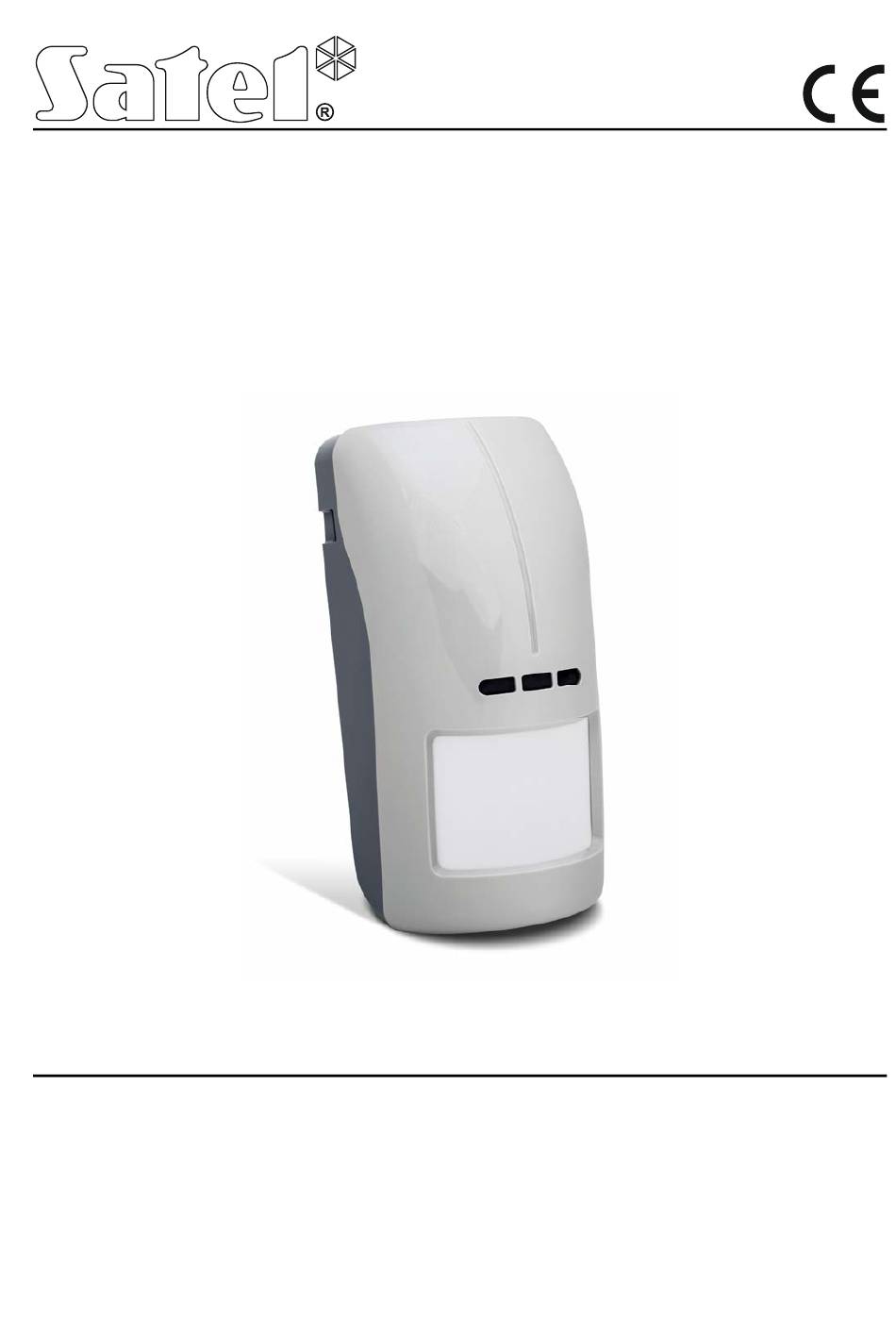

OUTDOOR DUAL TECHNOLOGY MOTION DETECTOR
OPAL Pro
Firmware version 1.01
SATEL sp. z o.o. • ul. Budowlanych 66 • 80-298 Gdańsk • POLAND
tel. +48 58 320 94 00
www.satel.eu

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OPAL Pro and is the answer not in the manual?

Questions and answers

Related Manuals for Satel OPAL Pro

Summary of Contents for Satel OPAL Pro

  • Page 1 05/19 OUTDOOR DUAL TECHNOLOGY MOTION DETECTOR OPAL Pro Firmware version 1.01 SATEL sp. z o.o. • ul. Budowlanych 66 • 80-298 Gdańsk • POLAND tel. +48 58 320 94 00 www.satel.eu...
  • Page 2 Changes, modifications or repairs not authorized by the manufacturer shall void your rights under the warranty. SATEL aims to continually improve the quality of its products, which may result in changes in their technical specifications and software. Current information about the changes being introduced is available on our website.
  • Page 3 The OPAL Pro detector allows detection of motion in the protected area. It is designed for outdoor use. This manual applies to the detector with electronics version B (or newer) and firmware version 1.00 (or newer). The detector meets requirements of the EN 50131-2-4 standard for Grade 3.

  • Page 4: Remote Configuring Mode Enable/Disable

    OPAL Pro SATEL Remote configuring mode enable/disable The SVCE terminal is provided to allow remote configuring mode enable/disable. The configuring mode is enabled, when the terminal is connected to the common ground. You can connect to the SVCE terminal an OC type control panel output programmed e.g.

  • Page 5: Installation

    SATEL OPAL Pro 4. Installation Disconnect power before making any electrical connections. If the detector is to be pet immune, it should be mounted at 2.4 m height with no vertical tilt. It is especially important when mounting on a ball bracket.
  • Page 6 OPAL Pro SATEL 3. Make the opening for cable in the enclosure base. 4. Mount the enclosure base to the wall (see: “Wall mounting”), to the angle bracket (see: “Angle bracket mounting”) or to the ball bracket (see: “Ball bracket mounting”). In Figure 5 possible ways of mounting the detector are shown.

  • Page 7: Wall Mounting

    SATEL OPAL Pro Wall mounting 1. Run the cable through the opening in the enclosure base. 2. Using wall plugs (screw anchors) and screws, fasten the enclosure base to the wall Angle bracket mounting 1. Attach extra tamper contact: – screw the holder to the tamper contact (Fig. 6-I), –...

  • Page 8: Connecting The Additional Tamper Contact

    OPAL Pro SATEL 4. Run the cable through the opening in the enclosure base. 5. Using screws, fasten the enclosure base to the ball bracket (Fig. 9). Connecting the additional tamper contact The additional tamper contact is provided with three wires: –...

  • Page 9: Starting Configuring Mode

    SATEL OPAL Pro Figure 11 shows the way the dusk sensor operates. On the timeline the T time delay is presented (in operating mode T=15 min, in configuring mode T=3 s). Illustrated with the letter H light intensity hysteresis and time delay make the sensor immune to short and accidental changes of light intensity.
  • Page 10 OPAL Pro SATEL Configuring by means of OPT-1 keyfob Point the keyfob towards the detector and by pressing buttons (value decreasing) and (value increasing) set the sensitivity / detection threshold of the sensor. Pressing the button restores default settings for the configured sensor.

  • Page 11: Opt-1 Keyfob

    SATEL OPAL Pro 8. OPT-1 keyfob The keyfob is CR2032 3V lithium battery powered. Battery life depends entirely on the way the keyfob is used. The battery lasts for at least 8 thousand button pressings. The keyfob LED is ON if any button is pressed. If the battery is low, the LED blinks instead of being ON. You should replace the battery then.

  • Page 12: Specifications

    OPAL Pro SATEL 9. Specifications OPAL Pro Supply voltage ...........................12 V DC ±15% Standby current consumption ......................... 17 mA Maximum current consumption........................30 mA Relay contacts rating (resistive load)..................... 40 mA / 16 V DC D/N output rating (OC type output) ....................50 mA / 12 VDC Microwave frequency............................
