- Page 1 SLIM-PIR-PET Digital passive infrared detector with pet immunity up to 20 kg Firmware version 1.00 slim-pir-pet_en 01/20 SATEL sp. z o.o. • ul. Budowlanych 66 • 80-298 Gdańsk • POLAND tel. +48 58 320 94 00 www.satel.eu...
- Page 2 Changes, modifications or repairs not authorized by the manufacturer shall void your rights under the warranty. SATEL aims to continually improve the quality of its products, which may result in changes in their technical specifications and software. Current information about the changes being introduced is available on our website.
-
Page 3: Table Of Contents
CONTENTS Features ........................... 2 Description ........................2 Supervision features ......................2 LED indicator ........................2 Electronics board ......................3 Selecting a mounting location ................... 4 Installation ........................4 Configuring LED indicator settings ................... 6 Start-up and walk test ....................... 7 Specifications ........................ -
Page 4: Features

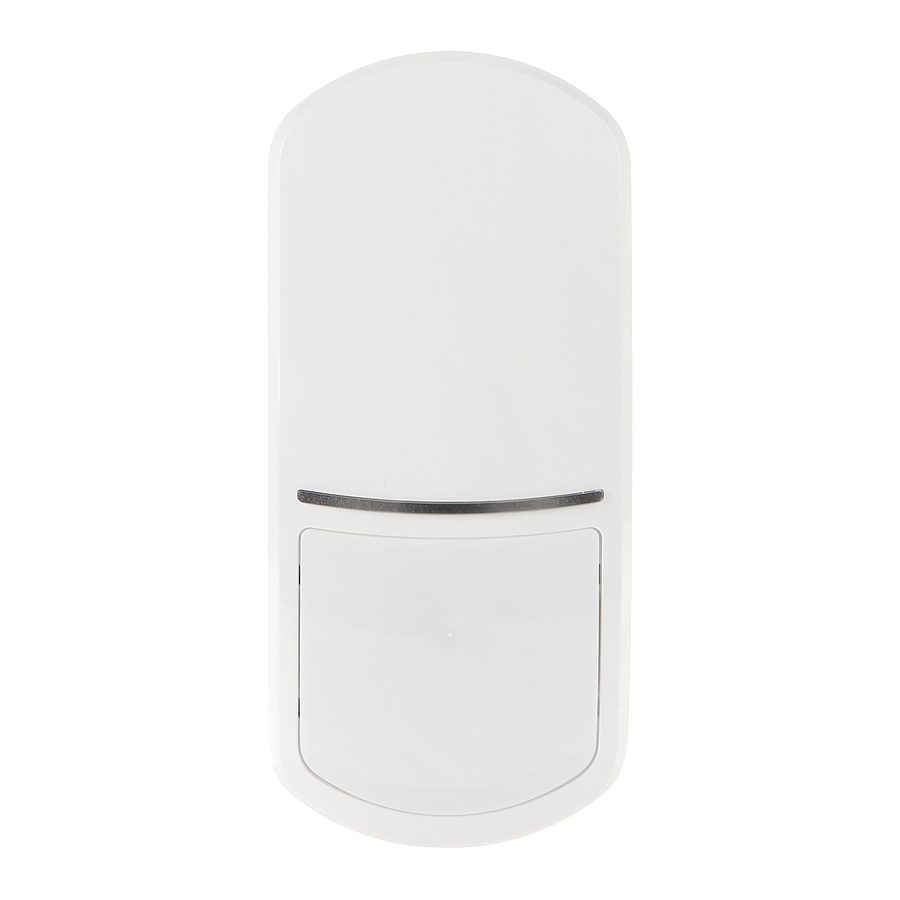

SLIM-PIR-PET SATEL The SLIM-PIR-PET detector detects movement in the protected area. This manual applies to the detector with electronics version F. 1. Features Motion detection with passive infrared sensor (PIR). Adjustable detection sensitivity. Digital motion detection algorithm. -
Page 5: Electronics Board
SATEL SLIM-PIR-PET 3. Electronics board Do not touch the pyroelectric sensor, so as not to soil it. terminal block: - alarm output (NC relay). TMP - tamper output (NC). LED - enable/disable the LED indicator. COM - common ground. +12V - power input. -
Page 6: Selecting A Mounting Location
SLIM-PIR-PET SATEL 4. Selecting a mounting location Do not install the detector outdoors (A). Install the detector at the recommended height (B). When choosing the installation location, keep in mind that the detector performance will be the best where the expected direction of the intruder movement will be across the coverage pattern (C). - Page 7 SATEL SLIM-PIR-PET...
-
Page 8: Configuring Led Indicator Settings
SLIM-PIR-PET SATEL 6. Configuring LED indicator settings 1. Power off the detector (if it is powered on). 2. Put a jumper across the LED pins. 3. Power on the detector. The LED will start flashing green to indicate the detector warm-up. -
Page 9: Start-Up And Walk Test
SATEL SLIM-PIR-PET 7. Start-up and walk test The LED should be enabled during the walk test (see “LED indicator”). 1. Power on the detector. The LED will be flashing green for 30 seconds to indicate the detector warm-up. 2. When the LED stops flashing, check that moving within the detector coverage area will make the LED to turn on. - Page 10 SLIM-PIR-PET SATEL Security grade according to EN 50131-2-2 ..............Grade 2 Compliance with standards ....EN 50131-1, EN 50131-2-2, EN 50130-4, EN 50130-5 Environmental class according to EN 50130-5 ................ II Operating temperature range ................-10°C...+55°C Maximum humidity ......................93±3% Dimensions ....................
