pins for configuration of the detector:
PET – enable / disable the pet immunity option:
jumper in ON position – option enabled (Fig. 4).
jumper in OFF position – option disabled (Fig. 5).
LED – enable / disable the LED:
jumper in ON position – LED enabled (Fig. 4).
jumper in OFF position – LED disabled (Fig. 5).
potentiometer for sensitivity adjustment.

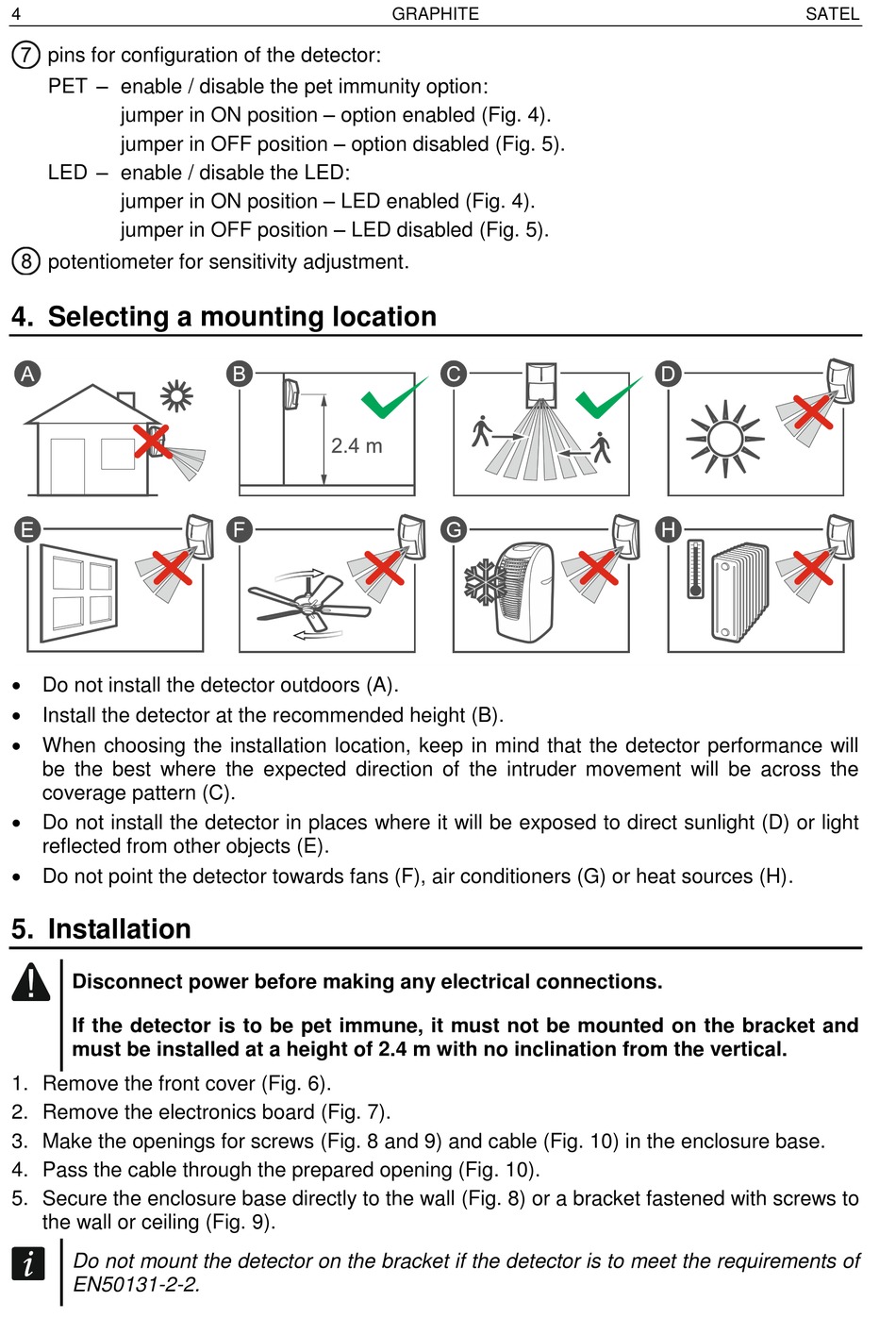

4. Selecting a mounting location

 Do not install the detector outdoors (A).
 Install the detector at the recommended height (B).
 When choosing the installation location, keep in mind that the detector performance will
be the best where the expected direction of the intruder movement will be across the
coverage pattern (C).
 Do not install the detector in places where it will be exposed to direct sunlight (D) or light
reflected from other objects (E).
 Do not point the detector towards fans (F), air conditioners (G) or heat sources (H).

5. Installation

Disconnect power before making any electrical connections.
If the detector is to be pet immune, it must not be mounted on the bracket and
must be installed at a height of 2.4 m with no inclination from the vertical.
1. Remove the front cover (Fig. 6).
2. Remove the electronics board (Fig. 7).
3. Make the openings for screws (Fig. 8 and 9) and cable (Fig. 10) in the enclosure base.
4. Pass the cable through the prepared opening (Fig. 10).
5. Secure the enclosure base directly to the wall (Fig. 8) or a bracket fastened with screws to
the wall or ceiling (Fig. 9).
Do not mount the detector on the bracket if the detector is to meet the requirements of
EN50131-2-2.
