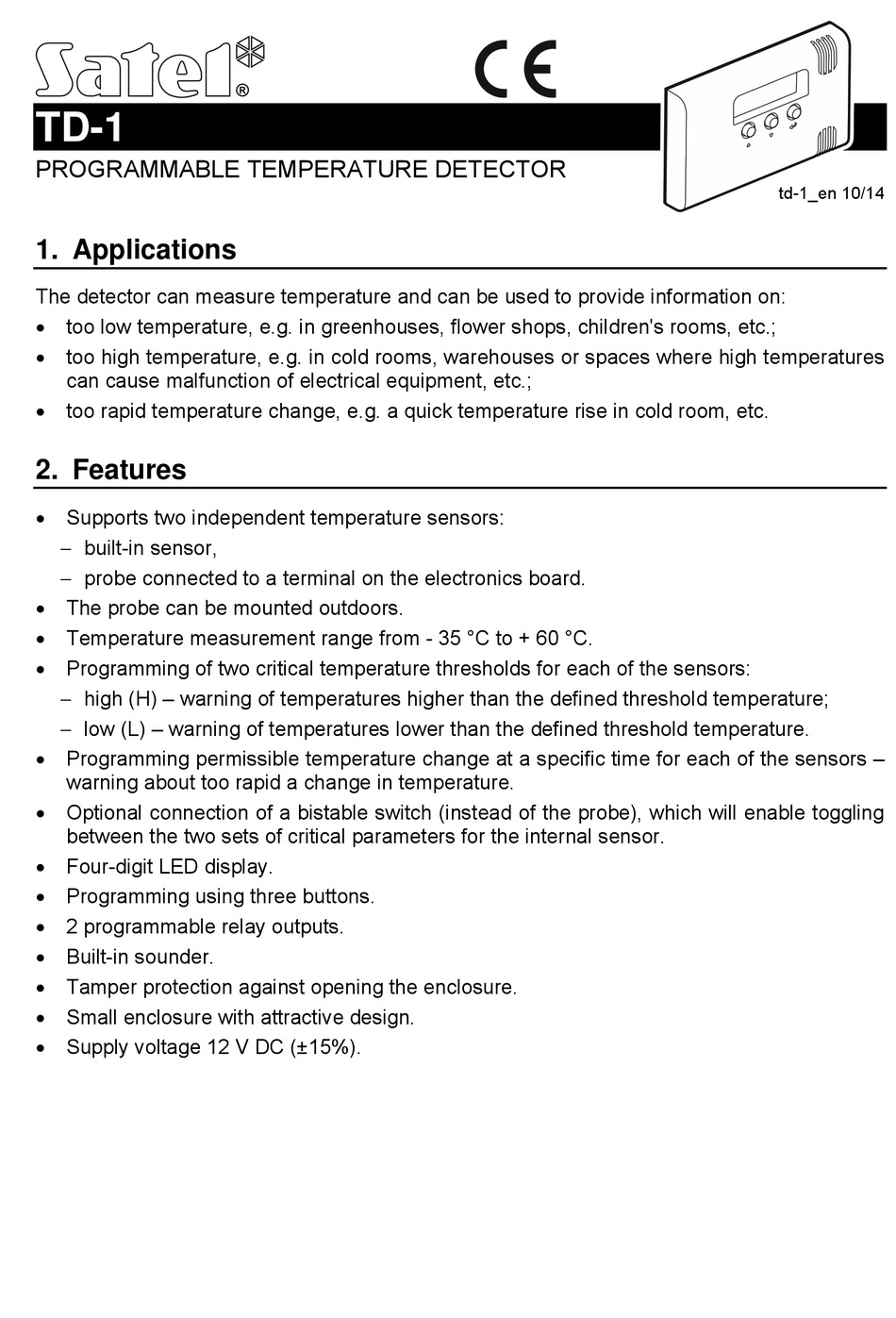

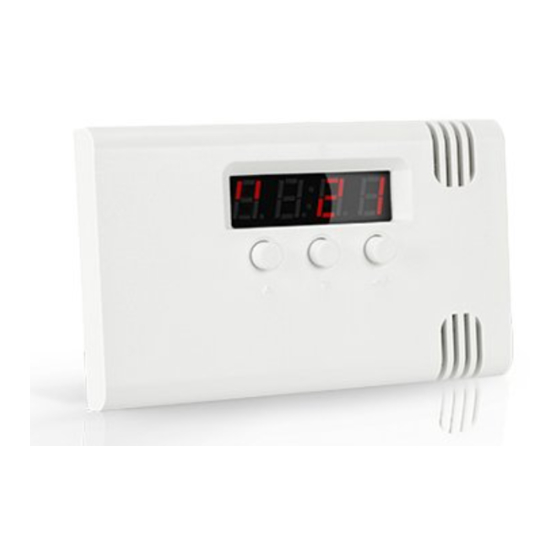

TD-1
PROGRAMMABLE TEMPERATURE DETECTOR

1. Applications

The detector can measure temperature and can be used to provide information on:
 too low temperature, e.g. in greenhouses, flower shops, children's rooms, etc.;
 too high temperature, e.g. in cold rooms, warehouses or spaces where high temperatures
can cause malfunction of electrical equipment, etc.;
 too rapid temperature change, e.g. a quick temperature rise in cold room, etc.

2. Features

 Supports two independent temperature sensors:
 built-in sensor,
 probe connected to a terminal on the electronics board.
 The probe can be mounted outdoors.
 Temperature measurement range from - 35 °C to + 60 °C.
 Programming of two critical temperature thresholds for each of the sensors:
 high (H) – warning of temperatures higher than the defined threshold temperature;
 low (L) – warning of temperatures lower than the defined threshold temperature.
 Programming permissible temperature change at a specific time for each of the sensors –
warning about too rapid a change in temperature.
 Optional connection of a bistable switch (instead of the probe), which will enable toggling
between the two sets of critical parameters for the internal sensor.
 Four-digit LED display.
 Programming using three buttons.
 2 programmable relay outputs.
 Built-in sounder.
 Tamper protection against opening the enclosure.
 Small enclosure with attractive design.
 Supply voltage 12 V DC (±15%).
td-1_en 10/14
