6.2
Mechanical drawing
6.3
Embedded STLINK-V3E
There are two different ways to program and debug the onboard STM32 MCU:
•
Using the embedded STLINK-V3E
•
Using an external debug tool connected to the CN4 MIPI10 connector.
The STLINK-V3E programming and debugging tool is integrated in the STM32G4 Nucleo-64 board.
UM2505 - Rev 2
Figure 6.

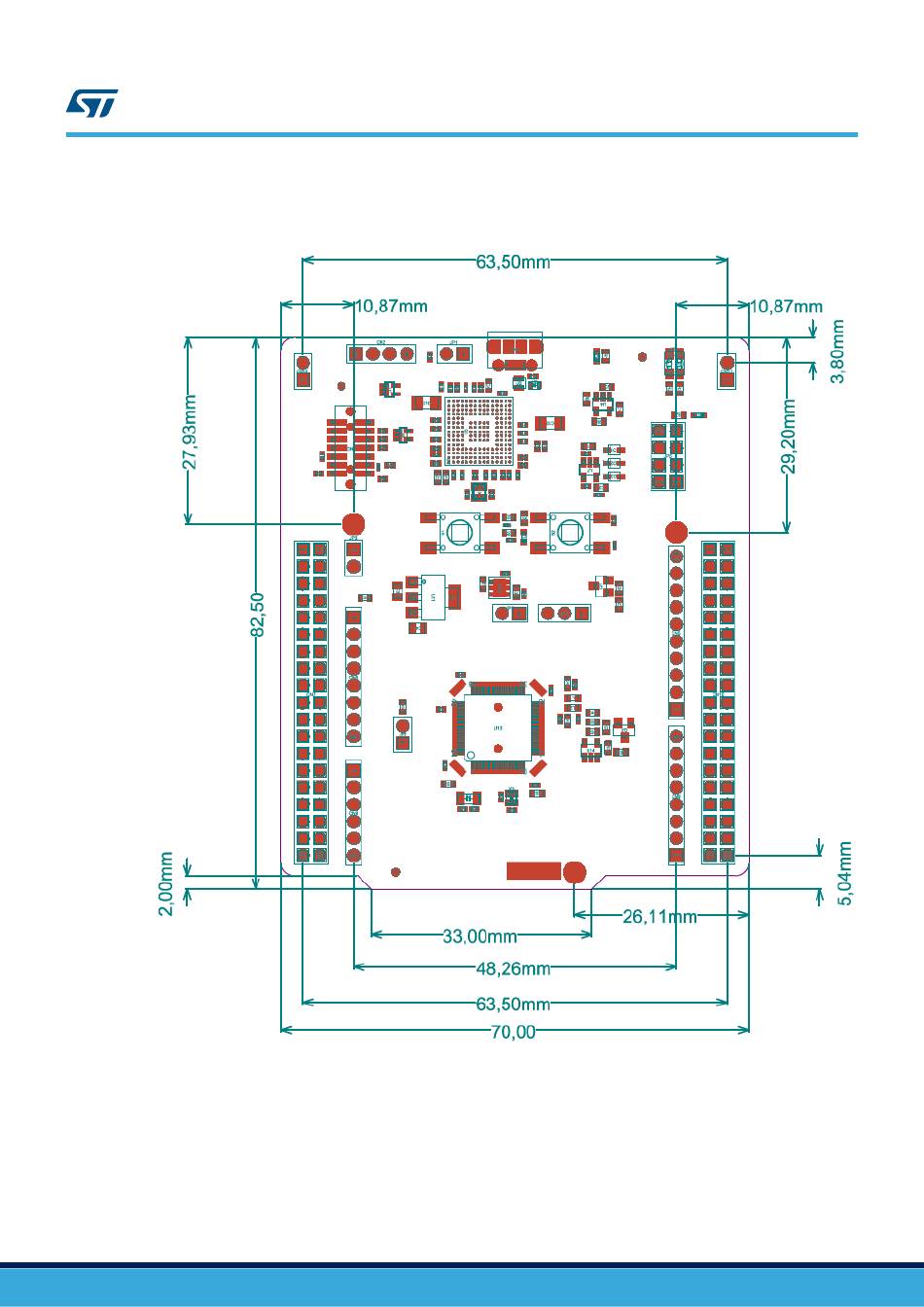

STM32G4 Nucleo 64 board mechanical drawing (in millimeter)
UM2505
Mechanical drawing
page 10/43
