UM1974
User manual
STM32 Nucleo-144 boards
Introduction
The STM32 Nucleo-144 boards (NUCLEO-F207ZG, NUCLEO-F303ZE, NUCLEO-F412ZG,
NUCLEO-F413ZH, NUCLEO-F429ZI, NUCLEO-F439ZI, NUCLEO-F446ZE,
NUCLEO-F722ZE, NUCLEO-F746ZG, NUCLEO-F756ZG, NUCLEO-F767ZI and
NUCLEO-H743ZI) provide an affordable and flexible way for users to try out new concepts
and build prototypes, by choosing from the various combinations of performance and power
consumption features provided by the STM32 microcontroller. The ST Zio connector, which
™
extends the Arduino
Uno V3 connectivity, and the ST morpho headers provide an easy
means of expanding the functionality of the Nucleo open development platform with a wide
choice of specialized shields. The STM32 Nucleo-144 boards do not require any separate
probe as they integrate the ST-LINK/V2-1 debugger/programmer. The STM32 Nucleo-144
boards come with the comprehensive free software libraries and examples available with
®
™
the STM32Cube MCU Package, as well as a direct access to the Arm
Mbed Enabled
on-
line resources at http://mbed.org.

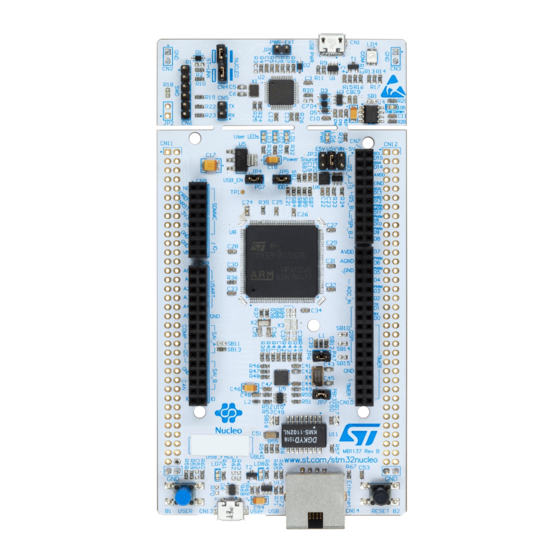

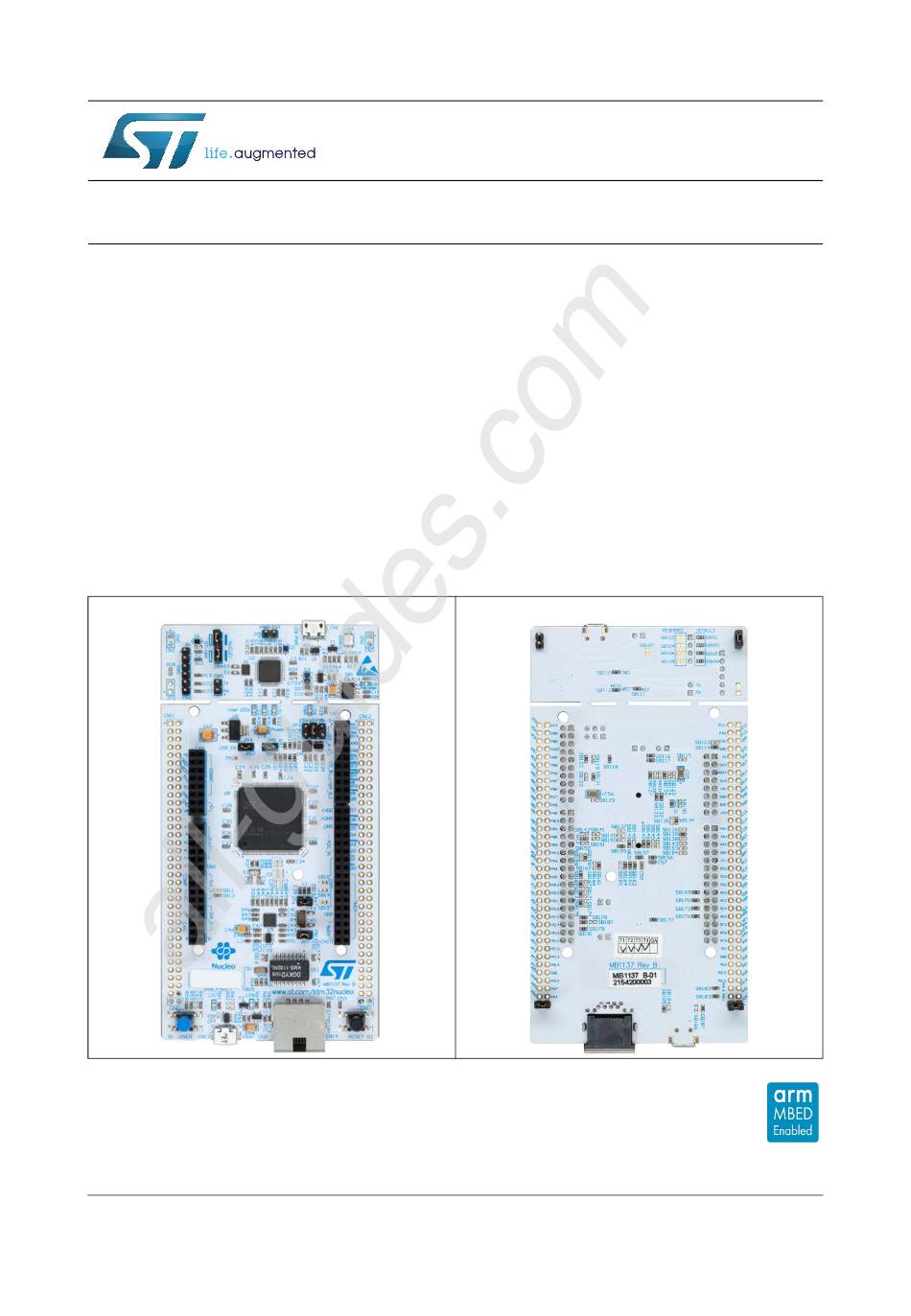

Figure 1. Nucleo-144 board (top view)

Figure 2. Nucleo-144 board (bottom view)

December 2017
DocID028599 Rev 7
1/82
www.st.com
1
