STM32 Nucleo-64-P board mechanical drawing

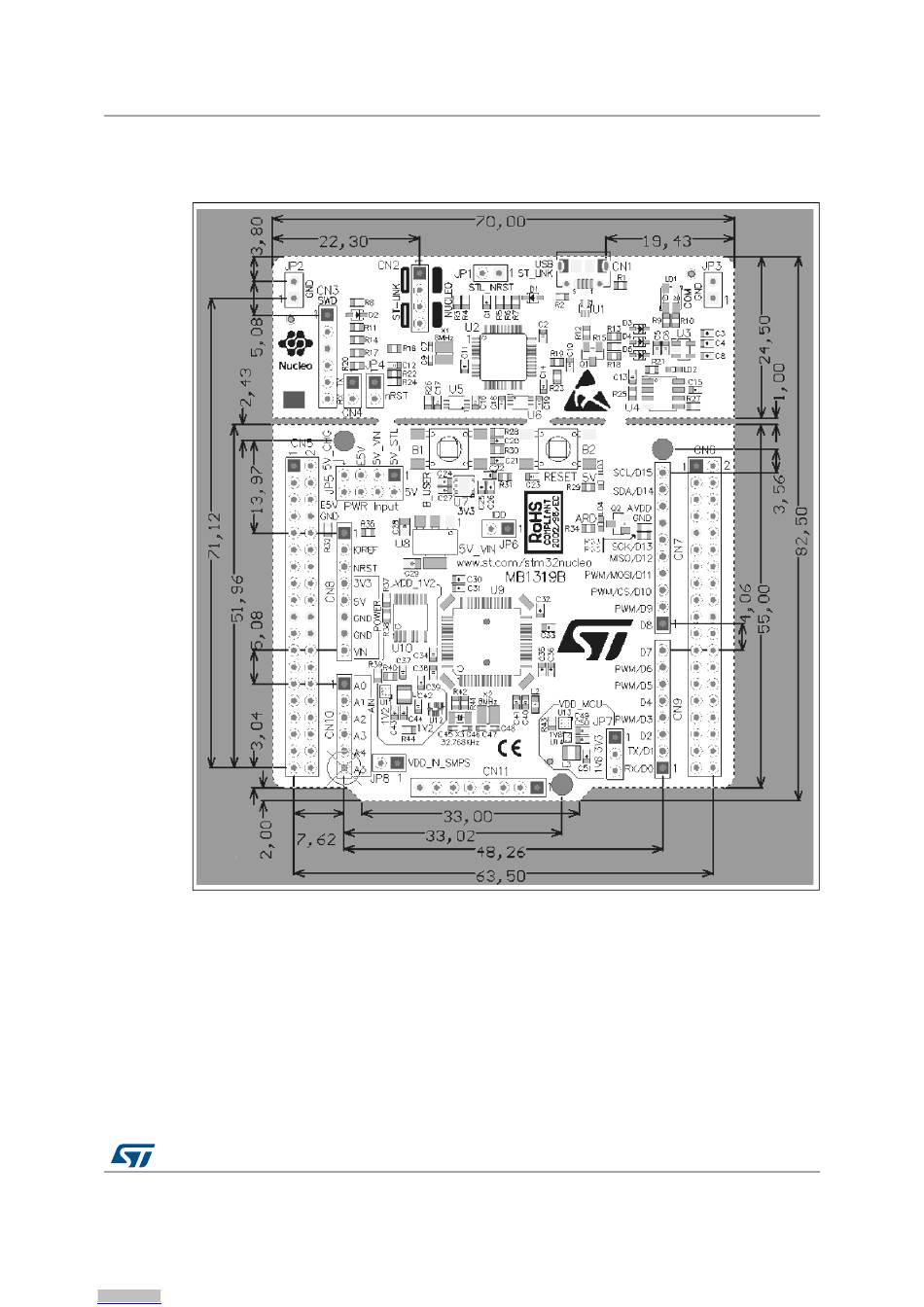

Figure 6. STM32 Nucleo-64 -P board mechanical drawing

Default board configuration

By default the STM32 Nucleo-64-P board is delivered with the external SMPS 1.1 V enabled
and V @3.3 V. It is possible to set the board for V
DD
user should check that the extension module and the external shields connected to the
Nucleo-64-P board are 1.8 V compatible.
The default jumper configuration and V
Hardware layout and configuration
@1.8 V. Before switching to 1.8 V, the
DD
@1.8 V setting is showed in
DD
