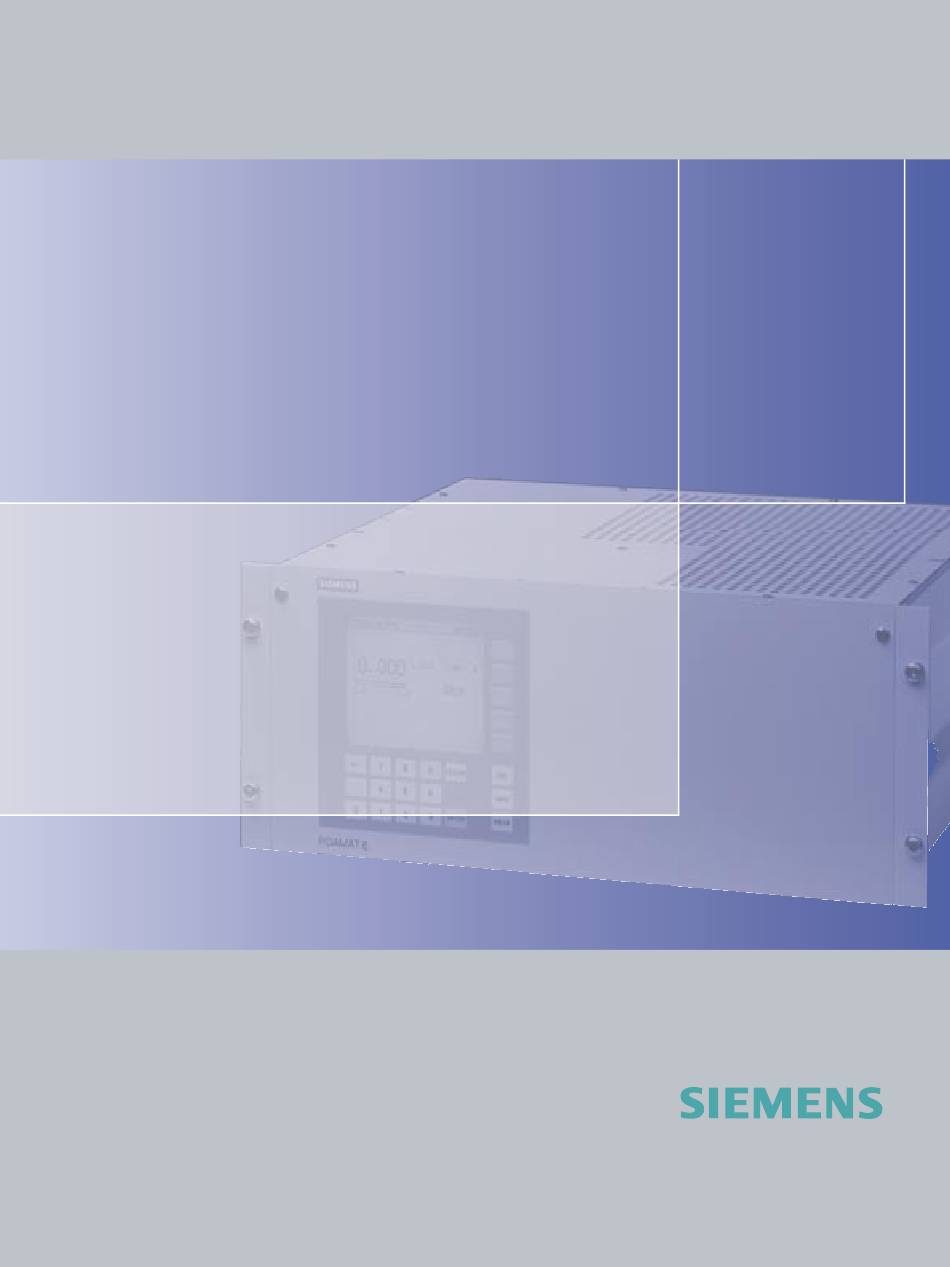

Operating instructions Edition 07/2006
FIDAMAT 6-G
Gas analyzer for measuring
total hydrocarbon concentrations
gas analysis
g
y

Advertisement

Table of Contents
loading

Related Manuals for Siemens FIDAMAT 6-G

Summary of Contents for Siemens FIDAMAT 6-G

  • Page 1 Operating instructions Edition 07/2006 FIDAMAT 6-G Gas analyzer for measuring total hydrocarbon concentrations gas analysis...
  • Page 3 General Information Description Installation and connection Commissioning Gas analyzer for determining the total hydrocarbon content Operation FIDAMAT 6-G Maintenance and service Operating instructions Technical data Dimensional drawings and circuit diagrams Spare parts and accessories Appendix List of Abbreviations/Acronyms 07/2006 A5E00478463...
  • Page 4 Trademarks All names identified by ® are registered trademarks of the Siemens AG. The remaining trademarks in this publication may be trademarks whose use by third parties for their own purposes could violate the rights of the owner.

  • Page 5: Table Of Contents

    2.1.2 Basic features ..........................2-2 Design ............................2-3 Control panel and communication ..................... 2-4 Mode of operation ........................2-6 Gas flow of the FIDAMAT 6-G ....................2-8 Communication .......................... 2-8 2.6.1 General information ........................2-8 2.6.2 ELAN interface ........................... 2-9 2.6.3...
  • Page 6 Commissioning ............................4-1 Safety information ........................4-1 Commissioning preparations...................... 4-2 4.2.1 General information for commissioning ..................4-2 4.2.2 Information for commissioning the FIDAMAT 6-G ..............4-3 4.2.3 Checking for leaks........................4-3 Commissioning and operation ....................4-4 4.3.1 General information........................4-4 4.3.2...
  • Page 7 List of maintenance requests ..................... 6-5 List of faults ..........................6-6 Other errors..........................6-8 Technical data ............................7-1 Technical data of the FIDAMAT 6 series ................... 7-1 Technical data of the FIDAMAT 6-G..................7-3 FIDAMAT 6-G Operating instructions, 07/2006, A5E00478463...
  • Page 8 Motherboard pin assignments....................8-1 Plug connector assignment of the optional board and PROFIBUS ........... 8-2 Dimension diagrams ........................8-3 Gas flow of the FIDAMAT 6-G ....................8-4 Spare parts and accessories ........................9-1 Ordering information ........................9-1 Spare parts..........................9-2 9.2.1...
  • Page 9 Spare parts in gas flow ......................9-5 Table A-1 Response factors according to DIN EN 12619 ................A-2 Table A-2 Response factors according to DIN EN 13526 ................A-2 Table A-3 Overview of operating functions....................A-3 FIDAMAT 6-G Operating instructions, 07/2006, A5E00478463...

  • Page 11: General Information

    IFor further information, or in case of problems, which are not covered in enough detail in this document, then please request the required information from your local or responsible Siemens regional office. Note In particular, before using the device for new applications in the area of research and development, we recommend first contacting us to discuss the application in question.

  • Page 12: How To Use This Manual

    This manual applies solely to the version of the device stated above. This version of the FIDAMAT 6 will be referred to in the following as the FIDAMAT 6-G. However, where features or procedures are described that apply to all versions of the FIDAMAT 6 series, the standard name FIDAMAT 6 will be used.

  • Page 13: Delivery Information

    When this product is used beyond the scope of these standards and regulations, the valid standards and regulations of the country of the operating company apply. See also Technical data of the FIDAMAT 6 series (Page 7-1) Technical data of the FIDAMAT 6-G (Page 7-3) FIDAMAT 6-G Operating instructions, 07/2006, A5E00478463...

  • Page 15: Description

    The current strength resulting from this is a measure for the number of hydrocarbon atoms. The FIDAMAT 6-G gas analyzer is characterized by its use for measuring hydrocarbons in pure and ultra-pure gases.

  • Page 16: Basic Features

    • Menu and interface are compatible to the rest of the devices of series 6 (CALOMAT 6, OXYMAT 6, ULTRAMAT 6, OXYMAT 64). • Custom made adapted device versions, e.g.: – Customer acceptance – Device IDs – Drift recording FIDAMAT 6-G Operating instructions, 07/2006, A5E00478463...

  • Page 17: Design

    Used materials Gas path Material Piping Stainless steel 1.4571 Gas input Stainless steel 1.4571 Gaskets Graphite Sample gas restrictor Quartz Auxiliary gas restrictors Stainless steel 1.4571 Detector Nozzle Quartz FID housing Stainless steel 1.4571 FIDAMAT 6-G Operating instructions, 07/2006, A5E00478463...

  • Page 18: Control Panel And Communication

    • Menu assisted operation for parameterization, test functions and calibration • Operating help in plain text • Graphical display of the concentration curve; time intervals can be parameterized • Bi-lingual operating software: – German/English – English/Spanish – French/English – Spanish/English – Italian/English FIDAMAT 6-G Operating instructions, 07/2006, A5E00478463...
  • Page 19 • Six relay outputs, freely configurable, e.g. for: – Fault – Maintenance request – Limit alarms – External solenoid valves • Can be extended by eight binary inputs and eight relay outputs for automatic calibration with max. four test gases FIDAMAT 6-G Operating instructions, 07/2006, A5E00478463...

  • Page 20: Mode Of Operation

    • Linked in networks via PROFIBUS-DP/-PA interface • SIPROM GA software as servicing and maintenance tool (for ELAN) Mode of operation Figure 2-2 Mode of operation Flame Quartz nozzle Combustion air Sample gas Combustion gas (hydrogen) Measuring electrode Amplifier FIDAMAT 6-G Operating instructions, 07/2006, A5E00478463...
  • Page 21 The sample gases must be fed to the device dust-free. To avoid condensation, in most applications a gas preparation adapted to the measuring task is necessary. See also Warm-up phase and operating states (Page 4-5) List of maintenance requests (Page 6-5) List of faults (Page 6-6) FIDAMAT 6-G Operating instructions, 07/2006, A5E00478463...

  • Page 22: Gas Flow Of The Fidamat 6-G

    Description 2.5 Gas flow of the FIDAMAT 6-G Gas flow of the FIDAMAT 6-G Figure 2-3 Gas flow FIDAMAT 6-G Communication 2.6.1 General information All gas analyzers of Series 6, ULTRAMAT 6, OXYMAT 6/ 61, CALOMAT 6, ULTRAMAT 23 as well as FIDAMAT 6, offer the following communication options: •...

  • Page 23: Elan Interface

    Computer RS-485/RS-232 converter with connection cable RS 485 and RS 232 RS 485 bus connector with bridge Analyzer RS 485 cable RS 485 bus connector RS 485 network 9-pin SUB-D connector Optional: RS-485 repeater FIDAMAT 6-G Operating instructions, 07/2006, A5E00478463...

  • Page 24: Siprom Ga

    • Comprehensive diagnostic information • Remote calibration • Online help • Cyclic storage of measured values • Status on hard disk and export to commercially available user programs • Download of new software FIDAMAT 6-G 2-10 Operating instructions, 07/2006, A5E00478463...

  • Page 25: Profibus Dp/-Pa

    2.6.4 PROFIBUS DP/-PA PROFIBUS DP/-PA is the leading fieldbus on the market. All Siemens gas analyzers with an optional - also retrofittable - plug-in card are profibus-compatible and fulfill the binding "Device profiles for analysis devices" defined by the PNO (PROFIBUS user organization).
  • Page 26 All gas analyzers of Series 6 (ULTRAMAT 6, OXYMAT 6/ 61, CALOMAT 6 and FIDAMAT 6 as well as ULTRAMAT 23) are profibus-compatible with an optional plug-in card, which can also be retrofit. FIDAMAT 6-G 2-12 Operating instructions, 07/2006, A5E00478463...
  • Page 27 Description 2.6 Communication Figure 2-5 Typical structure of a PROFIBUS system See also Spare parts list (Page 9-2) FIDAMAT 6-G 2-13 Operating instructions, 07/2006, A5E00478463...

  • Page 29: Installation And Connection

    The exhaust gas lines must be made of a sample gas-resistant material (see chapter "Set-up"). Failure to comply with these regulations can result in serious symptoms of poisoning, which could possibly even lead to death. See also b) Analyzer section (Page 2-3) FIDAMAT 6-G Operating instructions, 07/2006, A5E00478463...
  • Page 30 However, this does not apply to toxic or corrosive gases! In this regard the maximum allowable workplace concentration figures must be observed. With such gases, flushing must always be carried out after work is completed. FIDAMAT 6-G Operating instructions, 07/2006, A5E00478463...

  • Page 31: Installation Requirements

    The line length of the analog output depends on the load. Caution When wiring all electric lines, keep the heat radiation of the device in mind. Keep a distance >2 cm away from the device housing. FIDAMAT 6-G Operating instructions, 07/2006, A5E00478463...
  • Page 32 In order to guarantee the leak-tightness of the containment system, carry out leak tests regularly. If a leak is detected, you must eliminate the cause before you can start measuring again. A possible measure to take for this is to exchange gaskets. FIDAMAT 6-G Operating instructions, 07/2006, A5E00478463...

  • Page 33: Installation Requirements For The Fidamat 6-G

    The FIDAMAT 6 has two internal pressure sensors for measuring the sample gas pressure (= combustion air pressure) and the combustion gas pressure. See also Gas flow of the FIDAMAT 6-G (Page 2-8) Gas and electric connections (Page 3-6) Checking for leaks (Page 4-3)

  • Page 34: Gas And Electric Connections

    Gas preparation Requirements to purity of operating and test gases The Fidamat 6-G is often used to measure hydrocarbons with a concentration of less than 1 ppm. For such measurements, it is important that the operating gases used (hydrogen, combustion air and zero gas) are very pure. The higher the purity of the operating gases, the lower the zero current and thus the noise that determines the lower detection limit.

  • Page 35: Electrical Connection

    Installation and connection 3.4 Electrical connection Sample gas The sample gas is fed to the FIDAMAT 6-G unheated through a solenoid valve. Note The sample gases must be fed to the device dust-free. To avoid condensation, in most applications a gas preparation adapted to the measuring task is necessary.

  • Page 36: Connection Of The Signal Lines

    The core cross-section must be ≥ 0.5 mm². We recommend cables of type JE-LiYCY...BD. The cable length of the analog output depends on the load. See also Motherboard pin assignments (Page 3-9) Plug connector assignment of the optional board and PROFIBUS (Page 3-10) FIDAMAT 6-G Operating instructions, 07/2006, A5E00478463...

  • Page 37: Circuit Diagrams (Pin Assignment)

    Installation and connection 3.4 Electrical connection 3.4.3 Circuit diagrams (pin assignment) 3.4.3.1 Motherboard pin assignments Figure 3-2 FIDAMAT 6, 19“ rack unit, motherboard pin assignments FIDAMAT 6-G Operating instructions, 07/2006, A5E00478463...

  • Page 38: Plug Connector Assignment Of The Optional Board And Profibus

    Installation and connection 3.4 Electrical connection 3.4.3.2 Plug connector assignment of the optional board and PROFIBUS Figure 3-3 FIDAMAT 6, 19” rack unit, pin assignments on the optional board and PROFIBUS plug connector FIDAMAT 6-G 3-10 Operating instructions, 07/2006, A5E00478463...

  • Page 39: Elan Interface Cable

    For a conductor length longer than 500 m or high interference, we recommend that a repeater be installed. For additional information, please refer to the ELAN interface description. Order numbers: • C79000-B5200-C176 German • C79000-B5276-C176 English FIDAMAT 6-G 3-11 Operating instructions, 07/2006, A5E00478463...
  • Page 40 Installation and connection 3.4 Electrical connection Figure 3-4 Pin assignment See also ELAN configuration (function 73) (Page 5-49) FIDAMAT 6-G 3-12 Operating instructions, 07/2006, A5E00478463...

  • Page 41: Commissioning

    FIDAMAT 6 there is no need to flush the housing provided it has been ensured that there is a natural exchange of air from the environment. This applies particularly when the unit is installed in cabinets. FIDAMAT 6-G Operating instructions, 07/2006, A5E00478463...

  • Page 42: Commissioning Preparations

    During operation, make sure that the permissible ambient temperature of 5°C to 45°C is kept. See also Connection of the signal lines (Page 3-8) Technical data of the FIDAMAT 6 series (Page 7-1) Technical data of the FIDAMAT 6-G (Page 7-3) FIDAMAT 6-G Operating instructions, 07/2006, A5E00478463...

  • Page 43: Information For Commissioning The Fidamat 6-G

    Commissioning 4.2 Commissioning preparations 4.2.2 Information for commissioning the FIDAMAT 6-G Gas preparation Observe the information under "Gas preparation" here. See also Gas preparation (Page 3-6) 4.2.3 Checking for leaks Checking for leaks After every maintenance task which has to do with the flame ionization detector (FID) or the gas path, you must check for leaks in the device.

  • Page 44: Commissioning And Operation

    The current operating state is displayed in the bottom line. See also Control panel and communication (Page 2-4) Measured value display (Page 5-4) FIDAMAT 6-G Operating instructions, 07/2006, A5E00478463...

  • Page 45: Warm-Up Phase And Operating States

    4.3.2 Warm-up phase and operating states Warm-up phase The FIDAMAT 6-G requires a warm-up phase of approx. 1 hour from its cold state. Note During the warm-up phase, you may not change the pressures! The following sequence only applies if you haven't activated any other start-up state in...
  • Page 46 Commissioning 4.3 Commissioning and operation Device operating states Figure 4-1 Operating states of the FIDAMAT 6-G FIDAMAT 6-G Operating instructions, 07/2006, A5E00478463...

  • Page 47: State Changes Due To Fault / Maintenance Request

    Warm-up | Standby | Measure | Pause Pause S13: Hardware / mains frequency Warm-up | Standby | Measure | Pause Pause S14: Measured value > - - - Characteristic full-scale value S15: Calibration terminated - - - FIDAMAT 6-G Operating instructions, 07/2006, A5E00478463...

  • Page 48: Setting The Operating Pressures

    FIDAMAT 6_G switches to the "standby" operating state, which can be seen in the bottom line of the measured value display. You can return to the measured value display by pressing the [MEAS] or [ESC] key. FIDAMAT 6-G Operating instructions, 07/2006, A5E00478463...

  • Page 49: Measuring Range

    500 – 1000 hPa rel. 1. Connect the above-named gases to the rear of the device at the marked gas connections. Their pressures must be able to be set outside the FIDAMAT 6-G and should be around 1000 hPa. 2. Now select function 62 "Set ext.pressure". With this function, you can switch the solenoid valves built into the FIDAMAT 6-G for the gases on and off individually.
  • Page 50 See also Setting setpoints (function 22) (Page 5-15) Define measuring ranges (function 41) (Page 5-26) FIDAMAT 6-G 4-10 Operating instructions, 07/2006, A5E00478463...

  • Page 51: General Information On Calibration

    Span calibration (function 21) (Page 5-13) Setting setpoints (function 22) (Page 5-15) Total / single calibration (function 23) (Page 5-15) Autocal (function 24) (Page 5-16) Technical data of the FIDAMAT 6-G (Page 7-3) FIDAMAT 6-G 4-11 Operating instructions, 07/2006, A5E00478463...

  • Page 52: Calibration Examples

    90 ppm C1 give and span sens.: 30 ppm C3 30 ppm C3 Calibrate zero Calibrate span Note The operation and input options of the named functions are described in detail in "Operation". FIDAMAT 6-G 4-12 Operating instructions, 07/2006, A5E00478463...

  • Page 53: Operation

    INFO MEAS ENTER FIDAMAT 6 Figure 5-1 Measured value display and control panel Bottom line (displays the current operating state) Measuring range start-of-scale and full-scale value Limit marking Analog display of the measured value FIDAMAT 6-G Operating instructions, 07/2006, A5E00478463...

  • Page 54: Table 5-1 Button Meanings

    Confirm every entered value, even the last of several values in a function, before exiting the function with [ENTER]! With the [CLEAR] button, you can clear a number which you have begun to enter. The cursor then jumps back to the first position of the input field. FIDAMAT 6-G Operating instructions, 07/2006, A5E00478463...
  • Page 55 Settings and input can be • entered operation level. Functional check active • In this mode, you can parameterize/calibrate the Measured value can be • device. influenced. FIDAMAT 6-G Operating instructions, 07/2006, A5E00478463...

  • Page 56: Measured Value Display

    The "Measured value display" is not an operating state and not an operating mode, but is simply displayed. It must not be confused with the "measure" operating state (also "measuring state") of the device! FIDAMAT 6-G Operating instructions, 07/2006, A5E00478463...

  • Page 57: Entering A Submenu

    Entering a submenu The main menu consists of five submenus. Main menu Analyzer status Calibration Measuring ranges Parameters Configuration Figure 5-4 Main menu Some of these are protected against unauthorized access by various level codes. FIDAMAT 6-G Operating instructions, 07/2006, A5E00478463...
  • Page 58 Decoding also activates the measured value memory, as far as you have parameterized it with function 77. The coding status of the device can be read in the status line of the measured value display as a symbol "■ CODE" for "coded" or "□ CODE" for "decoded". FIDAMAT 6-G Operating instructions, 07/2006, A5E00478463...

  • Page 59: Return To Coded/Decoded Display Mode

    2. Press the softkey of the component with the arrow ►. If the desired function is protected by a code, you will be asked to input the code. See also Overview of operating functions (Page 5-8) FIDAMAT 6-G Operating instructions, 07/2006, A5E00478463...

  • Page 60: Overview Of Operating Functions

    Electric time constants Limits On/off functions Status messages Graphical representation of measured values Measured value display LCD contrast Ignite flame Date/time Measuring point switching Logbook setting Switch internal valves Set ext. pressure (FIDAMAT 6-G only) FIDAMAT 6-G Operating instructions, 07/2006, A5E00478463...
  • Page 61 Language selection Interference gas correction Switch valves Linear temperature compensation Error on/off PROFIBUS configuration (only with optional board) Start-up state (operating states) Pressure values Units Factory settings See also Fast function selection (Page 5-7) FIDAMAT 6-G Operating instructions, 07/2006, A5E00478463...

  • Page 62: Diagnosis

    Indication of date of manufacture and device serial number • Object version: Indication of the hardware design of the device • Software version / date: Version of the motherboard software; date, version of the boot software of the motherboard FIDAMAT 6-G 5-10 Operating instructions, 07/2006, A5E00478463...

  • Page 63: Diagnostic Values (Function 2)

    See also Logbook settings (function 60) (Page 5-36) Error on/off (function 87) (Page 5-60) List of maintenance requests (Page 6-5) List of faults (Page 6-6) FIDAMAT 6-G 5-11 Operating instructions, 07/2006, A5E00478463...

  • Page 64: Display Measuring Ranges (Function 4)

    If you use, for example, propane in synthetic air instead, the measurement is falsified by the response factor of methane with respect to propane and by the oxygen error. See also Response factors (Page A-2) FIDAMAT 6-G 5-12 Operating instructions, 07/2006, A5E00478463...
  • Page 65 Electric time constants (function 50) (Page 5-27) 5.8.3 Span calibration (function 21) Single calibration ("measure" operating state required) 21 Span. Calib. Calibrate MR 1 Calibrate MR 2 Calibrate MR 3 Calibrate MR 4 Figure 5-9 Carry out single calibration FIDAMAT 6-G 5-13 Operating instructions, 07/2006, A5E00478463...

  • Page 66: Setting Setpoints (Function 22)

    If you should incorrectly calibrate by mistake (e.g. with the wrong test gas), reload the original calibration with the "CANCEL" softkey. See also Setting setpoints (function 22) (Page 5-15) Total / single calibration (function 23) (Page 5-15) Define measuring ranges (function 41) (Page 5-26) FIDAMAT 6-G 5-14 Operating instructions, 07/2006, A5E00478463...
  • Page 67 Total calibration means that you adjust one "leading measuring range" and all other measuring ranges are calibrated via the switching ratio. If the total calibration, as shown on the function screen, is not activated, you must calibrate every measuring range individually. FIDAMAT 6-G 5-15 Operating instructions, 07/2006, A5E00478463...

  • Page 68: Autocal (Function 24)

    Autocal Check (automatic check that the set calibration tolerances are complied with, without calibration). The settings for "Autocal Check" (4th subfunction) are only with reference to the check of the calibration tolerances without calibration. FIDAMAT 6-G 5-16 Operating instructions, 07/2006, A5E00478463...
  • Page 69 . With this, all calibration data determined up to that point are discarded and the calibration data used before Autocal was started continue to be used (zero and span). Canceling has no influence on the time cycle. All valid calibration processes are retained. FIDAMAT 6-G 5-17 Operating instructions, 07/2006, A5E00478463...
  • Page 70 3. Flushing with sample gas: 8 minutes 4. Sample gas intermediate operation: 30 minutes 5. Calibration with test gas 2, after 8 minutes of flushing 6. Calibration with test gas 3, after 8 minutes of flushing FIDAMAT 6-G 5-18 Operating instructions, 07/2006, A5E00478463...
  • Page 71 9. Short-term signal contact in order to be able to start Autocal on another device or channel. Note The FIDAMAT 6-G has a test gas connection and a zero gas connection. These can be controlled via the relay outputs of the device. Further test gases can be included via external valves.
  • Page 72 Zero gas 2 Test gas 1 Test gas 2 Test gas 3 Test gas 4 Flush sample gas Sample gas intermediate operation Signal contact Note Zero gas 2 is not used with the FIDAMAT 6. FIDAMAT 6-G 5-20 Operating instructions, 07/2006, A5E00478463...
  • Page 73 > 1 in the line Note As long as Autocal is activated (Autocal ■), access to functions 20 and 21 is blocked. If you activate these functions anyway, a corresponding message appears on the display. FIDAMAT 6-G 5-21 Operating instructions, 07/2006, A5E00478463...
  • Page 74 2. The device executes the sequence as parameterized in the subfunction sequence" See also Warm-up phase and operating states (Page 4-5) Relay allocation (function 71) (Page 5-40) Binary inputs (function 72) (Page 5-42) FIDAMAT 6-G 5-22 Operating instructions, 07/2006, A5E00478463...

  • Page 75: Measuring Ranges

    • The measuring spans must be wider. • The measuring ranges must "border on" each other or overlap. Measuring range types The permissible measuring range constellations result which are shown in the figure below: FIDAMAT 6-G 5-23 Operating instructions, 07/2006, A5E00478463...
  • Page 76 Measuring range type A start of measuring range end of measuring range lower switch point: Select the smaller measuring range Upper switch point: Select the greater measuring range The following applies for measuring range switching: FIDAMAT 6-G 5-24 Operating instructions, 07/2006, A5E00478463...
  • Page 77 Select the smaller measuring range Upper switch point: Select the greater measuring range The following applies for measuring range switching: Figure 5-26 Measuring range switch, type B FIDAMAT 6-G 5-25 Operating instructions, 07/2006, A5E00478463...

  • Page 78: Define Measuring Ranges (Function 41)

    If the message "Measuring ranges not plausible!" appears, this means that it isn't possible for there to be an automatic measuring range switch. If the start-of-scale and full-scale values are "0", the measuring range is deactivated. FIDAMAT 6-G 5-26 Operating instructions, 07/2006, A5E00478463...

  • Page 79: Parameters

    % of the smallest measuring range span. It attenuates small measurement changes (e.g. noise) on the one hand, but becomes ineffective immediately when the measured value exceeds the effective interval. In this case, the outer time constant "ta" attenuates the measured value. FIDAMAT 6-G 5-27 Operating instructions, 07/2006, A5E00478463...

  • Page 80: Limits (Function 51)

    "Limit…" You can change to the next limit with the fifth softkey ( See also Logbook (function 3) (Page 5-11) On/off functions (function 52) (Page 5-29) Relay allocation (function 71) (Page 5-40) FIDAMAT 6-G 5-28 Operating instructions, 07/2006, A5E00478463...

  • Page 81: On/Off Functions (Function 52)

    Limit monitoring 3 Limit monitoring 4 Suppress negative measured values for display Block logbook Suppress negative measured values Fault/Maint. A/ CTRL/ NAMUR Measured value memory Flag if tolerance is exceeded Temperature recompensation of zero point FIDAMAT 6-G 5-29 Operating instructions, 07/2006, A5E00478463...

  • Page 82: Status Messages (Function 53)

    This is the case: • During the warm-up phase • After input of the code (also change into "operating mode") • During automatic calibration (Autocal) or remote calibration FIDAMAT 6-G 5-30 Operating instructions, 07/2006, A5E00478463...
  • Page 83 – also alternating – with the display of the device status. See also Select measuring ranges (function 40) (Page 5-23) Limits (function 51) (Page 5-28) Analog output memory (function 77) (Page 5-53) FIDAMAT 6-G 5-31 Operating instructions, 07/2006, A5E00478463...

  • Page 84: Graphical Representation Of Measured Values (Function 54)

    - O . 7 O 1 2 3 4 5 6 7 8 9 O Figure 5-34 Measured value, graphically The most current measured value is on the time axis at the left at t=0. FIDAMAT 6-G 5-32 Operating instructions, 07/2006, A5E00478463...

  • Page 85: Measured Value Display (Function 55)

    With the softkeys 3 and 4, you can choose the number of total digits and the maximum number of decimal digits. Observe that a maximum of five digits can be displayed (decimal point also counts as a digit). FIDAMAT 6-G 5-33 Operating instructions, 07/2006, A5E00478463...

  • Page 86: Lcd Contrast (Function 56)

    Press the second softkey to activate ("■") or deactivate ("□") the ignition. The display shows the temperature of the flame and the measured current. When the flame is burning, "Flame burning" appears on the display. If it goes out, this message disappears. FIDAMAT 6-G 5-34 Operating instructions, 07/2006, A5E00478463...

  • Page 87: Date/Time (Function 58)

    Press the third softkey , in order to accept the set data. These then appear at the bottom edge of the display. See also Logbook (function 3) (Page 5-11) Logbook settings (function 60) (Page 5-36) FIDAMAT 6-G 5-35 Operating instructions, 07/2006, A5E00478463...

  • Page 88: Measuring Point Switching (Function 59)

    Configure the signal relay, also with function 71. See also Relay allocation (function 71) (Page 5-40) 5.10.12 Logbook settings (function 60) Figure 5-41 Parameterizing the logbook With this function, you delete or block logbook entries. FIDAMAT 6-G 5-36 Operating instructions, 07/2006, A5E00478463...

  • Page 89: Internal Valves (Function 61)

    : O hPa Figure 5-43 Set external pressure With function 62, you put the device into the "Measure" operating state, by activating the sample, zero or test gas. FIDAMAT 6-G 5-37 Operating instructions, 07/2006, A5E00478463...

  • Page 90: Configuration

    Press the fifth softkey ("...continue") to branch to further configuration functions. 5.11.2 Analog output (function 70) 7O Analog outputs O – 2O mA output inverted Suppress negative measured values Figure 5-45 Configuring the analog output FIDAMAT 6-G 5-38 Operating instructions, 07/2006, A5E00478463...
  • Page 91 2 – 20 4 – 20 4 – 20 (NAMUR) 20,5 21,5 Note If the electronics are defective, it is possible that the analog output gets stuck at approx. -1 mA or approx. +24 mA. FIDAMAT 6-G 5-39 Operating instructions, 07/2006, A5E00478463...

  • Page 92: Relay Allocation (Function 71)

    Signal when: (CTRL) (e.g.: when changing deactivated Device is decoded, the "operating mode", warm-up phase (max. 2 in the warm-up phase, h), calibration running when Autocal is (Autocal) running, when calibration is running) FIDAMAT 6-G 5-40 Operating instructions, 07/2006, A5E00478463...
  • Page 93 Combustion air Combustion air valve is Valve actuation open See also List of faults (Page 6-6) Motherboard pin assignments (Page 8-1) Maintenance request and fault message (Page 6-3) List of maintenance requests (Page 6-5) FIDAMAT 6-G 5-41 Operating instructions, 07/2006, A5E00478463...

  • Page 94: Binary Inputs (Function 72)

    Assign here every input of the activation functions listed below as you like, whereby every function may only be assigned once. The connection assignments for the individual inputs can be found in the section "Electric Connection". No binary input was pre-assigned in the factory. FIDAMAT 6-G 5-42 Operating instructions, 07/2006, A5E00478463...

  • Page 95: Table 5-8 Binary Input Activation Functions

    Effective activation only possible in "measure" operating state! Relay must be configured for zero gas. After activation, the device changes from the operating state "measure" to "calibration". See also "Example - binary inputs" FIDAMAT 6-G 5-43 Operating instructions, 07/2006, A5E00478463...

  • Page 96: Example - Binary Inputs

    Note: Effective activation only possible in "measure" and "calibration" operating state! With the FIDAMAT 6-G, also from "Standby", whereby the device requires a short time to build up pressure. Relay must be configured for sample gas. Before the sample gas valve opens, the other valves are closed.
  • Page 97 The device opens the zero gas valve and closes the sample gas valve (sample gas valve only available with FIDAMAT 6-G). At the same time, the device switches over into the "calibration" operating state (shown in the measured value display with "■ CAL") and activates the "functional check"...
  • Page 98 (function 71). The number of this test gas must correspond with the number of the measuring range to be calibrated. 3. Assign one binary input with the "test gas" function (function 72). 4. Assign one binary input with the "span calibration" function for adjusting the span. FIDAMAT 6-G 5-46 Operating instructions, 07/2006, A5E00478463...
  • Page 99 Via the binary input, the corresponding relay is activated such that now the test gas valve opens and the sample gas valve closes (FIDAMAT 6-G only). At the same time, the device switches over into the "calibration state" (shown in the measured value display with "■...
  • Page 100 Calibration of the span via binary inputs See also Warm-up phase and operating states (Page 4-5) Select measuring ranges (function 40) (Page 5-23) Relay allocation (function 71) (Page 5-40) Binary inputs (function 72) (Page 5-42) FIDAMAT 6-G 5-48 Operating instructions, 07/2006, A5E00478463...

  • Page 101: Elan Configuration (Function 73)

    ELAN network, however, the function should only be switched on as needed! Further ELAN details can be found in the ELAN interface description: • (C79000-B5200-C176 German) • (C79000-B5276-C176 English). See also ELAN interface cable (Page 3-11) FIDAMAT 6-G 5-49 Operating instructions, 07/2006, A5E00478463...

  • Page 102: Reset (Function 74)

    , to load the last saved user data. These functions are important when the device is undergoing repairs or maintenance work, or, for example, new parameterization should be tried out. Press softkey 3 to re-establish the factory settings. FIDAMAT 6-G 5-50 Operating instructions, 07/2006, A5E00478463...
  • Page 103 If you neglect to do this, there is a danger that a previous (unwanted) configuration is loaded by "Load user data" (function 75). The following figure contains an overview of the interaction between the various memory modules. Figure 5-54 Memory modules FIDAMAT 6-G 5-51 Operating instructions, 07/2006, A5E00478463...

  • Page 104: Suppression Of Short-Term Noise Signals (Function 76)

    When this function is activated, the settings of function 50 ("Electric time constants) must be taken into account, since these are executed first. See also Electric time constants (function 50) (Page 5-27) Relay allocation (function 71) (Page 5-40) FIDAMAT 6-G 5-52 Operating instructions, 07/2006, A5E00478463...

  • Page 105: Analog Output Memory (Function 77)

    Signal tolerance voilation. Figure 5-57 Setting the calibration tolerances With this function, you define the calibration tolerances. "Flag if tolerance is exceeded" With softkey 3 , you activate or deactivate the tolerance monitoring. FIDAMAT 6-G 5-53 Operating instructions, 07/2006, A5E00478463...
  • Page 106 Now, if the zero point / span deviates by more than the parameterized value as compared to the last executed calibration, and if "Flag if tolerance is exceeded" is activated, the corresponding relay signalizes a maintenance request. See also Total / single calibration (function 23) (Page 5-15) FIDAMAT 6-G 5-54 Operating instructions, 07/2006, A5E00478463...

  • Page 107: Change Codes (Function 79)

    After pressing the [INFO] key, a message is displayed in plain text. The [MEAS] and [ESC] keys retain their "return" function. FIDAMAT 6-G 5-55 Operating instructions, 07/2006, A5E00478463...

  • Page 108: Language Selection (Function 81)

    The analog input displays the current input currents in µA. 5.11.14 Language selection (function 81) Figure 5-61 Selecting a language With this function, you set the device to a second dialog language. FIDAMAT 6-G 5-56 Operating instructions, 07/2006, A5E00478463...

  • Page 109: Interference Gas Correction (Function 83)

    The interference gas correction is deactivated for the duration of an calibration process (zero or span). After calibration is complete and the device has jumped back to the "measure" operating state, it is reactivated. FIDAMAT 6-G 5-57 Operating instructions, 07/2006, A5E00478463...
  • Page 110 (via ELAN). Note "Measured value telegrams" On the device which supplies the correction data, the parameter "on" (function 73) must be set to FIDAMAT 6-G 5-58 Operating instructions, 07/2006, A5E00478463...

  • Page 111: Switch Valves (Function 85)

    The "Switch valves" function only applies for the relay functions "zero gas", "test gas 1 to 4" and "sample gas". Only one valve can be switched at a time, since the valves are interlocked against each other. See also Relay allocation (function 71) (Page 5-40) FIDAMAT 6-G 5-59 Operating instructions, 07/2006, A5E00478463...

  • Page 112: Linear Temperature Compensation (Function 86)

    The same applies to the measured value. 5.11.18 Error on/off (function 87) 87 Error On/Off Paramter memory Flame does not ignit External fault ...continue Figure 5-67 Switching errors on and off FIDAMAT 6-G 5-60 Operating instructions, 07/2006, A5E00478463...

  • Page 113: Profibus Configuration (Function 90)

    Parameters 0, 1 and 3 can be selected and have the following meaning: Parameter Meaning Only the PROFILE ID number is positively acknowledged Only the device-specific ID number is positively acknowledged Only the PROFILE ID number for multivariable devices (complex analyzers) are positively acknowledged. FIDAMAT 6-G 5-61 Operating instructions, 07/2006, A5E00478463...

  • Page 114: Start-Up State (Function 91)

    The operating state can either be changed manually using function 91, or automatically by occurring faults / maintenance requests. The table “Change of state following error/maintenance request” shows possible state changes. See also Warm-up phase and operating states (Page 4-5) FIDAMAT 6-G 5-62 Operating instructions, 07/2006, A5E00478463...

  • Page 115: Pressure Values (Function 92)

    (min:): If the combustion air pressure falls below the set pressure level by the set value, the unit switches over to the "standby" operating state. Actual pressure is automatically displayed FIDAMAT 6-G 5-63 Operating instructions, 07/2006, A5E00478463...

  • Page 116: Units (Function 93)

    With this function, the operator can get to the factory function level. These settings are intended only for maintenance personnel and are therefore protected by an additional code. After activating this function, a message appears, which prompts you to input the corresponding code. FIDAMAT 6-G 5-64 Operating instructions, 07/2006, A5E00478463...

  • Page 117: Maintenance And Service

    4. Unscrew the three screws which are between the SUB-D plug connectors on the rear of the device. 5. Pull the plug connectors of the flat ribbon cables from the motherboard. 6. Carefully remove the motherboard. To install the boards, carry out the same steps in the opposite order. FIDAMAT 6-G Operating instructions, 07/2006, A5E00478463...

  • Page 118: Exchanging Mains Fuses

    Make sure that you use protective gloves when carrying out maintenance. Please note as well that hydrogen is colorless when it burns. Non-observance may result in serious burns. FIDAMAT 6-G Operating instructions, 07/2006, A5E00478463...

  • Page 119: Cleaning The Device

    If a new message appears, the record stored in the logbook is pushed back one place in the memory. There are a total of 32 memory places available. If all 32 memory places are occupied, if another record comes in (no. 33), the oldest (no. 1) is overwritten. FIDAMAT 6-G Operating instructions, 07/2006, A5E00478463...
  • Page 120 If the device activates the functional check, this is noted in the logbook. See also Logbook settings (function 60) (Page 5-36) Relay allocation (function 71) (Page 5-40) Analog output memory (function 77) (Page 5-53) Error on/off (function 87) (Page 5-60) FIDAMAT 6-G Operating instructions, 07/2006, A5E00478463...

  • Page 121: List Of Maintenance Requests

    Ambient temperature Make sure that the display lies outside of the ambient temperature tolerances specified in lies within the range the technical data (5°C of 5°C to 45°C. to 45°C). Exchange the display, sensor defective. FIDAMAT 6-G Operating instructions, 07/2006, A5E00478463...

  • Page 122: List Of Faults

    When a fault occurs, the device leaves the "measure" operating state. After eliminating the fault, you must leave this new state ("Standby"/"Pause"/"Pause without heating") again via function 91 in order to put the device back into the "measure" state. FIDAMAT 6-G Operating instructions, 07/2006, A5E00478463...

  • Page 123: Table 6-2 Faults

    Mains frequency Check diagnostic values Hardware / • • beyond tolerance mains frequency Exchange the • Internal supply motherboard / adapter • beyond tolerance board FIDAMAT 6-G Operating instructions, 07/2006, A5E00478463...

  • Page 124: Other Errors

    Exhaust gas line is congested/clogged, e.g. by water condensation See also Zero calibration (function 20) (Page 5-13) Span calibration (function 21) (Page 5-13) Cleaning the device (Page 6-3) Technical data of the FIDAMAT 6 series (Page 7-1) FIDAMAT 6-G Operating instructions, 07/2006, A5E00478463...

  • Page 125: Technical Data

    200 to 240 V: 2.5 T/250 Table 7-3 Technical data - gas consumption data Gas consumption data Combustion air approx 350 ml/min Hydrogen approx. 20 ml/min Sample gas approx. 0.5 l/min Zero gas / test gas approx. 0.5 l/min FIDAMAT 6-G Operating instructions, 07/2006, A5E00478463...

  • Page 126: Table 7-4 Technical Data - Time Response

    0/ 2/ 4 up to 20 mA, floating, max. load 750 Ω Relay outputs 6, with changeover contacts, can be freely parameterized, e.g. for measuring range identification; load rating: AC/DC 24 V/1 A floating FIDAMAT 6-G Operating instructions, 07/2006, A5E00478463...

  • Page 127: Technical Data Of The Fidamat 6-G

    Technical data 7.2 Technical data of the FIDAMAT 6-G Electric in- and outputs Analog inputs 2, laid out on 0/ 2/ 4 up to 20 mA for external pressure sensor and carrier gas correction (interference gas correction) Binary inputs 6, designed for 24 V, floating, can be freely parameterized, e.g.
  • Page 128 Technical data 7.2 Technical data of the FIDAMAT 6-G Table 7-10 Technical data - gas input conditions Gas input conditions Allowed sample gas pressure approx. 1 000 hPa Sample gas flow 18 to 60 l/h (0.3 to 1 l/min) Sample gas temperature 0-200 °C...

  • Page 129: Dimensional Drawings And Circuit Diagrams

    Dimensional drawings and circuit diagrams Motherboard pin assignments Figure 8-1 FIDAMAT 6, 19“ rack unit, motherboard pin assignments FIDAMAT 6-G Operating instructions, 07/2006, A5E00478463...

  • Page 130: Plug Connector Assignment Of The Optional Board And Profibus

    8.2 Plug connector assignment of the optional board and PROFIBUS Plug connector assignment of the optional board and PROFIBUS Figure 8-2 FIDAMAT 6, 19” rack unit, pin assignments on the optional board and PROFIBUS plug connector FIDAMAT 6-G Operating instructions, 07/2006, A5E00478463...

  • Page 131: Dimension Diagrams

    Dimensional drawings and circuit diagrams 8.3 Dimension diagrams Dimension diagrams Figure 8-3 Dimension diagrams for the FIDAMAT 6-G FIDAMAT 6-G Operating instructions, 07/2006, A5E00478463...

  • Page 132: Gas Flow Of The Fidamat 6-G

    Dimensional drawings and circuit diagrams 8.4 Gas flow of the FIDAMAT 6-G Gas flow of the FIDAMAT 6-G Figure 8-4 Gas flow FIDAMAT 6-G FIDAMAT 6-G Operating instructions, 07/2006, A5E00478463...

  • Page 133: Spare Parts And Accessories

    The information contained in this documentation, however, is checked regularly for errors. All corrections made to the text appear in later editions. Suggestions for improvement are welcomed. Copyright Siemens AG Subject to technical changes. The reproduction, transmission or use of this document or its contents is not permitted without express written authority.

  • Page 134: Spare Parts

    Gas output 6 mm A5E00299845 Gas output ¼" A5E00299847 Restrictor lines 1FS, k. DR13 A5E00417394 Crimp restrictor DR1 A5E00296569 Crimp restrictor DR2 A5E00296570 Crimp restrictor DR3 A5E00782865 Crimp restrictor DR4 A5E00296573 Crimp restrictor DR8 A5E00296580 FIDAMAT 6-G Operating instructions, 07/2006, A5E00478463...
  • Page 135 Cable, oven heating 115 V F.6 A5E00295469 Cable, RS232 interface A5E00284087 Cable, polarization voltage (pulling force) F.6 A5E00284092 Cable, measuring cable 230 V F.6 A5E00284094 Cable, plug-in line F.6 A5E00284095 Cable, plug-in line F.6 A5E00284096 Cable, RS485 F.6 A5E00284100 FIDAMAT 6-G Operating instructions, 07/2006, A5E00478463...

  • Page 136: Gas Flow Chart With Spare Parts

    Spare parts and accessories 9.2 Spare parts 9.2.2 Gas flow chart with spare parts Figure 9-1 Gas flow chart with spare parts/gaskets FIDAMAT 6-G Operating instructions, 07/2006, A5E00478463...
  • Page 137 Reactor 8 Pinch reactor (safety) A5E00296580 Reactor 9/ 10/ 11 Pinch reactor A5E00417401 Reactor 12 Pinch reactor A5E00782981 Reactor 13 Pinch reactor 1FS A5E00417394 (sample gas) 4-way distributor A5E00296582 3-way distributor A5E00296585 3-way distributor A5E00296588 FIDAMAT 6-G Operating instructions, 07/2006, A5E00478463...
  • Page 138 Pressure regulator 1 A5E00248851 (combustion gas) Pressure regulator 2 A5E00248851 (combustion air) Pressure sensor 1 A5E00284096 (combustion gas) Pressure sensor 2 A5E00284095 (combustion air) FI detector A5E00295816 FID oven insert FID oven insert A5E00429789 FIDAMAT 6-G Operating instructions, 07/2006, A5E00478463...

  • Page 139: Device Views With Spare Part Numbers

    Spare parts and accessories 9.2 Spare parts 9.2.3 Device views with spare part numbers Figure 9-2 Top view FIDAMAT 6-G Operating instructions, 07/2006, A5E00478463...
  • Page 140 Spare parts and accessories 9.2 Spare parts Figure 9-3 Rear view FIDAMAT 6-G Operating instructions, 07/2006, A5E00478463...
  • Page 141 Spare parts and accessories 9.2 Spare parts Figure 9-4 Divider FIDAMAT 6-G Operating instructions, 07/2006, A5E00478463...
  • Page 142 Spare parts and accessories 9.2 Spare parts Figure 9-5 Oven insert FIDAMAT 6-G 9-10 Operating instructions, 07/2006, A5E00478463...

  • Page 143: Return Delivery

    Fax: +33 3 88 90 66 88 Machine data order forms.: A12ØØ441 Repairs For quick identification and elimination of causes of error, we ask you to send the devices to the above-named address. FIDAMAT 6-G 9-11 Operating instructions, 07/2006, A5E00478463...
  • Page 144 Delivery address Phone Email Return delivery address (if not the same address as above) Customer (original) Order number Siemens (Original)- order confirmation No. Device name MLFB No. Production No. Designation of the returned part Fault indication Process data at mesauring point...

  • Page 145: Appendix

    • EN 61326 • EN 61010 The EU declarations of conformity are kept available for the responsible authorities in accordance with the above-named EC directives at: Siemens AG Automation & Drives A&D PI 2 D-76181 Karlsruhe FIDAMAT 6-G Operating instructions, 07/2006, A5E00478463...

  • Page 146: A.2 Response Factors

    Organic acids, e.g. acetic acid 0.5 to 1.0 See also Calibration submenu (Page 5-12) Overview of operating functions There is a list of the device functions In the following overview. This list corresponds to the software version 4. FIDAMAT 6-G Operating instructions, 07/2006, A5E00478463...

  • Page 147: Table A-3 Overview Of Operating Functions

    Electric time constants Limits On/off functions Status messages Graphical representation of measured values Measured value display LCD contrast Ignite flame Date/time Measuring point switching Logbook setting Switch internal valves Set ext. pressure (FIDAMAT 6-G only) FIDAMAT 6-G Operating instructions, 07/2006, A5E00478463...
  • Page 148 Analog output memory Calibration tolerances Change codes Device test Language selection Interference gas correction Switch valves Linear temperature compensation Error on/off PROFIBUS configuration (only with optional board) Start-up state (operating states) Pressure values Units Factory settings FIDAMAT 6-G Operating instructions, 07/2006, A5E00478463...

  • Page 149: List Of Abbreviations/Acronyms

    Maximum workplace concentration max . maximum mba, MBA start of measuring range mbar millibars mbe, MBE end of measuring range milligrams minute milliliters MLFB Machine-readable product code millimeters FIDAMAT 6-G Operating instructions, 07/2006, A5E00478463...
  • Page 150 (10^-12 F) parts per billion parts per million PTFE polytetrafluoroethylene (plastic, commercial name, e.g. teflon) Random Access Memory seconds volts volume parts per million e.g. for example Δ difference (delta) Ω ohms FIDAMAT 6-G Operating instructions, 07/2006, A5E00478463...

  • Page 151: Glossary

    An combustible gas necessary for forming a flame (only burns in combination with combustion air). In the FIDAMAT 6, hydrogen is used as the combustion gas. Commissioning Totality of measures and actions for making a machine or system capable of running. FIDAMAT 6-G Glossary-1 Operating instructions, 07/2006, A5E00478463...
  • Page 152 Function for maintaining the device. This function is protected by the code of the highest code level and is only accessible by maintenance personnel. Factory setting Standard settings of the device at the time of delivery. Flame ionization detector (FID) Detector for organic compounds (hydrocarbons) FIDAMAT 6-G Glossary-2 Operating instructions, 07/2006, A5E00478463...
  • Page 153 A gas which interferes with the measurement, which can be contained as a component in the sample gas. Interference gas correction Computed correction of the measured value falsification caused by the interference gas. Interference gas deflection The falsification of a measurement caused by interference gas. FIDAMAT 6-G Glossary-3 Operating instructions, 07/2006, A5E00478463...
  • Page 154 The measuring range has a reference number, e.g. 1. It is characterized by a start-of-scale value and a full-scale value. Measuring range switching Automatic switching among various measuring ranges. Also referred to as "autorange" in the software. FIDAMAT 6-G Glossary-4 Operating instructions, 07/2006, A5E00478463...
  • Page 155 Generic term for a series of independent states, which the device can take during operation (e.g. measure, standby, pause, etc.). Operation level Certain operating area (menus and functions) which is either freely accessible or protected by a code. FIDAMAT 6-G Glossary-5 Operating instructions, 07/2006, A5E00478463...
  • Page 156 Output of various messages in the status line of the measured value display which can be parameterized. Subfunction Independent functional unit within a function. Submenu Menu which is listed under a higher-order menu item. Supply gas Generic term for combustion gas and combustion air. FIDAMAT 6-G Glossary-6 Operating instructions, 07/2006, A5E00478463...
  • Page 157 Smallest possible point of a measuring range (usually the start of the measuring range). Zero calibration Calibration of the zero point with a suitable zero gas. Zero gas Test gas used for calibrating the zero. FIDAMAT 6-G Glossary-7 Operating instructions, 07/2006, A5E00478463...
