9. STATUS INDICATIONS

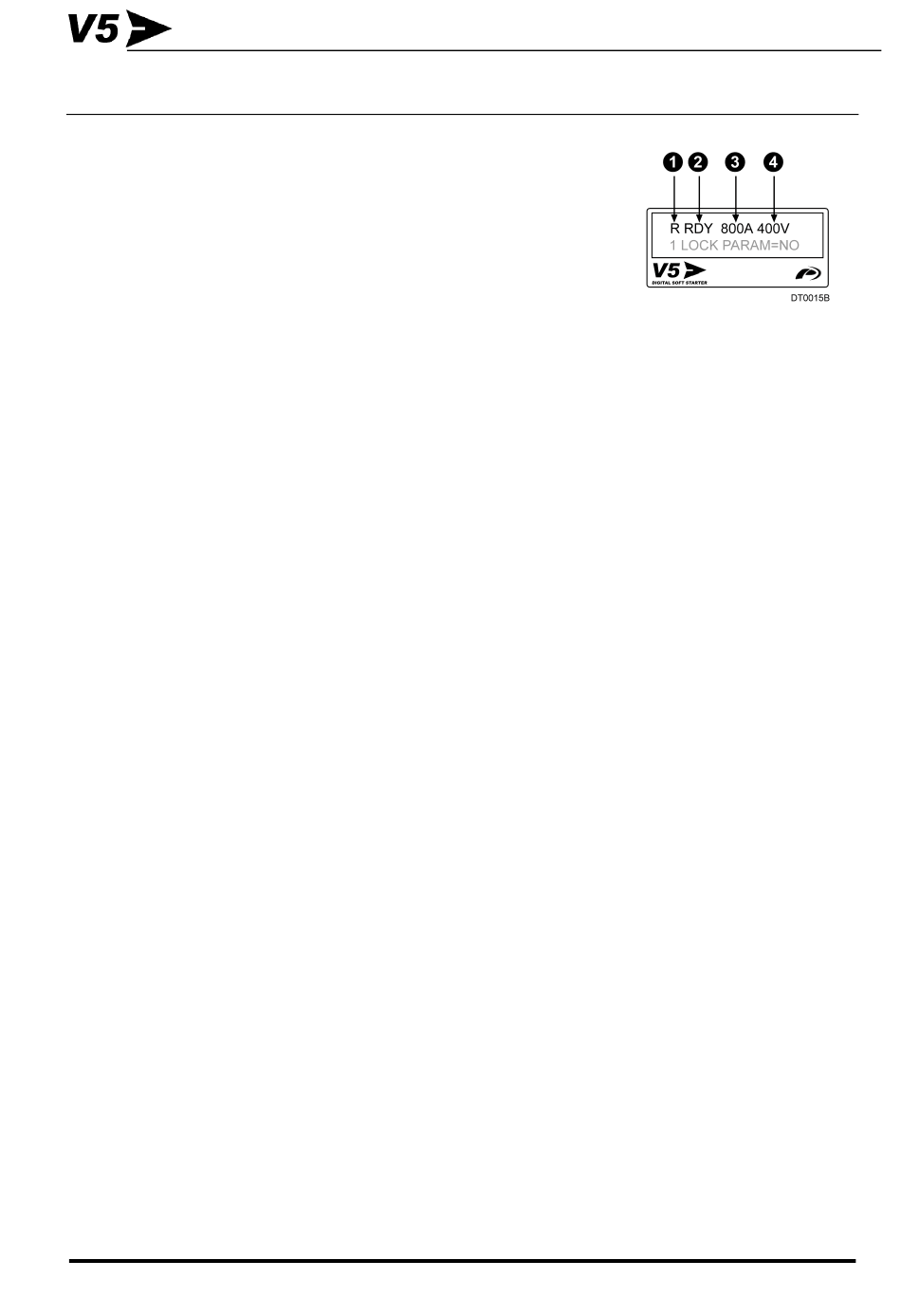

Reference table:
1. Control mode indication: Local (L) , Remote (R), Seriel Comms (C), Jog
(G), Pump control (P).
2. V5 status indication.
3. Average phase current.
4. Average input voltage.
V5 STATUS INDICATION
Indication
Description
Note
Indication
Description
Note
Indication
Description
Note
Indication
Description
Note
Indication
Description
Note
Indication
Description
Note
Indication
Description
Note
Indication
Description
Note
Indication
Description
Note
Indication
Description
Note
Indication
Description
Note
Indication
Description
Note
POWER ELECTRONICS V5 Operation Instructions
28
RDY
READY
The V5 is ready to run.
ITQ
INITIAL TORQUE
The V5 is applying the Initial Torque specified at G4.4 Initial Torque for the time specified
at G4.5 Initial Torque Time.
ACL
ACCELERATING
Motor is accelerating.
RUN
RUNS AT CURRENT SPEED
The motor runs at nominal Speed.
DEC
DECELERATING
The Motor is stopping.
HAM
HAMMER
Water Hammer algorithm is operating.
LS+
SLOW SPEED +
V5 is applying SS+ (CLOCKWISE).
LS-
SLOW SPEED -
V5 is applying SS- (ANTI-CLOCKWISE).
DCB
DC BRAKE
DC Brake current applied at the end of the ramp down.
UNV
UNDERVOLTAGE
Low mains supply.
OVV
OVERVOLTAGE
High mains supply.
OVL
OVERLOAD
Overload condition.
