- Page 1 OWER ELECTRONICS SIEMENS 6GA-2491 COMPATIBLE AUTOMATIC VOLTAGE REGULATOR USER MANUAL...
-
Page 2: General Description

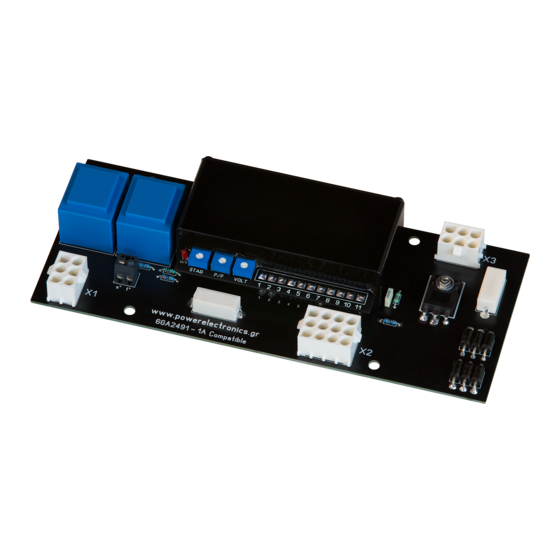

6GA-2491 MODEL GENERAL DESCRIPTION COMPATIBLE TECHNICAL DESCRIPTION This is the replacement of SIEMENS 6GA-2491. Height Note that (as with every other compatible AVR we make) the inner design is completely different from the original and much improved in every aspect. - Page 3 6GA-2491 COMPATIBLE AVR EXAMPLE PLAN The original 5000 Ohm potentiometer must be changed with the 500 Ohm supplied one. Our 6GA-2491 design is compatible with the original potentiometer.
- Page 6 Powerele@gmail.com ELECTRONICS INSTRUCTIONS TO INSTALLING AND ADJUSTING THE AVR MODELS: SIEMENS 6GA-2491 COMPATIBLE STAB - Stability. It eliminates the voltage fluctuations. To adjusting the STAB trimmer, proceed as follows: STABILITY 1. Turn anti-clockwise the STAB trimmer all the way (1 turn).
- Page 7 να γίνει στα ίδια καλώδια με το εργοστασιακό. 3. Το εργοστασιακό εξωτερικό ποτενσιόμετρο δεν είναι συμβατό με το AVR της POWER ELECTRONICS. 4. Στην περίπτωση που υπάρχει προ-εγκατεστημένο εργοστασιακό ποτενσιόμετρο τότε οι κλέμες S - T του AVR παραμένουν άνευ σύνδεσης (προ-ρυθμισμένη κατάσταση).
