7. CONTROL INPUTS AND OUTPUTS
The next figure provides the electrical specification of all V5 control inputs and outputs. Each input and output is
individually described below.
7.1 CONTROL TERMINALS
POWER ELECTRONICS V5 Operation Instructions
22

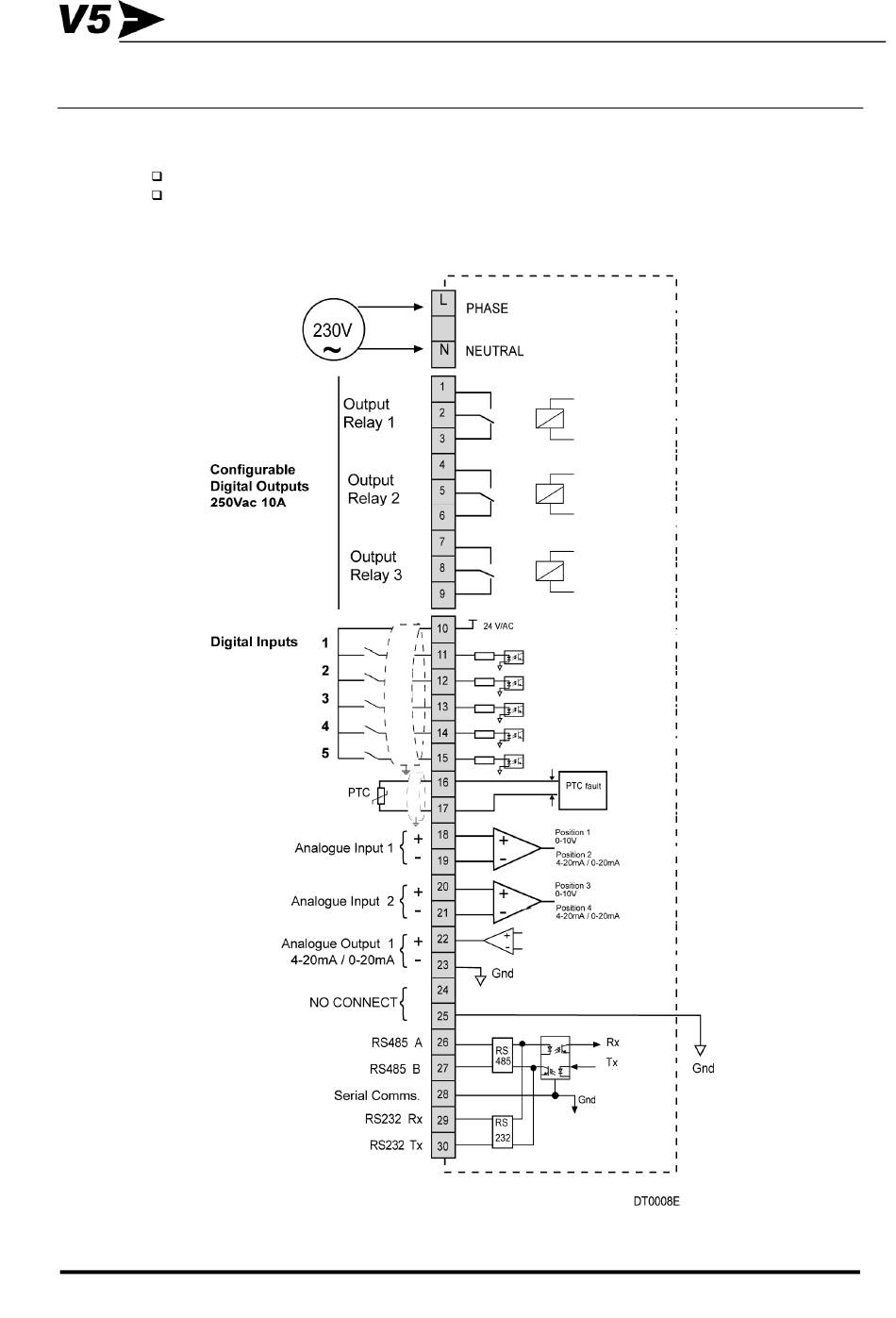

Control Inputs/Outputs.
Serial Comms (RS232/RS485).
Figure 10. Control Terminals.
V5IM01BI
