Summary of Contents for Power Electronics NISHISHIBA VZKUP-4B COMPATIBLE

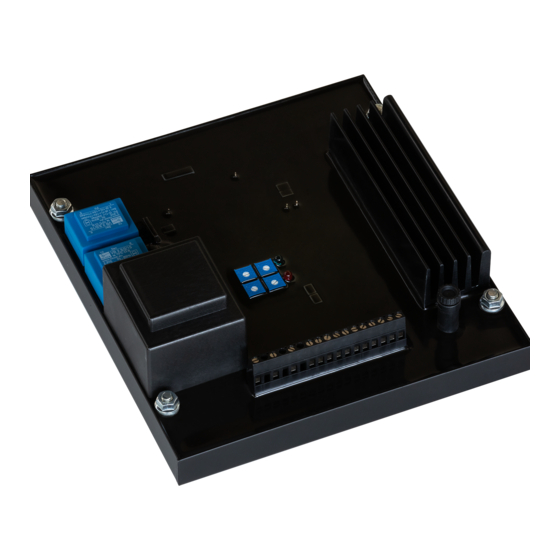

- Page 1 OWER ELECTRONICS NISHISHIBA VZKUP-4B COMPATIBLE AUTOMATIC VOLTAGE REGULATOR USER MANUAL...
- Page 2 OWER ELECTRONICS NISHISHIBA VZKUP-4B COMPATIBLE AUTOMATIC VOLTAGE REGULATOR...
- Page 3 OWER ELECTRONICS 200mm Φ8 Φ8 NISHISHIBA VZKUP- 4B COMPATIBLE AVR HEIGHT 68mm 220mm 150mm POWER VOLTAGE POWER ON FACTOR UNDER FREQ UNDER STABILITY FREQ Φ8 Φ8 184mm VZKUP-4B(P1) TERMINAL 3 C1 C2 C3 C4...
-
Page 4: General Description
Practically this AVR works much better and Length will never malfunction. Width ADJUSTMENTS DESIGN AND MANUFACTURE VOLT for voltage output level BY RESEARCH TEAM OF POWER ELECTRONICS C.O. Dimensions ( mm ) GREECE STAB for stability voltage control Length Width Height Weight (Kg) - Page 5 OWER www.powerelectronics.gr ELECTRONICS powerele@gmail.com (+30210)6643800 27 K.SIDERI 19002 PEANIA NISHISHIBA VZKUP-4B(P1) COMPATIBLE AVR EXAMPLE PLAN PLEASE REPLACE THE POTENTIOMETER WITH NEW 500 Ohm , 5W (PROVIDED) POWER ELECTRONICS VZKUP-4B(P1) COMP.
- Page 6 Powerele@gmail.com MODELS: NISHISHIBA VZKUP-4B COMPATIBLE STAB - Stability. It eliminates the voltage fluctuations. To adjusting the STAB trimmer, proceed as follows: STABILITY ONE TURN TRIMMER 1. Turn anti-clockwise the Stab trimmer all the way (1 turn). 2. Turn clockwise the STAB trimmer and set it just after the voltage fluctuation stops.
- Page 7 Powerele@gmail.com MODELS: NISHISHIBA VZKUP-4B COMPATIBLE STAB - Stability. Σταθεροποιεί την διακύμανση της τάσης. H ρύθμιση του STAB τρίμερ γίνεται ως εξής : STABILITY 1. Περιστρέφουμε αριστερόστροφα το τρίμερ STAB μέχρι το τέλος της TRIMMER ΜΙΑΣ ΣΤΡΟΦΗΣ διαδρομής του (1 στροφή).
