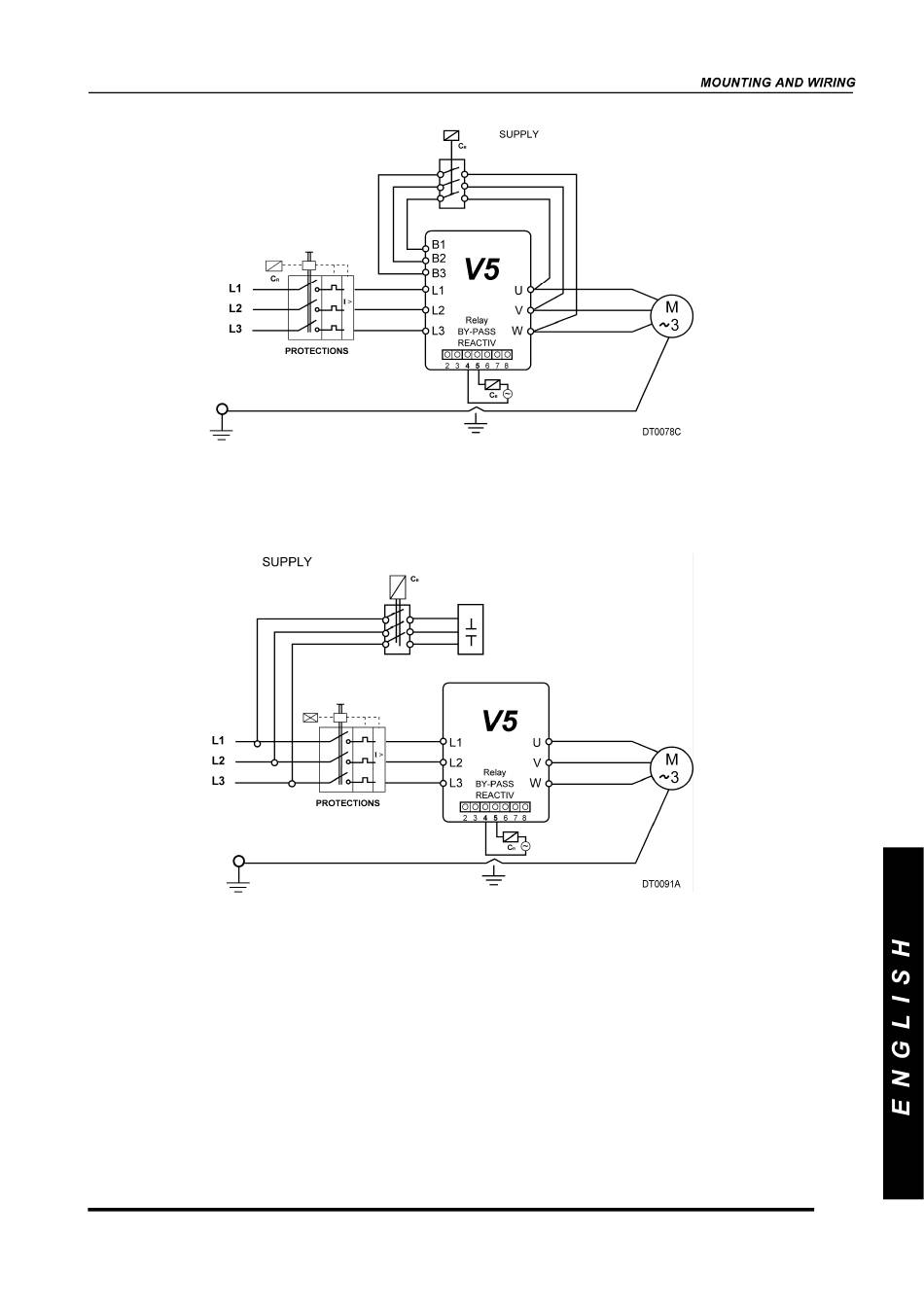

By-pass configuration
NOTE: RELAY 2 (Terminals 4 and 5) set as BY-PASS / REACT G7.2= 15
By-pass contactor can be AC1 category.
•
Configuration for compensation capacitors.
NOTE: RELAY 2 (Terminals 4 and 5) set as BY-PASS / REACT G7.2= 15.
To avoid damages do not connect capacitors at the output of the V5
This circuitry is only valid if compensation capacitors are operating for the motor connected to the V5.
CONTROL WIRING
The following control wiring diagram corresponds to the standard configuration for external Start/Stop pushbuttons.
NOTE: Wiring distance. Control wiring should not be run in parallel with power input or output cables to the motor. There
should be a minimum distance of 300mm between power and control cables, and should be crossed at right
angles.
Inputs and outputs. All signals do need to be screened when running in parallel with power cables. El diagrama
de control que se muestra corresponde a la configuración estándar de pulsadores de paro y marcha.
POWER ELECTRONICS V5 Operation Instructions
Figure 2.3 By-pass configuration.
Figure 2.4 Relay configuration.
