Unit Drawings

Installation Drawings

See Figure 2-1. Installation drawings show weights,
dimensions, clearances, exhaust details, connection
locations, wiring stub-ups, lifting locations, and other
information. Use unit specific installation drawings when
designing a site installation plan. Thoroughly read the
NOTES section of each drawing for important details.
REMOVE PANEL TO INTERNAL DIVIDER PANEL
ALLOW TANK VENTS
SEPARATES FUEL TANK VENTILATION
TO TERMINATE OUTSIDE DUCT FROM THE ENGINE,
OF THE GENERATOR ALTERNATOR AND EXHAUST SYSTEM
ENCLOSURE (CHECK LOCAL
AND STATE CODE FOR
APPLICABILITY)
RADIATOR/EXHAUST
DISCHARGE AIR
(BOTH SIDES)
173 [6.8]
618 [24.3]
LIFT-OFF DOOR PROVIDES ACCESS TO:
FUEL FILL, FUEL LEVEL GAUGE,
NORMAL VENT, INNER TANK TOP VIEW
EMERGENCY VENT, OUTER TANK
EMERGENCY VENT, OPTIONAL RADIATOR/EXHAUST
DISCHARGE AIR
90% ALARM ASSEMBLY,
OPTIONAL 5 GALLON SPILL
BOX
OPEN PUNCHED LOUVERS TYPICAL
FUEL TANK
ON BOTH SIDES OF
VENTILATION DUCT
FUEL TANK VENTILATION
DUCT TO PROVIDE ADEQUATE
CROSS-FLOW OF AIR VENTILATION
LEFT SIDE VIEW
DRAWING CREATED FROM PRO/ENGINEER

Wiring Diagrams

Wiring and schematic diagrams show connection points
for control wiring, load wiring, and any service power sup-
ply required for battery chargers, block heaters, etc.
Always use unit specific wiring diagrams during planning
and installation. See Installation Drawings
information.
Installation Guidelines for Protector Diesel Generators
SERVICE ITEM
OIL FILL CAP
OIL DIP STICK
998 [39.3] OIL FILTER
CENTER OF GRAVITY
OIL DRAIN HOSE
SEE NOTE 5
RADIATOR DRAIN HOSE
AIR INTAKE
AIR CLEANER ELEMENT
(BOTH SIDES)
MUFFLER
FAN BELT
BATTERY
REFERENCE OWNERS MANUAL FOR PERIODIC
REPLACEMENT PART LISTINGS.
758 [29.8]
DOOR TYP
REAR ENCLOSURE COVER
PANEL
SEE NOTE 4
CIRCUIT BREAKER
SEE NOTE 3
CUSTOMER ACCESS
ASSEMBLY, CONTROL PANEL
ACCESS, BATTERY CHARGER
LOCATED WITHIN
SEE NOTE 4
REAR TANK COVER
SEE NOTE 4
EXHAUST MUFFLER ENCLOSED WITHIN
GENERATOR ENCLOSURE

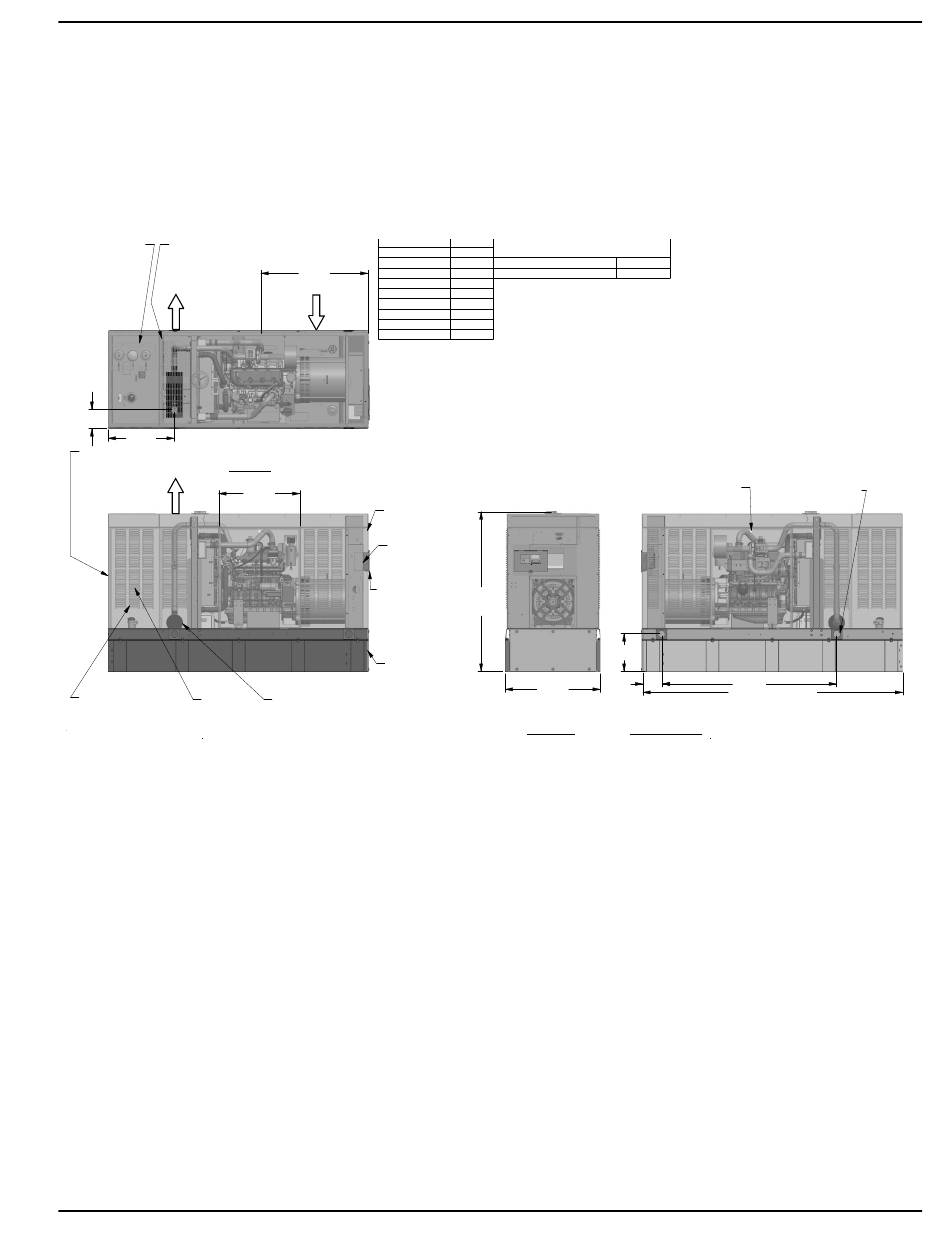

Figure 2-1. Typical Installation Drawing
for more
3.4L
WEIGHT DATA WITH EMPTY BASETANK
(SEE NOTE 5)
RIGHT SIDE
GENERATOR AS SHOWN (STEEL ENCL) 997 [2197]
RIGHT SIDE
WITH WOODEN SHIPPING SKID 1042 [2297]
RIGHT SIDE
RIGHT SIDE
LEFT SIDE
RIGHT SIDE
FRONT
EITHER SIDE
LEFT SIDE
DOORS ON FRONT, RIGHT, AND LEFT SIDES
1449
[57.0]
OVERALL
HEIGHT
343
[13.5]
182
888 [35.0]
[7.2]
OVERALL WIDTH
REAR VIEW
RIGHT SIDE VIEW
Installation Planning
NOTES:
1. MINIMUM RECOMMENDED CONCRETE PAD SIZE: 1194 (47") WIDE X 2718
(107") LONG. REFERENCE INSTALLATION GUIDE SUPPLIED WITH UNIT
FOR CONCRETE PAD GUIDELINES
2. ALLOW SUFFICIENT ROOM ON ALL SIDES OF THE GENERATOR FOR MAINTENANCE
AND SERVICING. THIS UNIT MUST BE INSTALLED IN ACCORDANCE WITH CURRENT
APPLICABLE NFPA 37 AND NFPA 70 STANDARDS AS WELL AS ANY OTHER FEDERAL,
STATE AND LOCAL CODES.
3. CONTROL PANEL / CIRCUIT BREAKER INFORMATION:
- SEE SPECIFICATION SHEET OR OWNERS MANUAL
- ACCESSIBLE THROUGH CUSTOMER ACCESS ASSEMBLY DOOR ON REAR OF
GENERATOR
4. REMOVE THE REAR TANK AND REAR ENCLOSRE COVER PANEL TO ACCESS
THE STUB-UP AREAS AS FOLLOWS:
- HIGH VOLTAGE CONNECTION INCLUDING AC LOAD LEAD CONDUIT CONNECTION
NEUTRAL CONNECTION, BATTERY CHARGER 120 VOLT AC (0.5 AMP MAX) CONNECTION.
- LOW VOLTAGE CONNECTIONS INCLUDING TRANSFER SWITCH CONTROL WIRES
5. CENTER OF GRAVITY AND WEIGHT MAY CHANGE DUE TO UNIT OPTIONS.
6. ENGINE SERVICE CONNECTIONS
OIL DRAIN: 3/8" NPT
EXHAUST OUTLET: 2" O.D.
7. BOTTOM OF GENERATOR SET MUST BE ENCLOSED TO PREVENT PEST INTRUSION AND
RECIRCULATION OF DISCHARGE AIR AND/OR IMPROPER COOLING AIR FLOW.
8. EXHAUST SYSTEM MAXIMUM BACK PRESSURE: 35 INCHES H2O.
9. REFERENCE OWNERS MANUAL FOR LIFTING WARNINGS.
10. MOUNTING BOLTS OR STUDS TO CONCRETE PAD SHALL BE 5/8-11 GRADE 5
(USE STANDARD SAE TORQUE SPECS)
