D2.2L G22-132 Gal Tank (10000029492 - Generac Power Systems D3.4L G16 Extended Tank Installation Manuallines

Installation Drawings

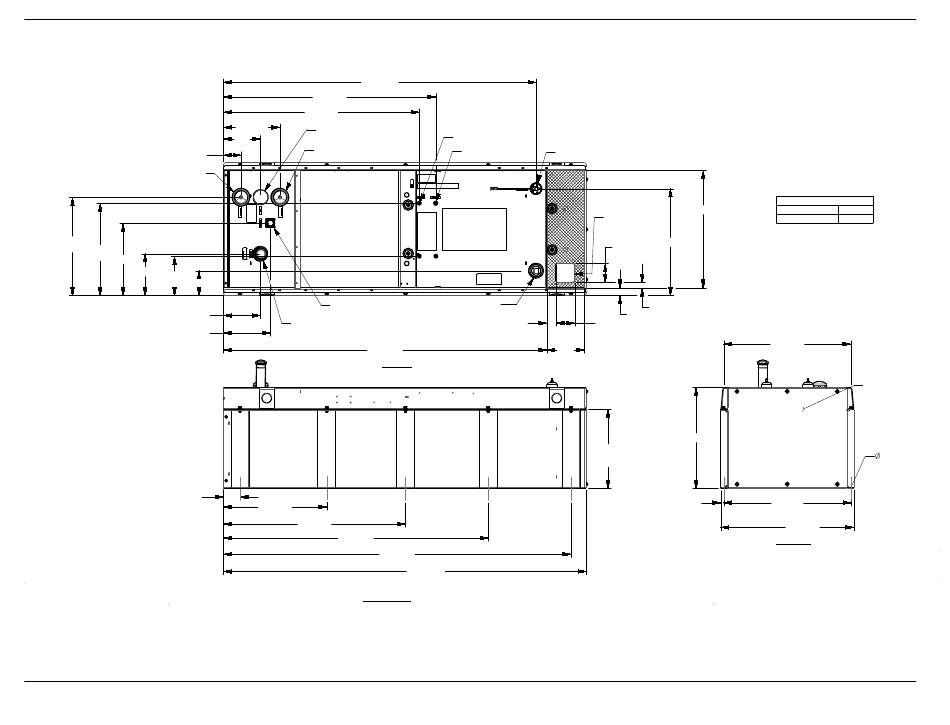

D2.2L G22–132 Gal Tank (10000029492, page 2 of 2)
117 [4.6]
OUTER TANK EMERGENCY VENT
(2" NPT FEMALE)
658 [25.9]
TYP
618 [24.3]
TYP
485 [19.1]
280 [11.0]
264 [10.4]
TYP
167 [6.6]
247 [9.7]
314 [12.4]
110 [4.3]
TYP
DRAWING CREATED FROM PRO/ENGINEER
3D FILE. ECO MODIFICATION TO BE
APPLIED TO SOLID MODEL ONLY
44
2089 [82.2]
TYP
1418 [55.8]
TYP
1307 [51.5]
TYP
377 [14.8]
INNER TANK NORMAL VENT
(2" NPT FEMALE)
247
[9.7]
INNER TANK EMERGENCY VENT
(2" NPT FEMALE)
FUEL LEVEL
GAUGE/SENDER
FUEL FILL
(2" NPT FEMALE)
2160 [85.0]
TOP VIEW
690 [27.2]
TYP
1216 [47.9]
TYP
1769 [69.6]
TYP
2322 [91.4]
TYP
2424
LEFT SIDE VIEW
FUEL RETURN
FUEL SUPPLY OUTER TANK LEAK DETECTOR
HIGH AND
LOW VOLTAGE
STUB-UP AREA
CUSTOMER OPTION
(2" NPT FEMALE)
62 [2.5] 125 [4.9]
STUB-UP
AREA
253
[10.0]
529 [20.8]
FUEL TANK
HEIGHT
[95.4]
786 [30.9] TOTAL CAPACITY
USABLE CAPACITY
CAPACITY: LITER [GALLON]
715 [28.1] DIMENSIONS: MM [INCH]
125 [4.9]
STUB-UP
NOTE: STUB-UP AREA FOR HIGH
AREA
AND LOW VOLTAGE CONNECTIONS,
CIRCUIT BREAKER, NEUTRAL AND
CUSTOMER CONNECTION OPENING.
38
51 [1.5]
[2.0]
850 [33.5]
676 [26.6]
19 [.7] 851 [33.5]
TYP MOUNTING CENTERS
TYP
888 [35.0]
REAR VIEW
TITLE
INSTALL PROTECTOR D2.2L G22
Installation Guidelines for Protector Diesel Generators
FUEL TANK
524 [138.5]
500 [132]
REMOVABLE
STUB-UP COVER
SEE NOTE 4
16.7 [0.66]
MOUNTING HOLES
(10 PLACES) SEE
NOTE 9
132 GAL TANK
