D2.2L G22 Single Wall (10000018294 - Generac Power Systems D3.4L G16 Extended Tank Installation Manuallines

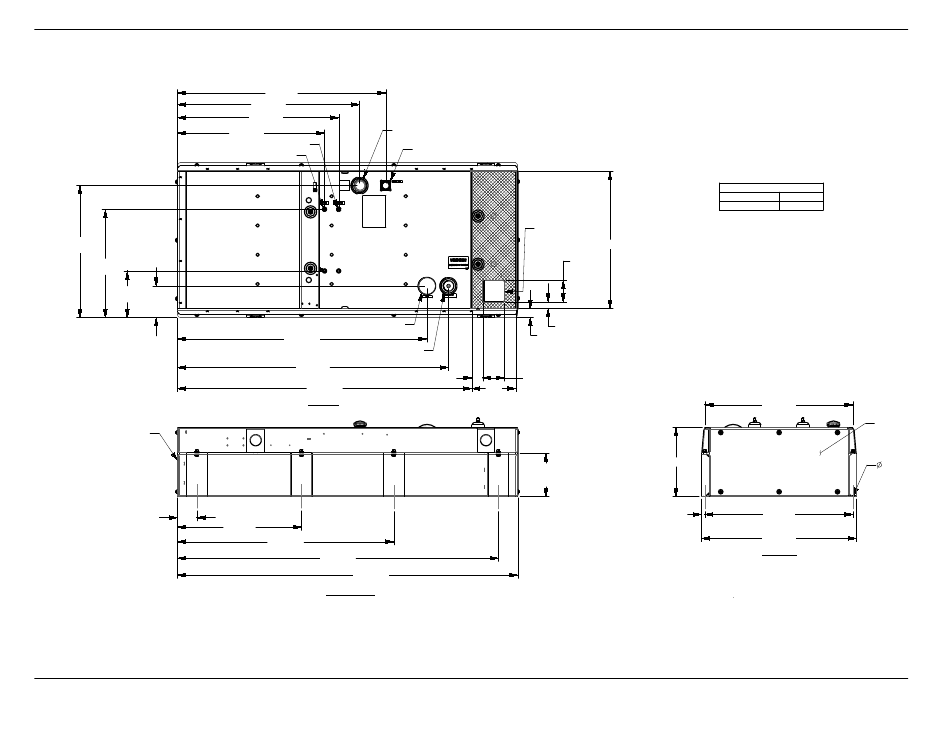

Installation Drawings
D2.2L G22 Single Wall (10000018294, page 2 of 2)
757 [29.8]
TYP
621 [24.5]
TYP
267 [10.5]
TYP
181 [7.1]
TYP
REMOVABLE COVER
112 [4.4]
TYP
40
1196 [47.1]
1045 [41.2]
926 [36.5]
TYP
FUEL FILL
844 [33.2]
(2" NPT FEMALE)
TYP
FUEL SUPPLY
FUEL RETURN
NORMAL VENT
(2" NPT FEMALE)
1430 [56.3]
EMERGENCY VENT
(2" NPT FEMALE)
1555 [61.2]
1690 [66.5]
TOP VIEW
712 [28.0]
TYP
1242 [48.9]
TYP
1842 [72.5]
TYP
1954 [76.9]
LEFT SIDE VIEW
FUEL LEVEL
GAUGE/SENDER
HIGH AND LOW
VOLTAGE STUB-UP
AREA
125 [4.9]
STUB-UP
AREA
38
[1.5]
51
[2.0]
62 [2.5] 125 [4.9]
STUB-UP
253
AREA
[10.0]
250 [9.9]
FUEL TANK
HEIGHT
FUEL TANK
TOTAL CAPACITY
USABLE CAPACITY
CAPACITY: LITER [GALLONS]
DIMENSIONS: MM [INCH]
786 [30.9]
*NOTE: STUB-UP AREA FOR HIGH
AND LOW VOLTAGE CONNECTIONS,
CIRCUIT BREAKER, NEUTRAL AND
CUSTOMER CONNECTION OPENING.
850 [33.5]
397 [15.6]
19 [.7] 851 [33.5]
TYP MOUNTING CENTERS
TYP
888 [35.0]
REAR VIEW
TITLE
Installation Guidelines for Protector Diesel Generators
253.6 [67]
230.9 [61]
REMOVABLE
STUB-UP COVER
SEE NOTE 4
16.7 [0.66]
MOUNTING HOLES
(8 PLACES) SEE
NOTE 9
