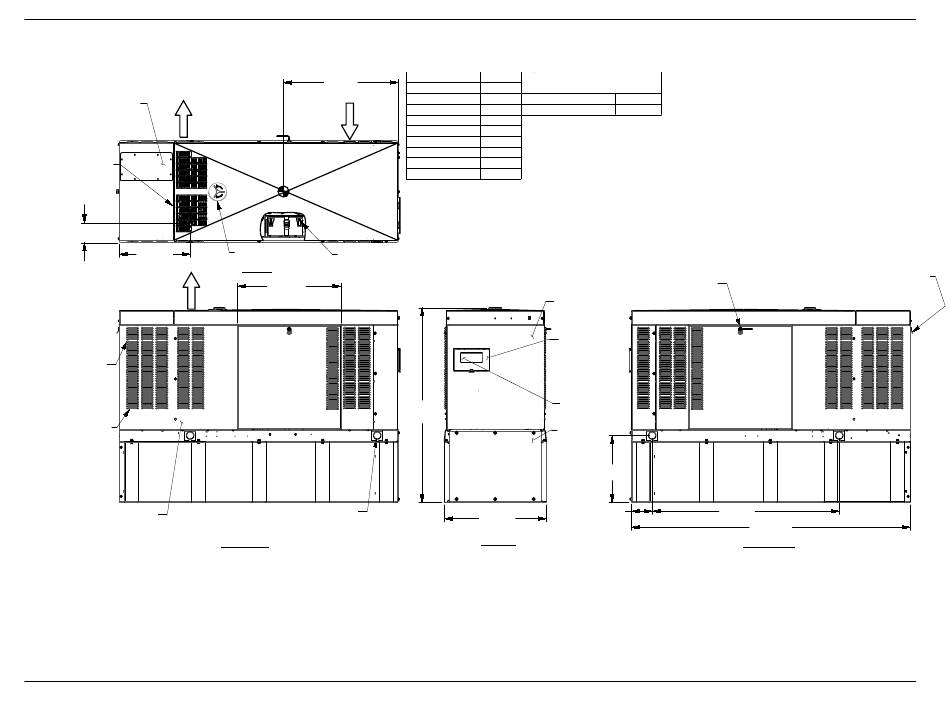

D3.4L G16 – 132 Gal Tank (10000043316, page 1 of 2)
REMOVE PANEL TO ALLOW TANK
VENTS TO TERMINATE OUTSIDE
OF THE GENERATOR ENCLOSURE
RADIATOR/EXHAUST
(CHECK LOCAL AND STATE
DISCHARGE AIR
CODE FOR APPLICABILITY)
(BOTH SIDES)
INTERNAL DIVIDER PANEL
SEPARATES FUEL TANK
VENTILATION DUCT FROM
THE ENGINE ALTERNATOR
AND EXHAUST SYSTEM
172.6 [6.8]
EXHAUST OUTLET
618.3 [24.3]
EXHAUST OUTLET
RADIATOR/EXHAUST
DISCHARGE AIR
FUEL TANK
VENTILATION DUCT
OPEN PUNCHED LOUVERS
TYPICAL ON BOTH
SIDES OF FUEL TANK
VENTILATION DUCT TO
PROVIDE ADEQUATE
CROSS-FLOW OF AIR
VENTILATION
EXHAUST MUFFLER ENCLOSED
WITHIN GENERATOR ENCLOSURE
Installation Guidelines for Protector Diesel Generators
998 [39.3]
CENTER OF GRAVITY
SEE NOTE 5
AIR INTAKE
(BOTH SIDES)
REMOVE COVER FOR ACCESS
BATTERY 12 VOLT
TO RADIATOR FILL CAP
NEGATIVE GROUND
TOP VIEW
897.2 [35.3]
DOOR WIDTH
TYP
LIFTING PROVISIONS, SEE NOTE 5, 8
AND CENTER OF GRAVITY DIMENSION
(4 PLACES)
LEFT SIDE VIEW
SERVICE ITEM 3.4L
WEIGHT DATA WITH EMPTY BASETANK
(SEE NOTE 5)
OIL FILL CAP RIGHT SIDE
GENERATOR AS SHOWN
OIL DIP STICK RIGHT SIDE
WITH WOODEN SHIPPING SKID
OIL FILTER RIGHT SIDE
OIL DRAIN HOSE RIGHT SIDE
WEIGHT: KG [LBS]
DIMENSIONS: MM [INCH]
RADIATOR DRAIN HOSE LEFT SIDE
AIR CLEANER ELEMENT RIGHT SIDE
MUFFLER FRONT
FAN BELT EITHER SIDE
BATTERY LEFT SIDE
REFERENCE OWNERS MANUAL FOR
PERIODIC REPLACEMENT PART LISTINGS
REAR ENCLOSURE
COVER PANEL
SEE NOTE 4
CUSTOMER ACCESS
ASSEMBLY, CONTROL
PANEL ACCESS AND
BATTERY CHARGER
LOCATED WITHIN
SEE NOTE 4
CIRCUIT BREAKER
1690.9 [66.6]
SEE NOTE 3
OVERALL
HEIGHT
REAR TANK
COVER PANEL
SEE NOTE 4
888.1 [35.0]
OVERALL WIDTH
REAR VIEW
NOTES:
1. MINIMUM RECOMMENDED CONCRETE PAD SIZE: 1194 (47") WIDE X 2718
1094 [2411]
(107") LONG. REFERENCE INSTALLATION GUIDE SUPPLIED WITH UNIT
FOR CONCRETE PAD GUIDELINES
1139 [2511]
2. ALLOW SUFFICIENT ROOM ON ALL SIDES OF THE GENERATOR FOR MAINTENANCE
AND SERVICING. THIS UNIT MUST BE INSTALLED IN ACCORDANCE WITH CURRENT
APPLICABLE NFPA 37 AND NFPA 70 STANDARDS AS WELL AS ANY OTHER FEDERAL,
STATE AND LOCAL CODES.
3. CONTROL PANEL / CIRCUIT BREAKER INFORMATION:
- SEE SPECIFICATION SHEET OR OWNERS MANUAL
- ACCESSIBLE THROUGH CUSTOMER ACCESS ASSEMBLY DOOR ON REAR OF
GENERATOR
4. REMOVE THE REAR TANK AND REAR ENCLOSURE COVER PANEL TO ACCESS
THE STUB-UP AREAS AS FOLLOWS:
- HIGH VOLTAGE CONNECTION INCLUDING AC LOAD LEAD CONDUIT CONNECTION,
NEUTRAL CONNECTION, BATTERY CHARGER 120 VOLT AC (0.5 AMP MAX) CONNECTION.
- LOW VOLTAGE CONNECTIONS INCLUDING TRANSFER SWITCH CONTROL WIRES
5. CENTER OF GRAVITY AND WEIGHT MAY CHANGE DUE TO UNIT OPTIONS.
6. ENGINE SERVICE CONNECTIONS
OIL DRAIN: 3/8" NPT
EXHAUST OUTLET: 2" O.D.
7. BOTTOM OF GENERATOR SET MUST BE ENCLOSED TO PREVENT PEST INTRUSION AND
RECIRCULATION OF DISCHARGE AIR AND/OR IMPROPER COOLING AIR FLOW.
8. REFERENCE OWNERS MANUAL FOR LIFTING WARNINGS.
9. MOUNTING BOLTS OR STUDS TO CONCRETE PAD SHALL BE 5/8-11 GRADE 5
(USE STANDARD SAE TORQUE SPECS)
LIFT-OFF DOOR PROVIDES ACCESS TO: FUEL FILL, FUEL
VISE ACTION LATCH, ONE PER
LEVEL GAUGE, NORMAL VENT, INNER TANK EMERGENCY
DOOR AND ONE LIFT-OFF DOOR
VENT, OUTER TANK EMERGENCY VENT, OPTIONAL 90%
PER SIDE OF GENERATOR ALARM ASSEMBLY AND OPTIONAL 5 GALLON SPILL BOX
581 [22.9]
TYP
181.9 [7.2] 1625 [64.0]
TYP TYP
2423.9 [95.4]
OVERALL LENGTH
RIGHT SIDE VIEW
Installation Drawings
49
