D2.5L G2 Extended Tank (10000018189, page 1 of 2)
INTERNAL DIVIDER PANEL
SEPARATES FUEL TANK
RADIATOR/EXHAUST
VENTILATION DUCT FROM THE
DISCHARGE AIR
ENGINE, ALTERNATOR AND
(BOTH SIDES)
EXHAUST SYSTEM
REMOVE PANEL TO ALLOW
TANK VENTS TO
TERMINATE OUTSIDE OF
THE GENERATOR
ENCLOSURE (CHECK LOCAL
AND STATE CODE FOR
APPLICABILITY)
209 [8.2]
EXHAUST OUTLET
580 [22.8]
EXHAUST OUTLET
RADIATOR/EXHAUST
DISCHARGE AIR
FUEL TANK
VENTILATION
DUCT
OPEN PUNCHED LOUVERS
TYPICAL ON BOTH SIDES
OF FUEL TANK
VENTILATION DUCT TO
PROVIDE ADEQUATE
CROSS-FLOW OF AIR
VENTILATION
EXHAUST MUFFLER
ENCLOSED WITHIN
GENERATOR ENCLOSURE
Installation Guidelines for Protector Diesel Generators
884 [34.8]
CENTER OF GRAVITY
AIR INTAKE
COOLANT RECOVERY BOTTLE
(BOTH SIDES)
RADIATOR FILL CAP ACCESS
REFERENCE OWNERS MANUAL FOR PERIODIC
REPLACEMENT PART LISTINGS.
BATTERY 12 VOLT
REMOVE COVER FOR
NEGATIVE GROUND
ACCESS TO RADIATOR
FILL CAP
TOP VIEW
631 [24.8]
DOOR WIDTH
TYP
LEFT SIDE VIEW
SERVICE ITEM 2.5L WEIGHT DATA WITH EMPTY BASETANK
(SEE NOTE 5)
OIL FILL CAP RIGHT SIDE
GENERATOR AS SHOWN 693 [1528]
OIL DIP STICK RIGHT SIDE
WITH WOODEN SHIPPING SKID 731.6 [1600]
OIL FILTER RIGHT SIDE
OIL DRAIN HOSE LEFT SIDE WEIGHT: KG [LBS]
DIMENSIONS: MM [INCH]
RADIATOR DRAIN HOSE LEFT SIDE
LEFT SIDE
ROOF
AIR CLEANER ELEMENT LEFT SIDE
MUFFLER FRONT
FAN BELT EITHER SIDE
BATTERY LEFT SIDE
REAR ENCLOSURE
COVER PANEL
SEE NOTE 4
CUSTOMER ACCESS
ASSEMBLY, CONTROL
PANEL ACCESS,
BATTERY CHARGER
LOCATED WITHIN
SEE NOTE 4
1284 [50.6]
OVERALL
CIRCUIT BREAKER
HEIGHT
SEE NOTE 3
REMOVABLE
STUB-UP COVER
SEE NOTE 4
776 [30.6]
OVERALL WIDTH
REAR VIEW

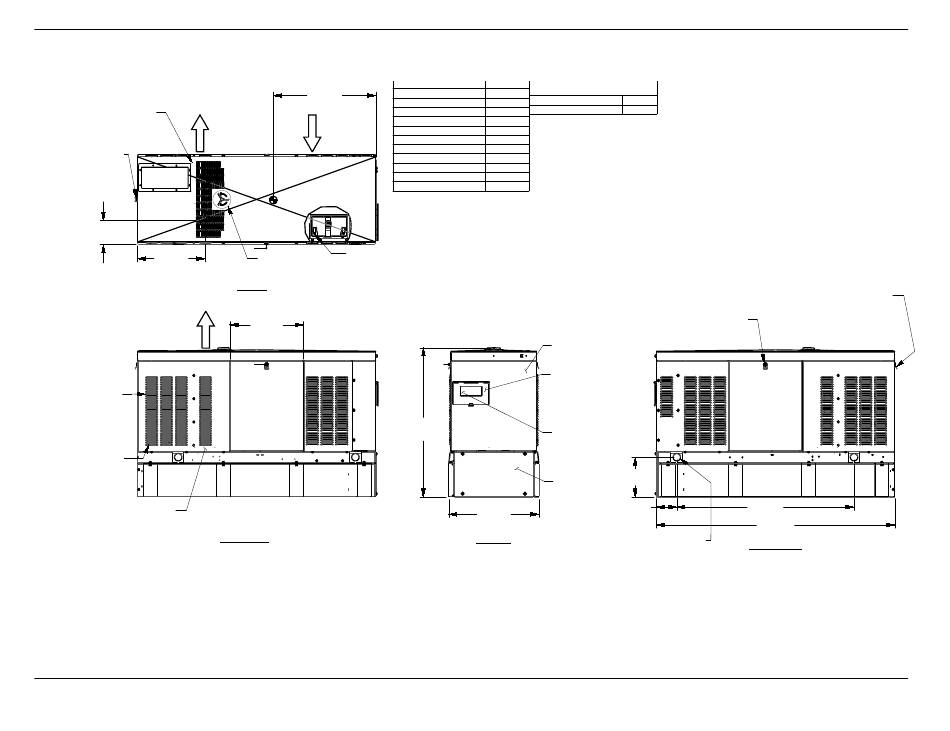

Installation Drawings
NOTES:
1. MINIMUM RECOMMENDED CONCRETE PAD SIZE: 1092 (43") WIDE X 1887 (74.3") LONG.
REFERENCE INSTALLATION GUIDE SUPPLIED WITH UNIT FOR CONCRETE PAD GUIDELINES.
2. ALLOW SUFFICIENT ROOM ON ALL SIDES OF THE GENERATOR FOR MAINTENANCE
AND SERVICING. THIS UNIT MUST BE INSTALLED IN ACCORDANCE WITH CURRENT
APPLICABLE NFPA 37 AND NFPA 70 STANDARDS AS WELL AS ANY OTHER FEDERAL,
STATE, AND LOCAL CODES.
3. CONTROL PANEL / CIRCUIT BREAKER INFORMATION:
- SEE SPECIFICATION SHEET OR OWNERS MANUAL
- ACCESSIBLE THROUGH CUSTOMER ACCESS ASSEMBLY DOOR ON REAR OF GENERATOR.
4. REMOVE THE REAR STUB-UP AND REAR ENCLOSURE COVER PANEL TO ACCESS
THE STUB-UP AREAS AS FOLLOWS:
- HIGH VOLTAGE CONNECTION INCLUDING AC LOAD LEAD CONDUIT CONNECTION,
NEUTRAL CONNECTION, AND BATTERY CHARGER 120 VOLT AC (0.5 AMP MAX) CONNECTION.
- LOW VOLTAGE CONNECTION INCLUDING TRANSFER SWITCH CONTROL WIRES
AND ACCESSORY RELAY CONNECTION (QTY 4)
5. CENTER OF GRAVITY AND WEIGHT MAY CHANGE DUE TO UNIT OPTIONS.
6. BOTTOM OF GENERATOR SET MUST BE ENCLOSED TO PREVENT PEST INTRUSION AND
RECIRCULATION OF DISCHARGE AIR AND/OR IMPROPER COOLING AIR FLOW.
7. REFERENCE OWNERS MANUAL FOR LIFTING WARNINGS.
8. MOUNTING BOLTS OR STUDS TO MOUNTING SURFACE SHALL BE 5/8-11 GRADE 5
(USE STANDARD SAE TORQUE SPECS)
9. MUST ALLOW FREE FLOW OF INTAKE AIR, DISCHARGE AIR AND EXHAUST. SEE SPEC
SHEET FOR MINIMUM AIR FLOW AND MAXIMUM RESTRICTION REQUIREMENTS.
10. GENERATOR MUST BE INSTALLED SUCH THAT FRESH COOLING AIR IS AVAILABLE
AND THAT DISCHARGE AIR FROM RADIATOR IS NOT RECIRCULATED.
LIFT OFF DOOR PROVIDES ACCESS
TO: FUEL FILL, FUEL LEVEL GAUGE,
EMERGENCY VENT, OUTER TANK
VISE ACTION LATCH, ONE
EMERGENCY VENT, OPTIONAL 90%
PER DOOR, ONE LIFT-OFF
DOOR ON FRONT, RIGHT,
AND LEFT SIDES
342 [13.5]
TYP
177 [7.0] 1525 [60.0]
TYP TYP
2052 [80.8]
OVERALL LENGTH
LIFTING PROVISION (4 PLACES)
SEE NOTES 5, 7 AND RIGHT SIDE VIEW
CENTER OF GRAVITY
DIMENSIONS
NORMAL VENT, INNER TANK
ALARM ASSEMBLY, OPTIONAL 5
GALLON SPILL BOX
35
