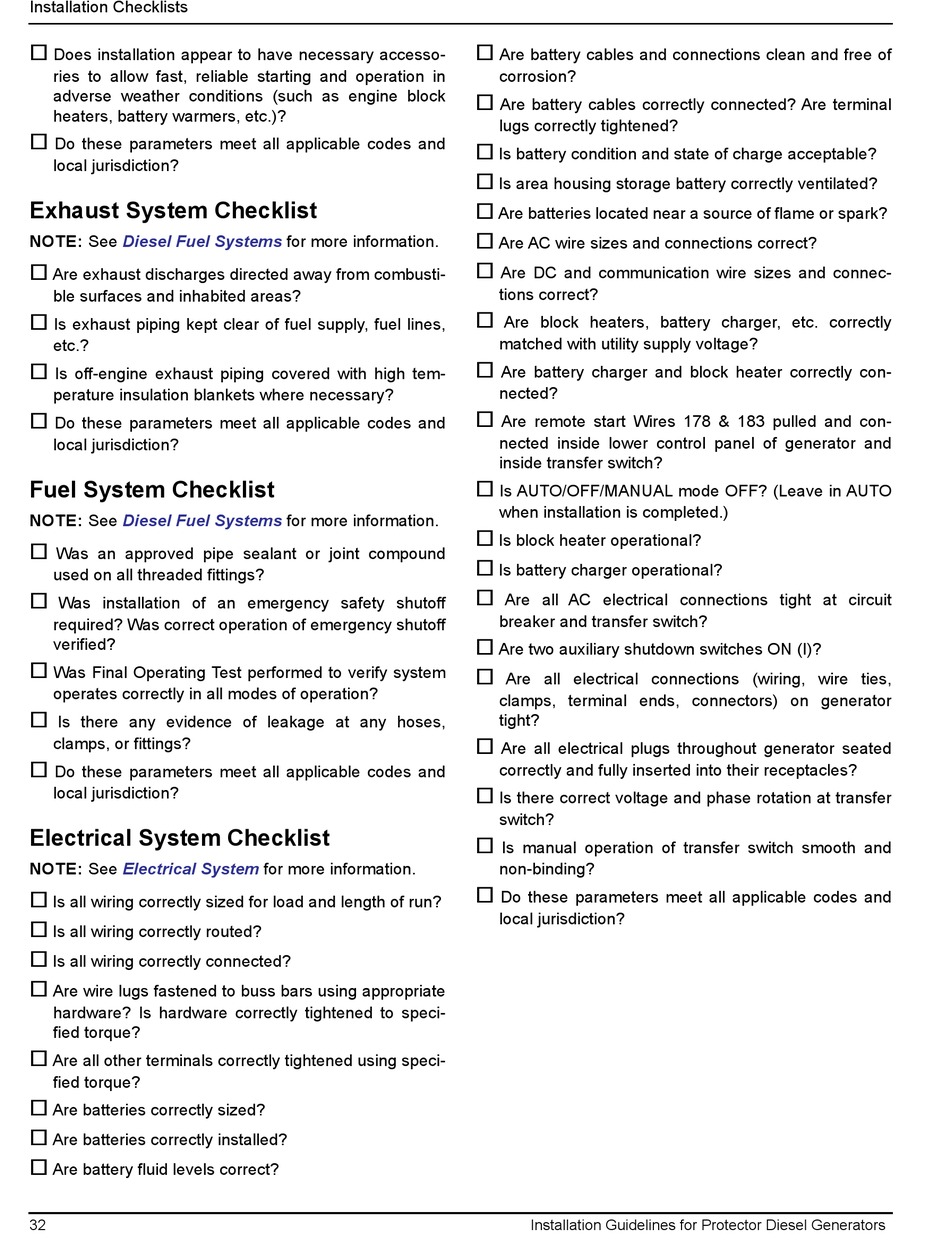

Installation Checklists

Does installation appear to have necessary accesso-
ries to allow fast, reliable starting and operation in
adverse weather conditions (such as engine block
heaters, battery warmers, etc.)?

Do these parameters meet all applicable codes and
local jurisdiction?

Exhaust System Checklist

NOTE: See Diesel Fuel Systems

Are exhaust discharges directed away from combusti-
ble surfaces and inhabited areas?

Is exhaust piping kept clear of fuel supply, fuel lines,
etc.?

Is off-engine exhaust piping covered with high tem-
perature insulation blankets where necessary?

Do these parameters meet all applicable codes and
local jurisdiction?

Fuel System Checklist

NOTE: See Diesel Fuel Systems

Was an approved pipe sealant or joint compound
used on all threaded fittings?

Was installation of an emergency safety shutoff
required? Was correct operation of emergency shutoff
verified?

Was Final Operating Test performed to verify system
operates correctly in all modes of operation?

Is there any evidence of leakage at any hoses,
clamps, or fittings?

Do these parameters meet all applicable codes and
local jurisdiction?

Electrical System Checklist

NOTE: See Electrical System

Is all wiring correctly sized for load and length of run?

Is all wiring correctly routed?

Is all wiring correctly connected?

Are wire lugs fastened to buss bars using appropriate
hardware? Is hardware correctly tightened to speci-
fied torque?

Are all other terminals correctly tightened using speci-
fied torque?

Are batteries correctly sized?

Are batteries correctly installed?

Are battery fluid levels correct?
32
for more information.
for more information.
for more information.

Are battery cables and connections clean and free of
corrosion?

Are battery cables correctly connected? Are terminal
lugs correctly tightened?

Is battery condition and state of charge acceptable?

Is area housing storage battery correctly ventilated?

Are batteries located near a source of flame or spark?

Are AC wire sizes and connections correct?

Are DC and communication wire sizes and connec-
tions correct?

Are block heaters, battery charger, etc. correctly
matched with utility supply voltage?

Are battery charger and block heater correctly con-
nected?

Are remote start Wires 178 & 183 pulled and con-
nected inside lower control panel of generator and
inside transfer switch?

Is AUTO/OFF/MANUAL mode OFF? (Leave in AUTO
when installation is completed.)

Is block heater operational?

Is battery charger operational?

Are all AC electrical connections tight at circuit
breaker and transfer switch?

Are two auxiliary shutdown switches ON (I)?

Are all electrical connections (wiring, wire ties,
clamps, terminal ends, connectors) on generator
tight?

Are all electrical plugs throughout generator seated
correctly and fully inserted into their receptacles?

Is there correct voltage and phase rotation at transfer
switch?

Is manual operation of transfer switch smooth and
non-binding?

Do these parameters meet all applicable codes and
local jurisdiction?
Installation Guidelines for Protector Diesel Generators
