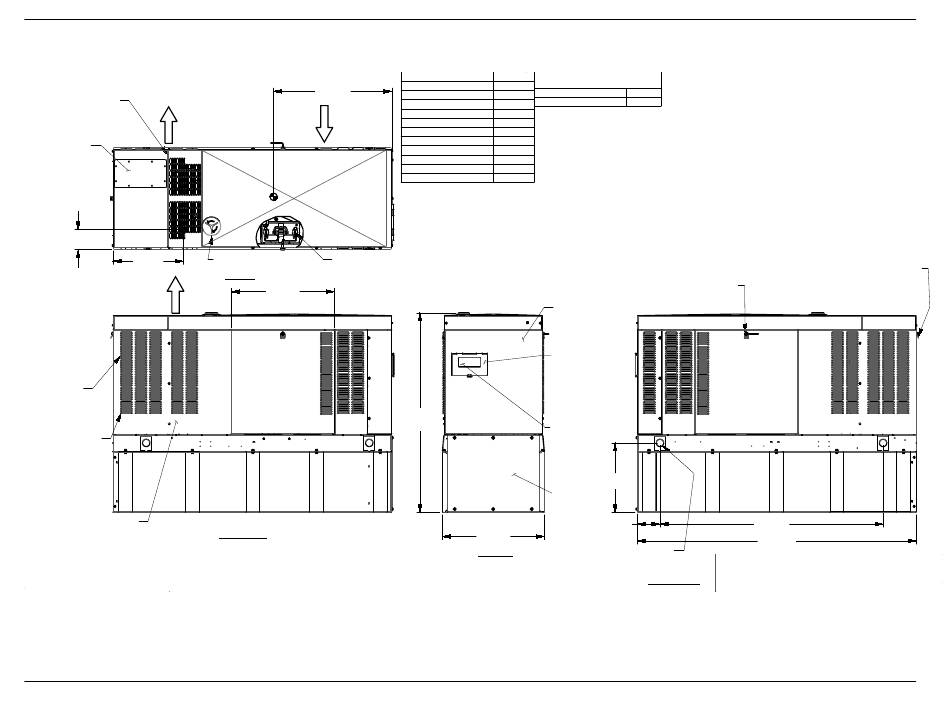

D2.2L G22–132 Gal Tank (10000029492, page 1 of 2)
INTERNAL DIVIDER PANEL
SEPARATES FUEL TANK
RADIATOR/EXHAUST
VENTILATION DUCT FROM
DISCHARGE AIR
THE ENGINE, ALTERNATOR
(BOTH SIDES)
AND EXHAUST SYSTEM
REMOVE PANEL TO
ALLOW TANK VENTS
TO TERMINATE OUTSIDE
OF THE GENERATOR
ENCLOSURE (CHECK
LOCAL AND STATE
CODE FOR
APPLICABILITY)
173 [6.8]
EXHAUST OUTLET
611 [24.0]
EXHAUST OUTLET
RADIATOR/EXHAUST
DISCHARGE AIR
FUEL TANK
VENTILATION DUCT
OPEN PUNCHED
LOUVERS TYPICAL ON
BOTH SIDES OF FUEL
TANK VENTILATION
DUCT TO PROVIDE
ADEQUATE CROSS-FLOW
OF AIR VENTILATION
EXHAUST MUFFLER
ENCLOSED WITHIN
GENERATOR ENCLOSURE
DRAWING CREATED FROM PRO/ENGINEER
Installation Guidelines for Protector Diesel Generators
1029 [40.5]
CENTER OF GRAVITY
AIR INTAKE
(BOTH SIDES)
BATTERY 12 VOLT
REMOVE COVER FOR ACCESS
NEGATIVE GROUND
TO RADIATOR FILL CAP
TOP VIEW
897 [35.3]
DOOR WIDTH
TYP
LEFT SIDE VIEW
SERVICE ITEM 2.2L WEIGHT DATA WITH EMPTY BASETANK
(SEE NOTE 5)
OIL FILL CAP RIGHT SIDE
GENERATOR AS SHOWN 939 [2070]
OIL DIP STICK RIGHT SIDE
WITH WOODEN SHIPPING SKID 985 [2172]
OIL FILTER RIGHT SIDE
OIL DRAIN HOSE RIGHT SIDE WEIGHT: KG [LBS]
DIMENSIONS: MM [INCH]
RADIATOR DRAIN HOSE LEFT SIDE
COOLANT RECOVERY BOTTLE LEFT SIDE
RADIATOR FILL CAP ACCESS ROOF
AIR CLEANER ELEMENT RIGHT SIDE
MUFFLER FRONT SIDE
FAN BELT EITHER SIDE
BATTERY LEFT SIDE
REFERENCE OWNERS MANUAL FOR
PERIODIC REPLACEMENT PART LISTINGS
REAR ENCLOSURE
COVER PANNEL,
SEE NOTE 4
CUSTOMER ACCESS
ASSEMBLY, CONTROL
PANEL ACCESS,
BATTERY CHARGER
LOCATED WITHIN
SEE NOTE 4
1733 [68.2]
OVERALL
HEIGHT CIRCUIT BREAKER
SEE NOTE 3
REMOVABLE
STUB-UP COVER
SEE NOTE 4
888 [35.0]
OVERALL WIDTH
LIFTING PROVISIONS (4 PLACES)
REAR VIEW
SEE NOTES 5, 8 AND CENTER
NOTES:
1. MINIMUM RECOMMENDED CONCRETE PAD SIZE: 1194 (47") WIDE X 2261 (89") LONG.
REFERENCE INSTALLATION GUIDE SUPPLIED WITH UNIT
FOR CONCRETE PAD GUIDELINES
2. ALLOW SUFFICIENT ROOM ON ALL SIDES OF THE GENERATOR FOR MAINTENANCE
AND SERVICING. THIS UNIT MUST BE INSTALLED IN ACCORDANCE WITH CURRENT
APPLICABLE NFPA 37 AND NFPA 70 STANDARDS AS WELL AS ANY OTHER FEDERAL,
STATE, AND LOCAL CODES.
3. CONTROL PANEL / CIRCUIT BREAKER INFORMATION:
- SEE SPECIFICATION SHEET OR OWNERS MANUAL
- ACCESSIBLE THROUGH CUSTOMER ACCESS ASSEMBLY DOOR ON REAR OF
GENERATOR
4. REMOVE THE REAR TANK AND REAR ENCLOSURE COVER PANEL TO ACCESS
THE STUB-UP AREAS AS FOLLOWS:
- HIGH VOLTAGE CONNECTION INCLUDING AC LOAD LEAD CONDUIT CONNECTION
NEUTRAL CONNECTION, BATTERY CHARGER 120 VOLT AC (0.5 AMP MAX) CONNECTION.
- LOW VOLTAGE CONNECTIONS INCLUDING TRANSFER SWITCH CONTROL WIRES
5. CENTER OF GRAVITY AND WEIGHT MAY CHANGE DUE TO UNIT OPTIONS.
6. ENGINE SERVICE CONNECTIONS
OIL DRAIN: 3/8" NPT
EXHAUST OUTLET: 2" O.D.
7. BOTTOM OF GENERATOR SET MUST BE ENCLOSED TO PREVENT PEST INTRUSION AND
AND RECIRCULATION OF DISCHARGE AIR AND/OR IMPROPER COOLING AIR FLOW.
8. REFERENCE OWNERS MANUAL FOR LIFTING WARNINGS.
9. MOUNTING BOLTS OR STUDS TO CONCRETE PAD SHALL BE 5/8-11 GRADE 5
(USE STANDARD SAE TORQUE SPECS)
VISE ACTION LATCH, ONE PER
DOOR, ONE LIFT-OFF DOOR ON
FRONT, RIGHT AND LEFT SIDES
603 [23.7]
TYP
197 [7.8] 1938 [76.3]
TYP TYP
2424 [95.4]
OVERALL LENGTH
OF GRAVITY DIMENSIONS
RIGHT SIDE VIEW
TITLE
Installation Drawings
LIFT DOOR PROVIDES ACCESS TO: FUEL
FILL, FUEL LEVEL GAUGE, NORMAL VENT,
INNER TANK EMERGENCY VENT, OUTER
TANK EMERGENCY VENT, OPTIONAL 90%
ALARM ASSEMBLY, OPTIONAL 5 GALLON
SPILL BOX
43
