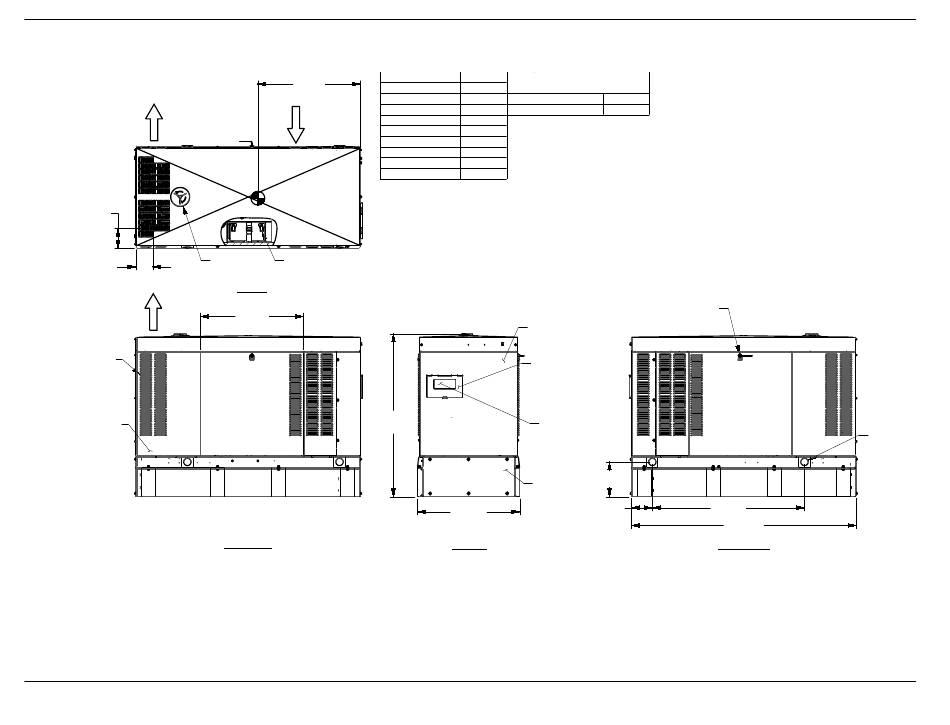

D3.4L G16 Single Wall (10000042752, page 1 of 2)
RADIATOR/EXHAUST
DISCHARGE AIR
(BOTH SIDES)
173 [6.8]
146 [5.7]
EXHAUST OUTLET
RADIATOR/EXHAUST
DISCHARGE AIR
OPEN PUNCHED LOUVERS,
TYPICAL ON BOTH SIDES
OF FUEL TANK
VENTILATION DUCT TO
PROVIDE ADEQUATE
CROSS-FLOW OF AIR
VENTILATION
EXHAUST MUFFLER
ENCLOSED WITHIN
GENERATOR ENCLOSURE
Installation Guidelines for Protector Diesel Generators
892 [35.1]
CENTER OF GRAVITY
SEE NOTE 5
AIR INTAKE
(BOTH SIDES)
RADIATOR DRAIN HOSE
AIR CLEANER ELEMENT
REFERENCE OWNERS MANUAL FOR PERIODIC
REPLACEMENT PART LISTINGS.
BATTERY 12 VOLT
REMOVE COVER
NEGATIVE GROUND
FOR ACCESS TO
RADIATOR FILL CAP
TOP VIEW
897 [35.3]
DOOR WIDTH
TYP
1414.4 [55.7]
OVERALL
HEIGHT
LEFT SIDE VIEW
SERVICE ITEM 3.4L
WEIGHT DATA WITH EMPTY BASETANK
(SEE NOTE 5)
OIL FILL CAP RIGHT SIDE
OIL DIP STICK RIGHT SIDE GENERATOR AS SHOWN
WITH WOODEN SHIPPING SKID
OIL FILTER RIGHT SIDE
OIL DRAIN HOSE RIGHT SIDE
WEIGHT: KG [LBS]
DIMENSIONS: MM [INCH]
LEFT SIDE
RIGHT SIDE
MUFFLER FRONT
FAN BELT EITHER SIDE
BATTERY LEFT SIDE
REAR ENCLOSURE
COVER PANEL
SEE NOTE 4
CUSTOMER ACCESS
ASSEMBLY, CONTROL
PANEL ACCESS AND
BATTERY CHARGER
LOCATED WITHIN
SEE NOTE 4
CIRCUIT BREAKER
SEE NOTE 3
REMOVABLE
STUB-UP COVER
SEE NOTE 4
888.1 [35.0]
OVERALL WIDTH
REAR VIEW
NOTES:
1. MINIMUM RECOMMENDED CONCRETE PAD SIZE: 1194 (47") WIDE X 2718
886 [1953] (107") LONG. REFERENCE INSTALLATION GUIDE SUPPLIED WITH UNIT
FOR CONCRETE PAD GUIDELINES
925 [2039]
2. ALLOW SUFFICIENT ROOM ON ALL SIDES OF THE GENERATOR FOR MAINTENANCE
AND SERVICING. THIS UNIT MUST BE INSTALLED IN ACCORDANCE WITH CURRENT
APPLICABLE NFPA 37 AND NFPA 70 STANDARDS AS WELL AS ANY OTHER FEDERAL,
STATE AND LOCAL CODES.
3. CONTROL PANEL / CIRCUIT BREAKER INFORMATION:
- SEE SPECIFICATION SHEET OR OWNERS MANUAL
- ACCESSIBLE THROUGH CUSTOMER ACCESS ASSEMBLY DOOR ON REAR OF
GENERATOR
4. REMOVE THE REAR TANK AND REAR ENCLOSURE COVER PANEL TO ACCESS
THE STUB-UP AREAS AS FOLLOWS:
- HIGH VOLTAGE CONNECTION INCLUDING AC LOAD LEAD CONDUIT CONNECTION,
NEUTRAL CONNECTION, BATTERY CHARGER 120 VOLT AC (0.5 AMP MAX) CONNECTION.
- LOW VOLTAGE CONNECTIONS INCLUDING TRANSFER SWITCH CONTROL WIRES
5. CENTER OF GRAVITY AND WEIGHT MAY CHANGE DUE TO UNIT OPTIONS.
6. ENGINE SERVICE CONNECTIONS
OIL DRAIN: 3/8" NPT
EXHAUST OUTLET: 2" O.D.
7. BOTTOM OF GENERATOR SET MUST BE ENCLOSED TO PREVENT PEST INTRUSION AND
RECIRCULATION OF DISCHARGE AIR AND/OR IMPROPER COOLING AIR FLOW.
8. REFERENCE OWNERS MANUAL FOR LIFTING WARNINGS.
9. MOUNTING BOLTS OR STUDS TO CONCRETE PAD SHALL BE 5/8-11 GRADE 5
(USE STANDARD SAE TORQUE SPECS)
VISE ACTION LATCH, ONE PER
DOOR AND ONE LIFT-OFF DOOR
PER SIDE OF THE GENERATOR
301.9 [11.9]
TYP
182.4 [7.2] 1322 [52.0]
TYP TYP
1953.8 [76.9]
OVERALL LENGTH
RIGHT SIDE VIEW
Installation Drawings
LIFTING PROVISIONS SEE
NOTE 5, 8 AND CENTER
OF GRAVITY DIMENSION
(4 PLACES)
45
