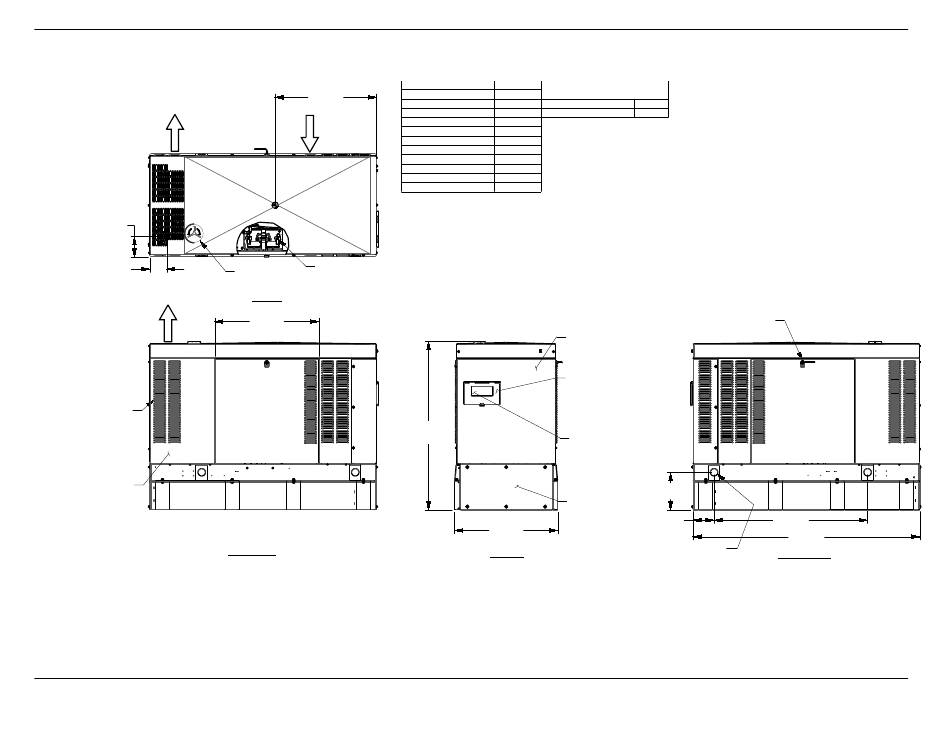

D2.2L G22 Single Wall (10000018294, page 1 of 2)
RADIATOR/EXHAUST
DISCHARGE AIR
(BOTH SIDES)
173 [6.8]
EXHAUST
OUTLET
146 [5.8]
EXHAUST
OUTLET
RADIATOR/EXHAUST
DISCHARGE AIR
OPEN PUNCHED LOUVERS
TYPICAL ON BOTH SIDES OF
FUEL TANK VENTILATION
DUCT TO PROVIDE ADEQUATE
CROSS-FLOW OF AIR
VENTILATION
EXHAUST MUFFLER
ENCLOSED WITHIN
GENERATOR ENCLOSURE
Installation Guidelines for Protector Diesel Generators
874 [34.4]
CENTER OF GRAVITY
AIR INTAKE
COOLANT RECOVERY BOTTLE
(BOTH SIDES)
RADIATOR FILL CAP ACCESS
REFERENCE OWNERS MANUAL FOR
PERIODIC REPLACEMENT PART LISTINGS
BATTERY 12 VOLT
REMOVE COVER FOR
NEGATIVE GROUND
ACCESS TO RADIATOR
FILL CAP
TOP VIEW
897 [35.3]
DOOR WIDTH
TYP
LEFT SIDE VIEW
SERVICE ITEM 2.2L
WEIGHT DATA WITH EMPTY BASETANK
(SEE NOTE 5)
OIL FILL CAP RIGHT SIDE
OIL DIP STICK RIGHT SIDE GENERATOR AS SHOWN 783 [1726]
OIL FILTER RIGHT SIDE WITH WOODEN SHIPPING SKID 819 [1806]
OIL DRAIN HOSE RIGHT SIDE
WEIGHT: KG [LBS]
RADIATOR DRAIN HOSE LEFT SIDE DIMENSIONS: MM [INCH]
LEFT SIDE
ROOF
AIR CLEANER ELEMENT RIGHT SIDE
MUFFLER FRONT SIDE
FAN BELT EITHER SIDE
BATTERY LEFT SIDE
REAR ENCLOSURE
COVER PANEL
SEE NOTE 4
CUSTOMER ACCESS
ASSEMBLY, CONTROL
PANEL ACCESS,
BATTERY CHARGER
LOCATED WITHIN,
SEE NOTE 4
1452 [57.2]
OVERALL
CIRCUIT BREAKER
HEIGHT
SEE NOTE 3
REMOVABLE
STUB-UP COVER
SEE NOTE 4
888 [35.0]
OVERALL WIDTH
REAR VIEW
Installation Drawings
NOTES:
1. MINIMUM RECOMMENDED CONCRETE PAD SIZE: 1194 (47") WIDE X 2261 (89") LONG.
REFERENCE INSTALLATION GUIDE SUPPLIED WITH UNIT
FOR CONCRETE PAD GUIDELINES
2. ALLOW SUFFICIENT ROOM ON ALL SIDES OF THE GENERATOR FOR MAINTENANCE
AND SERVICING. THIS UNIT MUST BE INSTALLED IN ACCORDANCE WITH CURRENT
APPLICABLE NFPA 37 AND NFPA 70 STANDARDS AS WELL AS ANY OTHER FEDERAL,
STATE, AND LOCAL CODES.
3. CONTROL PANEL / CIRCUIT BREAKER INFORMATION:
- SEE SPECIFICATION SHEET OR OWNERS MANUAL
- ACCESSIBLE THROUGH CUSTOMER ACCESS ASSEMBLY DOOR ON REAR OF
GENERATOR
4. REMOVE THE REAR TANK AND REAR ENCLOSURE COVER PANEL TO ACCESS
THE STUB-UP AREAS AS FOLLOWS:
- HIGH VOLTAGE CONNECTION INCLUDING AC LOAD LEAD CONDUIT CONNECTION
NEUTRAL CONNECTION, BATTERY CHARGER 120 VOLT AC (0.5 AMP MAX) CONNECTION.
- LOW VOLTAGE CONNECTIONS INCLUDING TRANSFER SWITCH CONTROL WIRES
5. CENTER OF GRAVITY AND WEIGHT MAY CHANGE DUE TO UNIT OPTIONS.
6. ENGINE SERVICE CONNECTIONS
OIL DRAIN: 3/8" NPT
EXHAUST OUTLET: 2" O.D.
7. BOTTOM OF GENERATOR SET MUST BE ENCLOSED TO PREVENT PEST INTRUSION AND
AND RECIRCULATION OF DISCHARGE AIR AND/OR IMPROPER COOLING AIR FLOW.
8. REFERENCE OWNERS MANUAL FOR LIFTING WARNINGS.
9. MOUNTING BOLTS OR STUDS TO CONCRETE PAD SHALL BE 5/8-11 GRADE 5
(USE STANDARD SAE TORQUE SPECS)
VISE ACTION LATCH, ONE PER
DOOR, ONE LIFT-OFF DOOR
PER SIDE OF GENERATOR
324 [12.7]
TYP
182 [7.2] 1322 [52.0]
TYP TYP
1954 [76.9]
OVERALL LENGTH
LIFTING PROVISION (4 PLACES)
SEE NOTES 5, 8 AND CENTER RIGHT SIDE VIEW
OF GRAVITY DIMENSIONS
39
