Accessories; Accessory Attachments; D Battery Pack; D Belt Clip - Icom IC-F29SR2 Operating Manual

1
Section

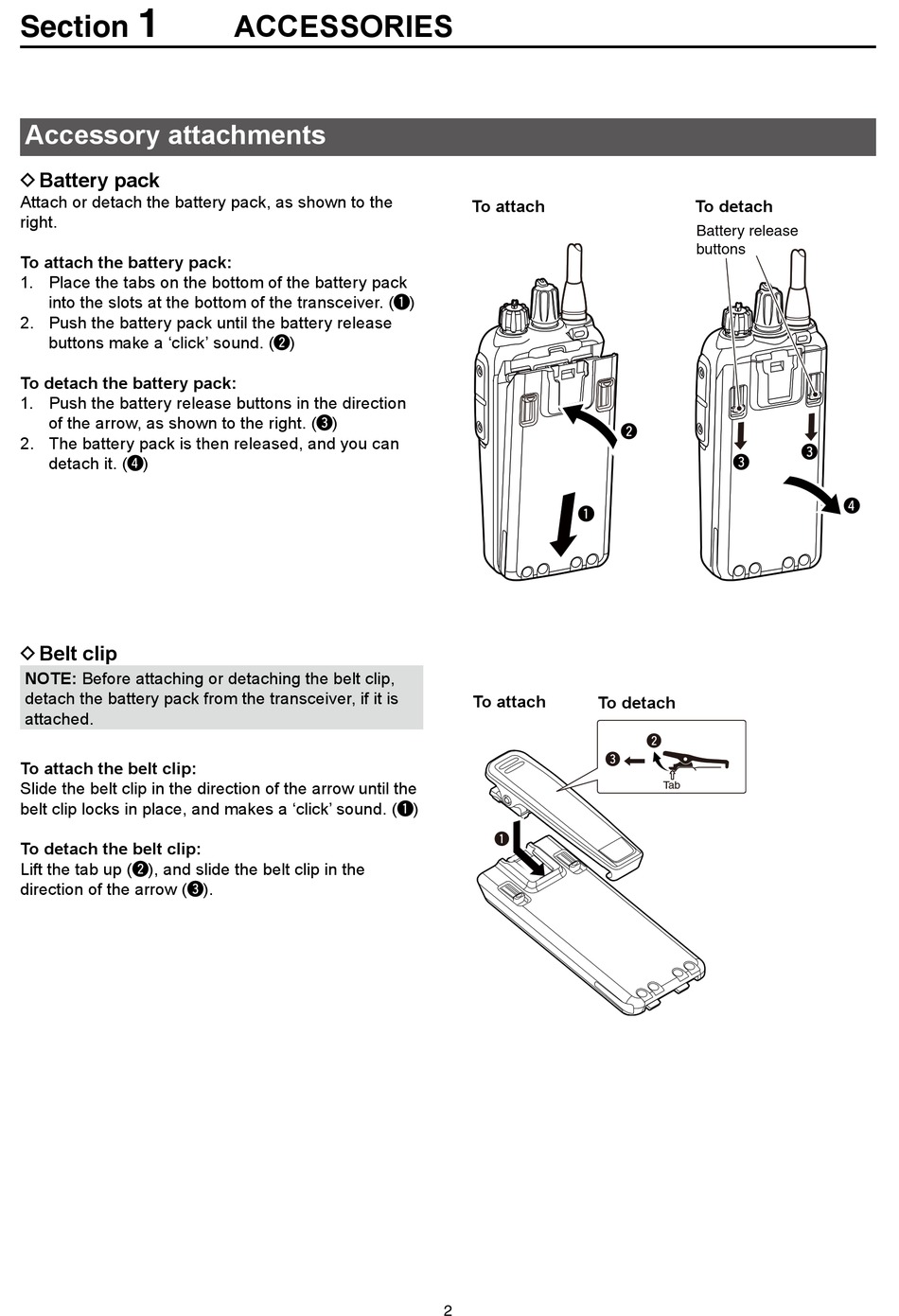

Accessory attachments

D Battery pack

Attach or detach the battery pack, as shown to the
right.
To attach the battery pack:
1. Place the tabs on the bottom of the battery pack
into the slots at the bottom of the transceiver. (q)
2. Push the battery pack until the battery release
buttons make a 'click' sound. (w)
To detach the battery pack:
1. Push the battery release buttons in the direction
of the arrow, as shown to the right. (e)
2. The battery pack is then released, and you can
detach it. (r)

D Belt clip

NOTE: Before attaching or detaching the belt clip,
detach the battery pack from the transceiver, if it is
attached.
To attach the belt clip:
Slide the belt clip in the direction of the arrow until the
belt clip locks in place, and makes a 'click' sound. (q)
To detach the belt clip:
Lift the tab up (w), and slide the belt clip in the
direction of the arrow (e).

ACCESSORIES

To attach
q
To attach
To detach
e
q
2
To detach
Battery release
buttons
w
e
w
Tab
e
r
