D Jack Cover - Icom IC-F29SR2 Operating Manual

1
ACCESSORIES
Accessory attachments (Continued)

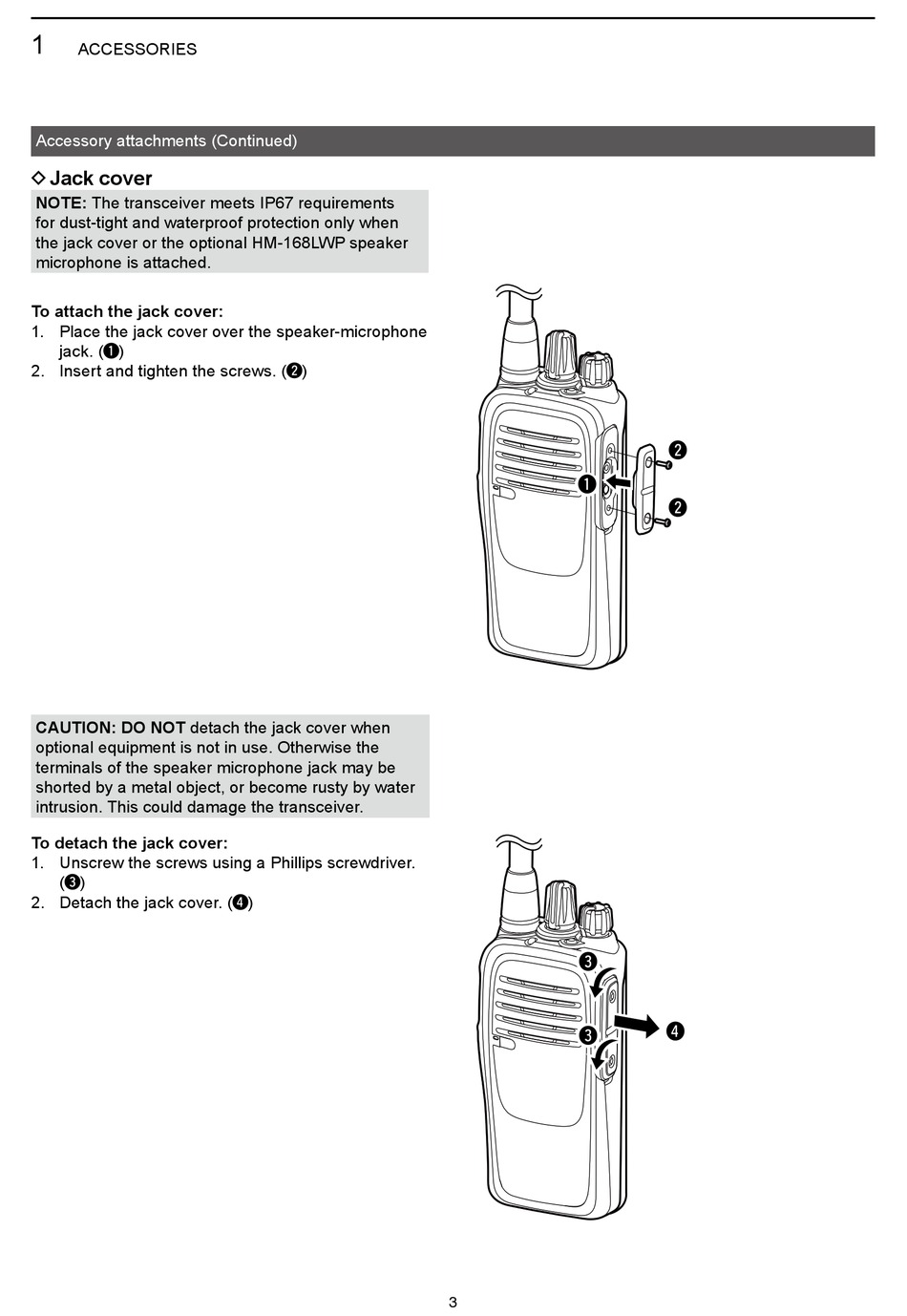

D Jack cover

NOTE: The transceiver meets IP67 requirements
for dust-tight and waterproof protection only when
the jack cover or the optional HM-168LWP speaker
microphone is attached.
To attach the jack cover:
1. Place the jack cover over the speaker-microphone
jack. (q)
2. Insert and tighten the screws. (w)
CAUTION: DO NOT detach the jack cover when
optional equipment is not in use. Otherwise the
terminals of the speaker microphone jack may be
shorted by a metal object, or become rusty by water
intrusion. This could damage the transceiver.
To detach the jack cover:
1. Unscrew the screws using a Phillips screwdriver.
(e)
2. Detach the jack cover. (r)
q
e
e
3
w
w
r
