Using the Analyzer Function

For procedures that require lead placement, the analyzer function tests the pacing and sending
thresholds to determine if the location is acceptable.
To use the analyzer function:

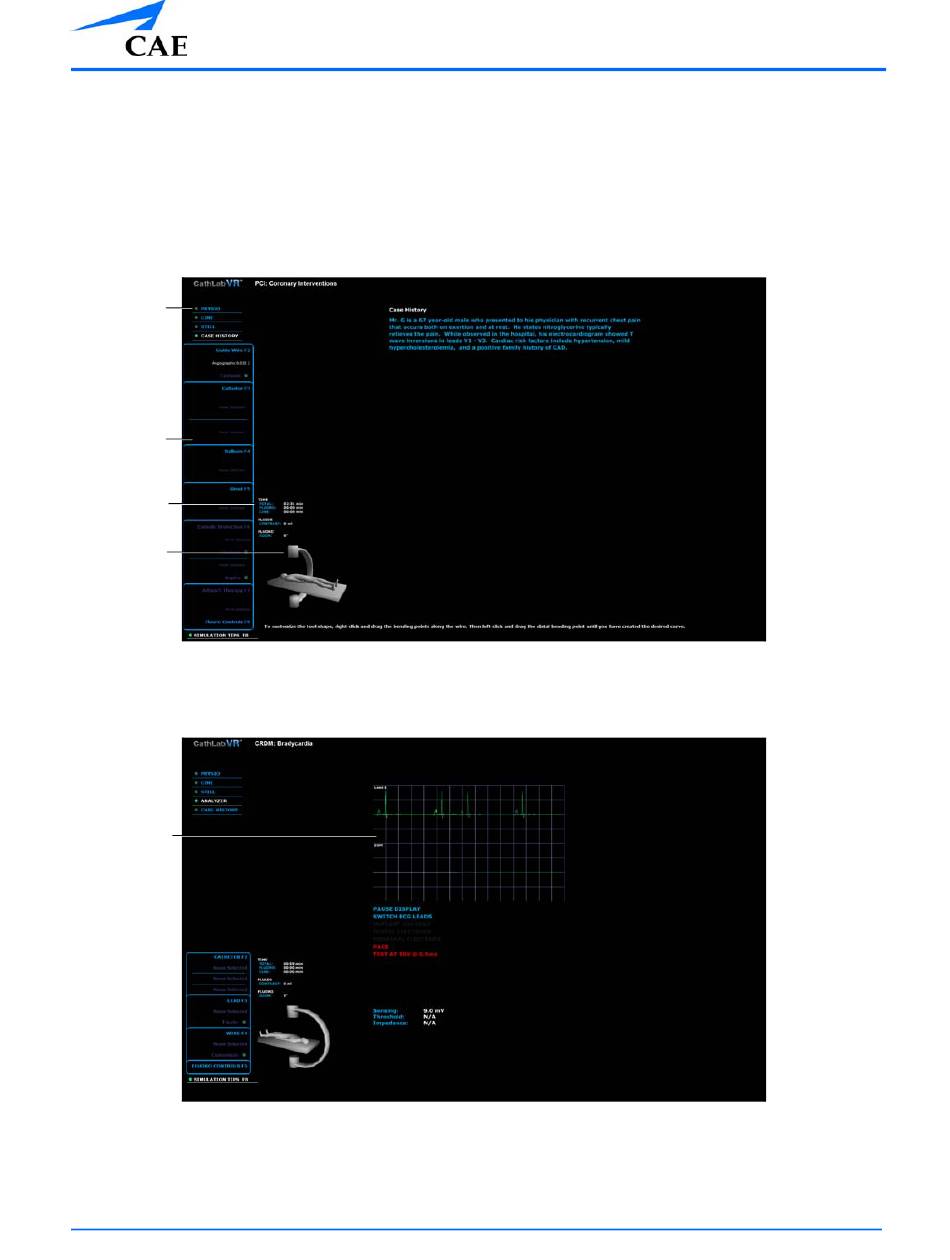

1. From the features options list, select Analyzer
The feature
options list
The tool
selection
panel
The C-Arm
coordinates
The C-Arm
glyph
The analyzer function appears on the left monitor.
The Analyzer
function
Pacing is initially inhibited and sensing thresholds can be evaluated.
2. Select PACE to begin pacing at 125 bpm
