CAELucinaAR

with HoloLens 2

User Guide

Your worldwide

training partner

of choice

Need help?

Do you have a question about the LucinaAR and is the answer not in the manual?

Questions and answers

Summary of Contents for CAE LucinaAR

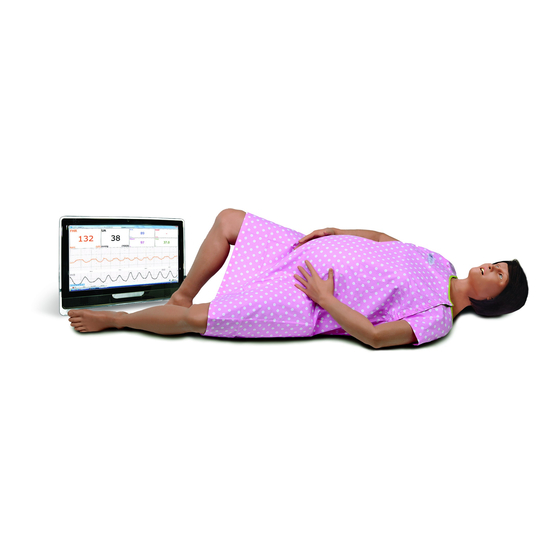

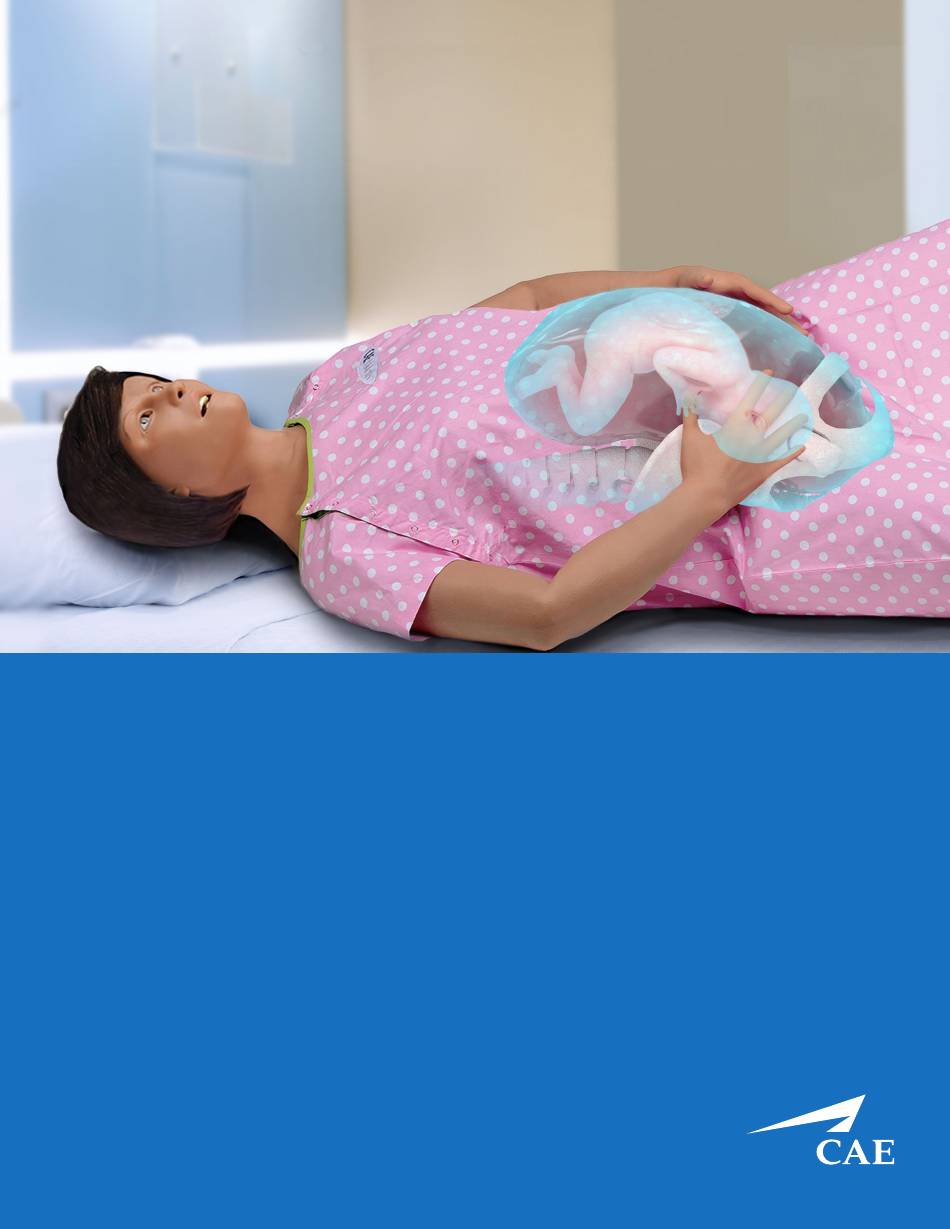

Page 1 CAELucinaAR with HoloLens 2 User Guide Your worldwide training partner of choice...
Page 2 This document, including the information contained herein, is confidential and/or proprietary to CAE Inc., and shall not be reproduced or disclosed in whole or in part, or used for any purpose whatsoever without the prior written authorization of CAE Inc.
Page 4 Step 3: Download HoloLens 2 Updates from Microsoft Store......43 Step 4: Check for CAE LucinaAR Application Updates....... 45 Manage Network Connections.
Page 7 In fueling areas, sparks can occur and cause an explosion or fire. When you are in a fueling area, turn off your HoloLens 2 and do not remove or install battery chargers, AC adapters, or any other accessory. ©2020 CAE 905K472552 v1.1...
Page 8 Seizures may also cause loss of consciousness or convulsions that can lead to injury from falling down or striking nearby objects. Immediately stop using the HoloLens 2 and consult a doctor if you experience any of these symptoms. ©2020 CAE 905K472552 v1.1...
Page 9 • Do not wear over injured skin. • Adjust the headband only until snug – avoid tightening the headband uncomfortably. • If your skin becomes irritated, stop using the HoloLens 2 device. • If symptoms are severe or persist, consult your physician. ©2020 CAE 905K472552 v1.1...
Page 11 • Setup Hololens 2: https://docs.microsoft.com/en-us/hololens/hololens2-start • Using Gestures: https://docs.microsoft.com/en-us/hololens/hololens2-basic-usage • Connect to Miracast: https://docs.microsoft.com/en-us/hololens/hololens-connect-devices#connect-to- miracast • Environment considerations for HoloLens 2: https://docs.microsoft.com/en-us/hololens/hololens-environment-considerations • Caring for and cleaning your HoloLens 2: https://docs.microsoft.com/en-us/hololens/hololens2-hardware • Additional instructions and references: https://docs.microsoft.com/en-us/hololens/ ©2020 CAE 905K472552 v1.1...
Page 13 Attach for comfort when wearing the HoloLens 2 for an extended period USB-C Cable Connect to power supply for charging or connect to a computer Power supply 18W charger, 9V at 2A Microfiber cloth Use to clean the visor ©2020 CAE 905K472552 v1.1...
Page 14 CAELucinaAR Equipment Overview For more information about the HoloLens 2 hardware, go to this link: https://docs.microsoft.com/en-us/hololens/hololens2-hardware ©2020 CAE 905K472552 v1.1...
Page 15 The Summon Menu gesture, also referred to as the Start gesture, is used to open the Start menu and navigation menus. If a user is uncertain of what to do, the Summon Menu gesture is a good way to get reoriented. ©2020 CAE 905K472552 v1.1...
Page 16 3. The Start menu or navigation menu will open. 4. To close the menu, repeat the Summon Menu gesture while the Start menu is open. You can also look at the Start menu and say, “Close”. Summon Menu Gesture ©2020 CAE 905K472552 v1.1...
Page 17 This gesture is shown at the following link: https://docs.microsoft.com/en-us/hololens/hololens2-basic-usage Gaze Gaze can be used to move the cursor and highlight apps and other holograms for selection. The cursor follows whole head movements as opposed to simple movement of the eyes. ©2020 CAE 905K472552 v1.1...
Page 18 2. Hold your hand straight out in front of you in a loose fist. 3. Point your index finger straight up toward the ceiling. 4. Point your thumb straight out, forming an “L” with your index finger. ©2020 CAE 905K472552 v1.1...
Page 19 To use the hand ray, place your palm forward facing you with your elbow relaxed, and draw an imaginary line from your shoulder to your palm. As the hand ray moves over objects, a white line will ©2020 CAE 905K472552 v1.1...
Page 20 Zoom and Rotate You can move, resize, and rotate app windows and 3D objects using the pinch or grab and hold gesture with hand ray. One or both hands can be used to perform these actions. ©2020 CAE 905K472552 v1.1...
Page 21 Speech recognition is enabled to allow interaction with supported voice commands. This setting can be confirmed by navigating to Settings, then Privacy, and then Speech. Note: For best performance, keep Online speech recognition turned Off since the HoloLens 2 will not have access to the Internet. ©2020 CAE 905K472552 v1.1...
Page 22 This prevents the hologram from drifting causing the device to lose its tracking. Prior to launching CAE LucinaAR, walk around with the HoloLens 2 on your head so it can map the surroundings. Microsoft suggests doing this for between 5 and 10 minutes, to look at the ceiling, the floor and other objects from all sides.
Page 23 If you are prone to motion sickness in other situations, are afraid of heights, get migraine headaches, have an inner ear disorder, or other health conditions, you may be at increased risk of discomfort. ©2020 CAE 905K472552 v1.1...
Page 24 If symptoms are severe or persist, consult your doctor. Viewing AR or Mixed Reality is not known to harm vision development or cause binocular vision disorders. If you are not able to view the AR effect clearly and comfortably, consider consulting an eye doctor, as you may have an undiagnosed binocular vision disorder. ©2020 CAE 905K472552 v1.1...
Page 25 Prior to using the HoloLens 2 and simulator exercises, it is necessary to follow these steps. Setup Procedure Charge the HoloLens 2 Adjust HoloLens 2 Fit Power on CAE LucinaAR Power on the HoloLens 2 (Optional) Connect to Miracast Establish the Network Connection...
Page 26 The back band should rest in the mid-back of your head. Note: If you wear eyeglasses, leave them on. b. To expand or loosen the fit, turn the adjustment left or right then loosen the overhead strap. HoloLens 2 Overhead Strap ©2020 CAE 905K472552 v1.1...
Page 27 To attach the back of the overhead strap, push the connection tabs into the slots until they click. To detach the back of the overhead strap, press the button below each connection tab and gently pull the strap out. Attaching and Detaching the Overhead Strap ©2020 CAE 905K472552 v1.1...
Page 28 LAN port on CAE Lucina’s right side. c. Press the power button on the computer located on the right side of the manikin’s torso to turn on CAE Lucina and wait for the manikin to say “Hello.” CAE Lucina Ethernet Ports...
Page 29 Start menu. b. Verify that it indicates LUCINA####, where #### is the serial number of the simulator. If the network does not match the desired simulator, see the Troubleshooting section of this guide. ©2020 CAE 905K472552 v1.1...
Page 30 CAELucinaAR Setup Procedure Step 7: Start CAE LucinaAR SCEs To start CAE LucinaAR SCEs, select and start one of these five augmented reality supported SCEs: • Shoulder Dystocia • Normal Delivery • Breech • Instrumental Delivery • Postpartum Hemorrhage ©2020 CAE 905K472552 v1.1...
Page 31 Using CAE LucinaAR CAE L SING UCINA The CAE LucinaAR application enhances the simulation learning experience through the use of augmented reality and allows learners to gain a deeper understanding of the manikin’s physiology during clinical scenarios. Launch the CAE LucinaAR App 1.
Page 32 CAELucinaAR Using CAE LucinaAR CAE LucinaAR App Icons The following icons will provide feedback and allow you to perform functions: Connected: Indicates that the HoloLens is connected to Lucina’s Ethernet. Not Connected: Indicates that the HoloLens is NOT connected to Lucina’s Ethernet.
Page 33 Using CAE LucinaAR Settings Menu Lift your hand, palm facing you to open the Settings menu. The settings menu contains buttons that allow you to: • Change the language of the application (currently unavailable) • Mute the narration in Single User mode, or mute the narration of Learners and the Instructor sharing an experience •...
Page 34 CAELucinaAR Using CAE LucinaAR Physical Modes Single User Mode The single user mode uses pre-recorded data to drive the physiological values during the experience and can only be used by a single user. For instructions on how to use the application in Holographic Mode, see the Holographic Modes section of this user guide.
Page 35 Using CAE LucinaAR c. In Step 2, Air Tap Physical Manikin. Select Your Experience Menu - Step 2 d. In Step 3, five SCEs are available. Air Tap the SCE that you want to experience. Select Your Experience Menu - Step 3 e.
Page 36 CAELucinaAR Using CAE LucinaAR a. Manipulate the orientation arrows to move and rotate the holographic manikin to the desired position over the physical manikin. Fine Tuning Calibration - Holographic Manikin b. Air Tap the Done button to go to Fine Tuning.
Page 37 Using CAE LucinaAR b. Try to place the hologram as close as possible to the figure below, focus specially on the red circle on the lower border of the vaginal area. Fine Tuning Calibration - Single User Mode c. When you are placed on the side of Lucina as shown below, keep the hologram at one inch of distance as in the above figure.
Page 38 CAELucinaAR Using CAE LucinaAR The In Experience Chapter controls are as follows: In Experience Chapter Controls Air Tap Next to go to the first chapter. Here you will be able to view the holographic manikin. Note: If the holographic anatomy has a flashing highlight, click on the Info button then tap on the anatomy that is highlighted.
Page 39 Using CAE LucinaAR 3. When the simulation starts, wait for the other user clients before changing chapters. The learners will follow along with the SCE as the instructor advances each chapter. Learner To join the simulation: 1. On the Select your experience menu: a.
Page 40 CAELucinaAR Using CAE LucinaAR Once the simulation starts, you will see the menu shown below: Client Simulation Menu 2. Follow the changes of the Host Client. Note: Air Tap the Home button to exit the experience. Holographic Modes Single User Mode...
Page 41 Using CAE LucinaAR b. In Step 2, Air Tap Holographic Manikin. Select Your Experience Menu - Step 2 c. In Step 3, SCEs are available. Air Tap the SCE that you want to use. Select Your Experience Menu - Step 3...
Page 42 CAELucinaAR Using CAE LucinaAR d. In Step 4, Air Tap Start to start the simulation. e. A Red circle will appear. Gaze at the floor and Air Tap to anchor the hologram in place. The holographic bed will now appear.
Page 43 Using CAE LucinaAR Note: If the holographic anatomy has a flashing highlight, you can Air Tap on the anatomy for more information. The anatomy or ogran will rise and provide an informative clinical experience. When the chapter is complete, Air Tap Next to play the next chapter. If you need to replay a chapter, Air Tap Replay.
Page 44 Use the Summon Menu gesture to access the LucinaAR Start menu. b. Air Tap the Home icon at the bottom of the Start menu. c. Air Tap the Remove (x) icon in the upper-right corner of the LucinaAR Startup window to exit and close the window.
Page 45 Using CAE LucinaAR Power Off the HoloLens 2 and Simulator You must power off the HoloLens 2 and simulator. To power off the HoloLens 2: a. Press and hold down the power button on the head band until the HoloLens 2 says, “Goodbye.”...
Page 47 HoloLens 2. If you require assistance, contact CAE Customer Service. When an CAE LucinaAR application update is released, a notification is sent to all customer sites that use that application. Since software used on the HoloLens 2 does not update automatically, the user must follow the steps below to update the CAE LucinaAR application.
Page 48 Settings window to return to the main Settings menu. Step 2: Update the Operating System The HoloLens 2 operating system and Microsoft Store should be updated whenever new CAE applications are to be installed. Install Windows operating system updates before installing Microsoft Store updates.
Page 49 Note: It may take a few minutes for the available updates to be displayed and downloaded. If there are no updates, it will indicate, “You’re good to go.” f. Air Tap the See More icon again. Select My Library. ©2020 CAE 905K472552 v1.1...
Page 50 CAELucinaAR Software Updates g. Install Microsoft Store or other HoloLens 2 related apps if indicated. Note: Do not install Candy Crush, Twitter, or any other non-essential apps that may appear. ©2020 CAE 905K472552 v1.1...
Page 51 Healthcare Microsoft Store - CAE Healthcare Tab b. Air Tap the LucinaAR App, and pause for approximately 10 seconds. If there is an update available, it will begin to download to the HoloLens 2. CAE LucinaAR App Downloading c.
Page 52 CAELucinaAR Software Updates Additionally, all owned CAE Healthcare applications are shown in the Library. Air Tap the See More icon, then Air Tap My Library. Filter displayed apps by CAE Healthcare Library. Healthcare Library Microsoft Store - CAE Healthcare Library...
Page 53 Note: You may be required to enter a password for the network. Use care when selecting characters on the virtual keyboard. The system’s network password is caeadmin. h. Air Tap the X in the upper-right corner to close the Settings window. ©2020 CAE 905K472552 v1.1...
Page 54 Air Tap the All Apps icon to the right of the menu. All Apps Icon b. Air Tap and Hold the LucinaAR icon, then Air Tap the Pin button to pin the app to the Start menu. Pin Button...
Page 55 Warranty for HoloLens 2 ARRANTY FOR The warranty for the HoloLens 2 device is covered by the manufacturer, Microsoft, for one year. CAE Support will only cover CAE AR software applications. Please visit this link for more information: https://support.microsoft.com/en-ca/help/4526577/microsoft-hololens-warranty-information ©2020 CAE 905K472552 v1.1...
Page 57 Troubleshooting ROUBLESHOOTING If you encounter problems while operating your CAE LucinaAR, check the common solutions below or contact your IT Department. Wireless Connection Issue To connect to the desired simulator network: 1. Use the Summon Menu gesture and tap the icon on your wrist to view the Start menu.
Page 58 Simulator Not Found Warning While selecting your experience on the Select Your Experience screen, if the application detects any problem a warning icon may appear like the following: Select Your Experience - SImulator Not Found Warning ©2020 CAE 905K472552 v1.1...
Page 59 Troubleshooting Air Tap on the button with the warning icon to open the Troubleshooting panel. You will find information about your current issue and appropriate steps to help you solve the problem. Troubleshooting Panel ©2020 CAE 905K472552 v1.1...
Page 61 Remove dust with a camel or goat hair lens brush or bulb-style lens blower. º Lightly moisten the included microfiber cloth with a small amount of distilled water º and a mild antibacterial soap. Wipe the visor gently in a circular motion. Cleaning the Visor ©2020 CAE 905K472552 v1.1...
Page 62 Wipe the brow pad with a microfiber cloth moistened with water and a mild º antibacterial soap. Replace the brow pad. º Note: Bleach-based wipes are NOT recommended. For more information about cleaning the HoloLens 2 device, go to the link https://docs.microsoft.com/en-us/hololens/ hololens2-maintenance ©2020 CAE 905K472552 v1.1...
Page 63 For more information about CAE products, contact your regional sales manager or the CAE distributor in your country, or visit caehealthcare.com. Tel +1 941-377-5562 or 866-233-6384 For customer service, please contact CAE. Customer Service Headquarters - United States Monday - Friday from 7:00 a.m. to 6:00 p.m. ET Phone 1-866-462-7920 Email: srqcustomerservice@cae.com...
