Using the Venogram Balloon

Note: This feature is only used during the CRDM module.
The venogram balloon is inflated by an syringe during a venogram procedure to identify the anatomy
of the veins and properly place a lead. This syringe is connected via tubing to the Venogram port
located on the back of the simulator.
To use the venogram syringe:
1. Ensure the venogram syringe is connected to the back of the simulator
2. Pull back on the syringe
3. On the contrast syringe, push the contrast syringe to "inject" the contrast dye
The contrast dye pulses through the vessels on the x-ray.
4. Depress the venogram syringe to inflate the balloon
44

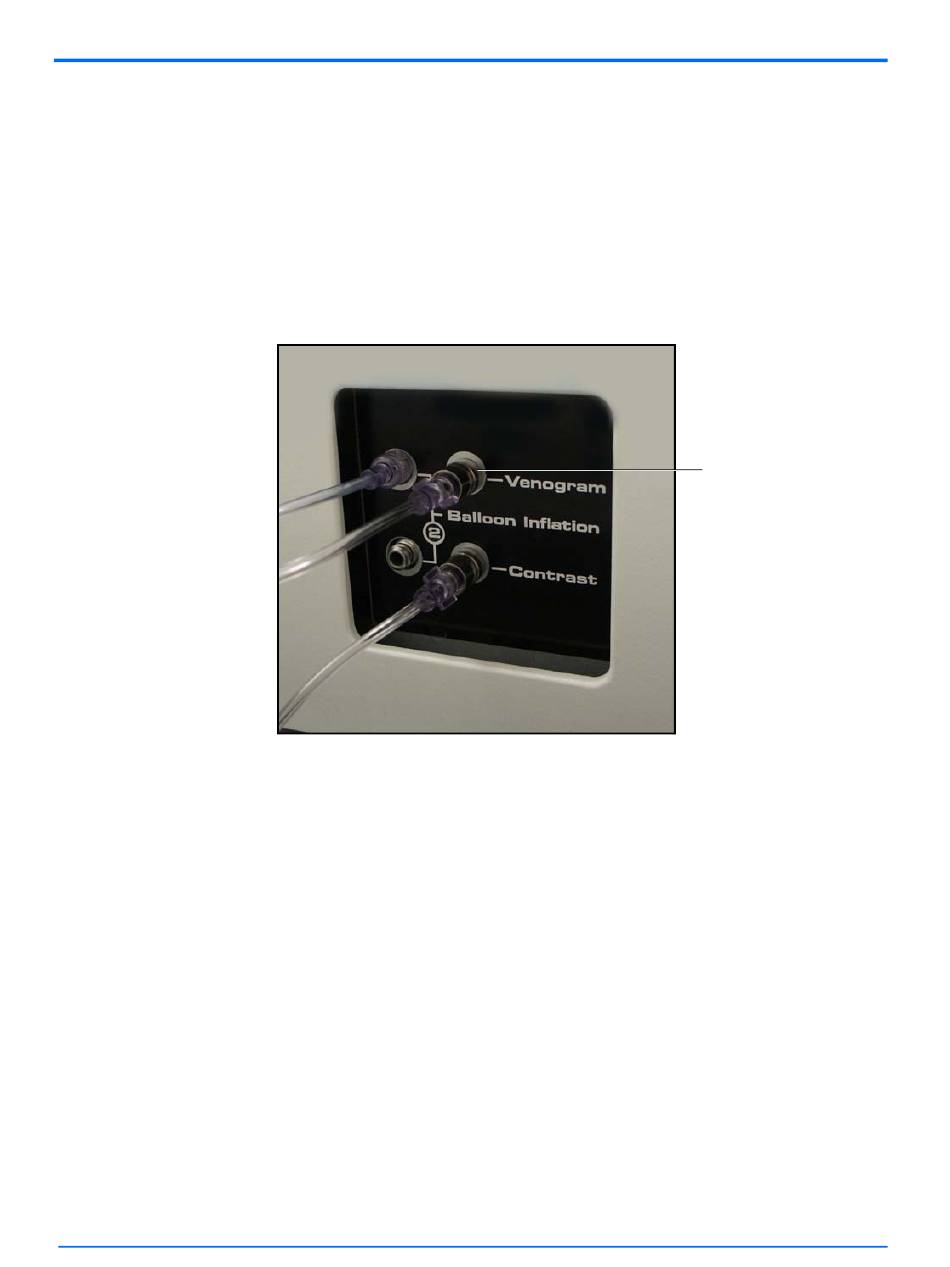

The Accessory Ports
CAECathLabVR
The venogram
port
