Inserting a Tool
Guide wires and catheters are the selected tools that can be physically inserted inside the simulator.
Note: Prior to inserting a tool into the simulator, select the tool in the software using the tool
selection panel.
To insert a tool in the simulator:
1. Align the tool with the hole and gently feed the tool into the hole
The Smart Capture feature initiates on screen.
Note: The Smart Capture feature appears on the right monitor.
2. Depress the Fluoro foot pedal to activate the x-ray feature
3. Continue to slowly insert the tool until all four lights on the Smart Capture feature turn
green
30
The catheter
tool

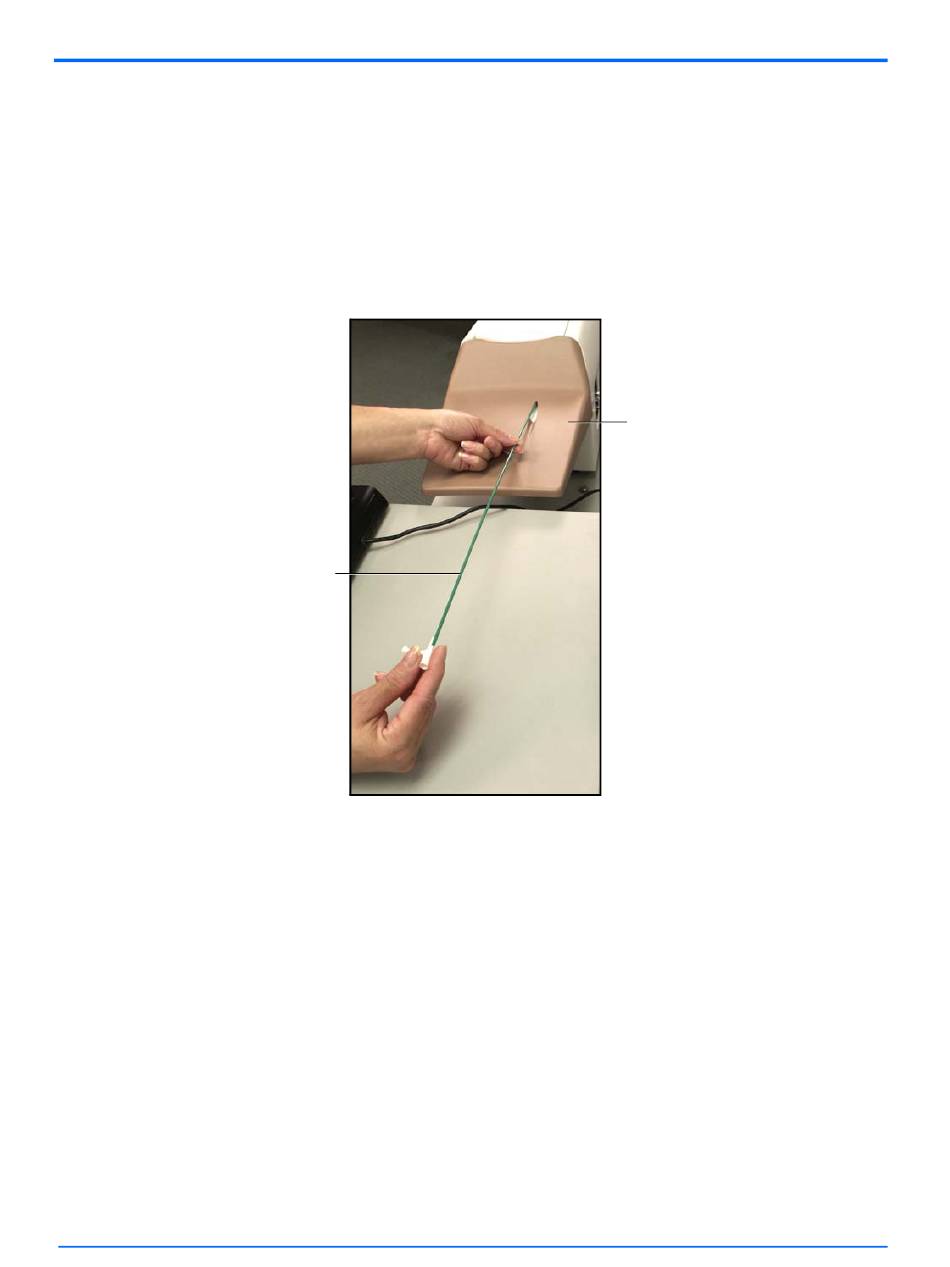

The Tool Insertion
CAECathLabVR
The
simulator
PN: 905K400652
