Using the Simulator
To use the balloon inflation syringe:
1. Ensure the balloon inflation syringe is connected to the back of the simulator

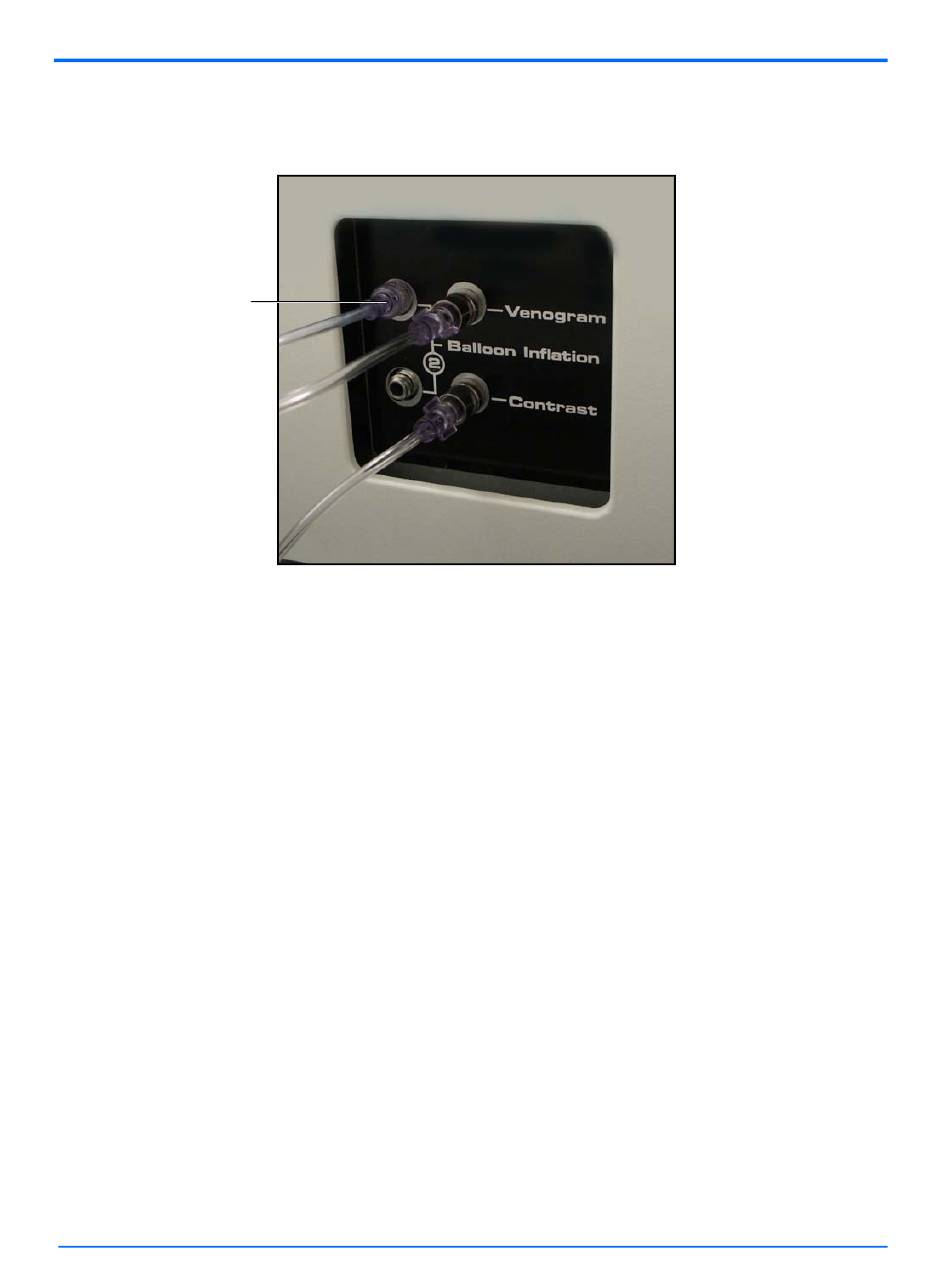

The balloon
inflation port
2. Select the virtual balloon or stent from the tools selection panel in the software
3. Rotate the piston knob clockwise until the desired pressure is achieved
The expansion of the balloon/stent is visible on the monitor
4. To reduce pressure quickly, pull the trigger and draw the piston knob back fully
Note: Inflation of the balloon to pressures greater than the indicated "burst pressure"
will results in rupture of the balloon within the virtual anatomy.
46
The Accessory Ports
CAECathLabVR
PN: 905K400652
