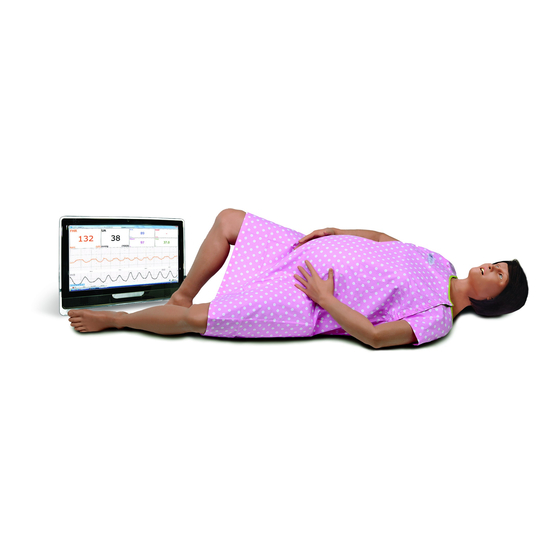

CAE LucinaAR User Manual

Baby birth simulator with hololens 2

Hide thumbs Also See for LucinaAR:

User manual (63 pages)

Table Of Contents

Table of Contents

Quick Links

Download this manual

CAELucinaAR

with HoloLens 2

User Guide

Your worldwide

training partner

of choice

Table of Contents

Summary of Contents for CAE LucinaAR

Page 1 CAELucinaAR with HoloLens 2 User Guide Your worldwide training partner of choice...
Page 2 This document, including the information contained herein, is confidential and/or proprietary to CAE Inc., and shall not be reproduced or disclosed in whole or in part, or used for any purpose whatsoever without the prior written authorization of CAE Inc.
Page 4 Step 9: Install and Update the CAE LucinaAR App....... . .
Page 5: Cautions And Warnings
In fueling areas, sparks can occur and cause an explosion or fire. When you are in a fueling area, turn off your HoloLens 2 and do not remove or install battery chargers, AC adapters, or any other accessory. ©2020 CAE 905K472552...
Page 6: Heat Related Concerns
Seizures may also cause loss of consciousness or convulsions that can lead to injury from falling down or striking nearby objects. Immediately stop using the HoloLens 2 and consult a doctor if you experience any of these symptoms. ©2020 CAE 905K472552...
Page 7: Skin Irritation
• Do not wear over injured skin. • Adjust the headband only until snug – avoid tightening the headband uncomfortably. • If your skin becomes irritated, stop using the HoloLens 2 device. • If symptoms are severe or persist, consult your physician. ©2020 CAE 905K472552...
Page 9: Helpful Links
• Setup Hololens 2: https://docs.microsoft.com/en-us/hololens/hololens2-start • Using Gestures: https://docs.microsoft.com/en-us/hololens/hololens2-basic-usage • Connect to Miracast: https://docs.microsoft.com/en-us/hololens/hololens-connect- devices#connect-to-miracast • Environment considerations for HoloLens 2: https://docs.microsoft.com/en-us/ hololens/hololens-environment-considerations • Caring for and cleaning your HoloLens 2: https://docs.microsoft.com/en-us/hololens/ hololens2-hardware • Additional instructions and references: https://docs.microsoft.com/en-us/hololens/ ©2020 CAE 905K472552...
Page 11: Equipment Overview
Connect to power supply for charging or connect to a computer Power supply 18W charger, 9V at 2A Microfiber cloth Use to clean the visor For more information about the Hololens 2 hardware, go to this link: https://docs.microsoft.com/en- us/hololens/hololens2-hardware ©2020 CAE 905K472552...
Page 13: Introduction
The Summon Menu gesture, also referred to as the Start gesture, is used to open the Start menu and navigation menus. If a user is uncertain of what to do, the Summon Menu gesture is a good way to get reoriented. ©2020 CAE 905K472552...
Page 14 3. The Start menu or navigation menu will open. 4. To close the menu, repeat the Summon Menu gesture while the Start menu is open. You can also look at the Start menu and say, “Close”. Summon Menu Gesture ©2020 CAE 905K472552...
Page 15: Gaze
This gesture is shown at the following link: https://docs.microsoft.com/en-us/hololens/ hololens2-basic-usage Gaze Gaze can be used to move the cursor and highlight apps and other holograms for selection. The cursor follows whole head movements as opposed to simple movement of the eyes. ©2020 CAE 905K472552...
Page 16: Air Tap Gesture
2. Hold your hand straight out in front of you in a loose fist. 3. Point your index finger straight up toward the ceiling. 4. Point your thumb straight out, forming an “L” with your index finger. ©2020 CAE 905K472552...
Page 17: Air Tap And Hold Gesture
Hand Ray Gesture The hand ray gesture allows you to interact with holograms or menus out of reach, also known as far field manipulation. It is used to interact with menus and content in the application. ©2020 CAE 905K472552...
Page 18: Zoom And Rotate
One or both hands can be used to perform these actions. Zoom: • Zoom IN: Pinch or grab and hold, then slowly move your hand(s) towards you • Zoom OUT: Pinch or grab and hold, then slowly move your hand(s) away from you ©2020 CAE 905K472552...
Page 19: Resizing Holograms And App Windows
The following list contains a description for each voice command: Voice Command Description “Select” Bring up the Gaze cursor; turn your head to position the cursor as needed and say “Select” again “Go to Start” Opens the Start menu ©2020 CAE 905K472552...
Page 20: Environmental Anchoring
This prevents the hologram from drifting causing the device to lose its tracking. Prior to launching CAE LucinaAR, walk around with the HoloLens 2 on your head so it can map the surroundings. Microsoft suggests doing this for between 5 and 10 minutes, to look at the ceiling, the floor and other objects from all sides.
Page 21: Use In Safe Surroundings
• Using HoloLens 2 for extended periods without a break • Using HoloLens 2 in a completely dark environment that keeps you from seeing visual cues with your peripheral vision ©2020 CAE 905K472552...
Page 22: Consider Keeping Your First Sessions Brief
If symptoms are severe or persist, consult your doctor. Viewing AR or Mixed Reality is not known to harm vision development or cause binocular vision disorders. If you are not able to view the AR effect clearly and comfortably, consider consulting an eye doctor, as you may have an undiagnosed binocular vision disorder. ©2020 CAE 905K472552...
Page 23: Setup Procedure
Step 1: Access Azure Active Directory Account You will receive an Azure Active Directory Account at the time you purchase the LucinaAR application. This account will allow you to access the CAE Healthcare tab on the Hololens Microsoft Store, where you can install and update the application from the Hololens 2.
Page 24: Battery Leds
The back band should rest in the mid-back of your head. Note: If you wear eyeglasses, leave them on. b. To expand or loosen the fit, turn the adjustment left or right then loosen the overhead strap. Hololens 2 Overhead Strap ©2020 CAE 905K472552...
Page 25: Attach And Detach The Overhead Strap
To detach the back of the overhead strap, press the button below each connection tab and gently pull the strap out. Attaching and Detaching the Overhead Strap Step 4: Power on CAE Lucina Prior to beginning this process, start with the router and HoloLens 2 powered off. To connect the HoloLens 2:...
Page 26: Step 5: Power On The Hololens 2
Note: LED lights near the power button indicate the current battery level. For more information on the battery LED light indicators, see the Charge the Hololens 2 section of this user guide. c. Use the Summon Menu gesture to open the Start menu. ©2020 CAE 905K472552...
Page 27: Step 6 (Optional): Connect To Miracast
Step 7: Establish the Network Connection The HoloLens 2 is preconfigured to connect to the CAE Lucina manikin or the external router, if used without the CAE Lucina manikin. To ensure the router is connected: a. Verify the wireless connectivity to the network by viewing the WiFi status indicator at the top of the Start menu.
Page 28 Connect to a WiFi network with Internet capabilities. If required, enter the password for the network. Note: Use care when selecting characters on the virtual keyboard. f. Air Tap the Go back arrow in the top left corner of the Settings window to return to the main Settings menu. ©2020 CAE 905K472552...
Page 29 Note: This step could take more than 20 minutes to complete. While the HoloLens 2 is restarting, you may connect the HoloLens 2 to a power source. DO NOT place the HoloLens 2 upright or you will have to recalibrate it again. ©2020 CAE 905K472552...
Page 30: Step 9: Install And Update The Cae Lucinaar App
CAE Healthcare tab. If you require assistance, contact CAE Customer Service. b. Air Tap on the CAE Healthcare tab. Healthcare Microsoft Store - CAE Healthcare Tab c. Air Tap on the LucinaAR App, then Air Tap the Install button. ©2020 CAE 905K472552...
Page 31 LucinaAR application appears in the download queue section. b. Air Tap the Recent activity section, then Air Tap the LucinaAR application. c. Air Tap the Launch button to launch the LucinaAR application with one of the following methods: Use Air Tap along with Gaze.
Page 32: Step 10: Download Updates From Microsoft Store
Air Tap to Skip Iris’ Introduction e. Raise your hand, palm facing you to view the Settings Menu. Verify that the app version number has been updated. If there are any discrepancies, contact CAE Customer Service. Settings Menu - App Version...
Page 33 “Downloads and updates” when it appears at the bottom of the Downloads and updates option. Note: Air Tap and hold on the Pin icon to pin the Microsoft Store app to the Home screen. To unpin, Air Tap and hold on the unpin icon. ©2020 CAE 905K472552...
Page 34 “Get updates” when it appears at the bottom of the Get updates button. Note: It may take a few minutes for the available updates to be displayed. Get updates button Microsoft Store - Get Updates Button e. If a Microsoft Store update is available, download and install the update. ©2020 CAE 905K472552...
Page 35: Step 11: Configure The Start Menu
IMPORTANT: Be careful not to select the Uninstall option when unpinning an application. Step 12: Start CAE LucinaAR SCEs To start CAE LucinaAR SCEs, select and start one of these five augmented reality supported SCEs: • Shoulder Dystocia • Normal Delivery •...
Page 37: Using Cae Lucinaar
2. Verify that the HoloLens 2 is connected to the LUCINA#### wireless network. 3. If you don’t see the LucinaAR app icon in the Start menu, Air Tap the All Apps icon to the right of the menu. 4. Air Tap and hold the LucinaAR icon, then Air Tap Pin to pin the app to the Start menu.
Page 38: Cae Lucinaar App Icons
CAELucinaAR Using CAE LucinaAR CAE LucinaAR App Icons The following icons will provide feedback and allow you to perform functions: Connected: Indicates that the HoloLens is connected to Lucina’s Ethernet. Not Connected: Indicates that the HoloLens is NOT connected to Lucina’s Ethernet.
Page 39: Settings Menu
Using CAE LucinaAR Settings Menu The settings menu contains buttons that allow you to: • Change the language of the application (currently unavailable) • Mute your narration in Single User mode, or mute the narration of Learners and the Instructor sharing an experience •...
Page 40: Physical Modes
CAELucinaAR Using CAE LucinaAR Physical Modes Single User Mode The single user mode uses pre-recorded data to drive the physiological values during the experience and can only be used by a single user. For instructions on how to use the application in Holographic Mode, see the Holographic Modes section of this user guide.
Page 41 Using CAE LucinaAR If you are satisfied with the positon of the instructor’s holograms, simply wait for the instructor to start the chapter. Hologram Sharing Screen If you feel the need to recalibrate the holograms to the desired position, you can stop receiving the instructor’s holograms and proceed with manual calibration.
Page 42: Holographic Modes
2. Air Tap on the All Apps icon. 3. Air Tap and hold the LucinaAR app. 4. Air Tap LucinaAR. A blue box appears to load screen. Wait a couple of minutes for the app to open. 5. The Iris bot appears. Air Tap on Iris to skip the introduction.
Page 43 Using CAE LucinaAR b. In Step 2, Air Tap Physical Manikin. Select Your Experience Menu - Step 2 c. In Step 3, SCEs are available. Air Tap the SCE that you want to use. Select Your Experience Menu - Step 3 d.
Page 44 CAELucinaAR Using CAE LucinaAR 6. On Gaze Calibration: a. Manipulate the move and rotate arrows to move and rotate the holographic manikin to the desired position over the physical manikin. Fine Tuning Calibration b. Air Tap the Done button to go to Fine Tuning.
Page 45 Using CAE LucinaAR b. Try to place the hologram as close as possible to the figure below, focus specially on the red circle on the lower border of the vaginal area. Fine Tuning Calibration - Single User Mode c. When you are placed on the side of Lucina as shown below, keep the hologram at one inch of distance as in the above figure.
Page 46: Multi-User Mode
CAELucinaAR Using CAE LucinaAR The In Experience Chapter controls are as follows: In Experience Chapter Controls Air Tap Next to go to the first chapter. Here you will be able to view the holographic manikin. Note: If the holographic anatomy has a flashing highlight, click on the Info button then tap on the anatomy that is highlighted.
Page 47: End The Simulation
To end a LucinaAR simulation with the HoloLens 2: 1. Use the Summon Menu gesture to access the LucinaAR Start menu. 2. Air Tap the Remove icon in the upper-right corner of the LucinaAR Startup window to exit and close the window.
Page 48: Power Off The Hololens 2 And Simulator
CAELucinaAR Using CAE LucinaAR Power Off the Hololens 2 and Simulator You must power off the Hololens 2 and simulator. To power off the HoloLens 2: 1. Press and hold down the power button on the head band until the HoloLens 2 says, “Goodbye.”...
Page 49: Troubleshooting
Troubleshooting ROUBLESHOOTING If you encounter problems while operating your LucinaAR, check the common solutions below or contact your IT Department. Wireless Connection Issue To connect to the desired simulator network: 1. Use the Summon Menu gesture to open the Start menu.
Page 50: Warnings
6. Connect to the appropriate Lucina WiFi network and enter the password CAEadmin. Warnings If a problem is detected, a warning icon will appear, prompting further action. If the problem cannot be resolved, please contact CAE customer service. Warning Icon Simulator Warnings...
Page 51 Troubleshooting Simulator Not Found Warning While selecting your experience on the Select Your Experience screen, if the application detects any problem a warning icon may appear like the following: Select Your Experience - SImulator Not Found Warning ©2020 CAE 905K472552...
Page 52 CAELucinaAR Troubleshooting Air Tap on the button with the warning icon to open the Troubleshooting panel. You will find information about your current issue and appropriate steps to help you solve the problem. Troubleshooting Panel ©2020 CAE 905K472552...
Page 53: Care And Cleaning
Remove dust with a camel or goat hair lens brush or bulb-style lens blower. º Lightly moisten the included microfiber cloth with a small amount of distilled water º and a mild antibacterial soap. Wipe the visor gently in a circular motion. Cleaning the Visor ©2020 CAE 905K472552...
Page 54 Wipe the brow pad with a microfiber cloth moistened with water and a mild º antibacterial soap. Replace the brow pad. º Note: Bleach-based wipes are NOT recommended. For more information about cleaning the Hololens 2 device, go to the link https://docs.microsoft.com/en-us/hololens/hololens2- maintenance ©2020 CAE 905K472552...
Page 55 For more information about CAE products, contact your regional sales manager or the CAE distributor in your country, or visit caehealthcare.com. Tel +1 941-377-5562 or 866-233-6384 For customer service, please contact CAE. Customer Service Headquarters - United States Monday - Friday from 7:00 a.m. to 6:00 p.m. ET Phone 1-866-462-7920 Email: srqcustomerservice@cae.com...
