Using the Simulator
Activating the Fluoro Feature
To activate the Fluoro (x-ray) feature, depress the Fluoro pedal. Upon starting a simulation, the right
monitor will prompt the learner to press the pedal and activate the Fluoro feature to view the x-ray.

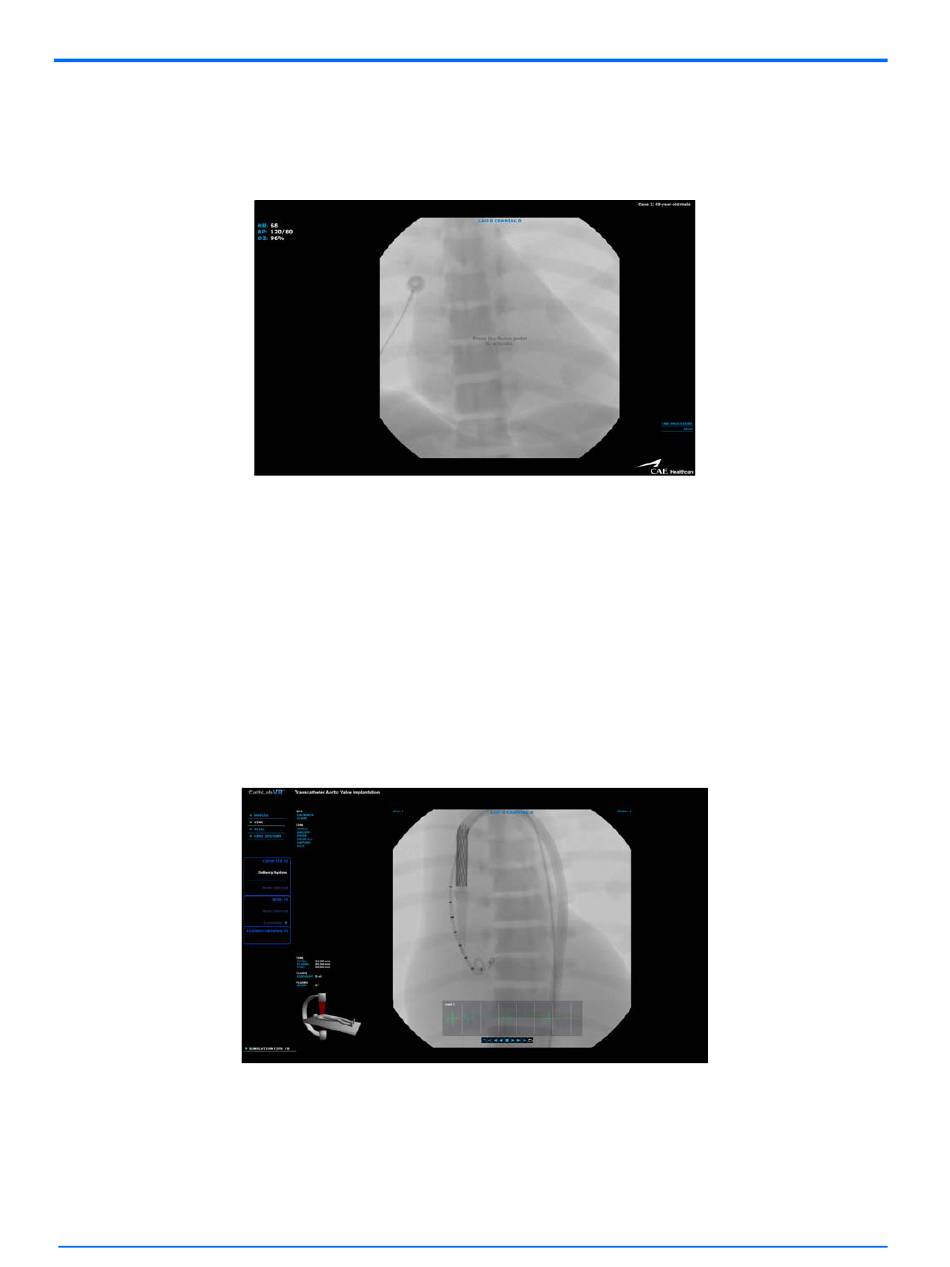

The Fluoro Activation Message
Note: In all procedures of the CRDM module, press down on the RIGHT pedal (labeled Cine) to use
the Fluoro feature.
Activating the Cine Feature
To capture a video of the procedure, depress the Cine pedal and hold for desired length of recording.
Once the pedal is released, the Cine review screen appears.
On the Cine review screen, the selected recording will display in a loop on the Left monitor until
another feature from the features list is selected.
The Simulation Screen - Cine Feature
Note: In all procedures of the CRDM module, depress the LEFT pedal (labeled Fluoro) to use the Cine
feature.
