Using the Balloon Inflation Feature

The balloon is inflated by a 20cc syringe, trigger, pressure gauge and piston knob that can be pushed
in and out as well as rotated to achieve the desired pressure. during a procedure. This syringe is
connected via tubing to the Balloon Inflation port located on the back of the simulator.
Note: Prior to using/connecting the inflation device, water must be drawn into the syringe and tube
leading from it.
To fill the syringe with water:
1. Pull the trigger to release the lock mechanism
2. Submerge the distal end of the tubing leading from the syringe into water
3. Draw back on the piston knob until the syringe and tubing are full
Remove any air from the syringe and tubing by pushing in gently on the piston knob
before connecting the tubing to the balloon inflation port.
PN: 905K400652

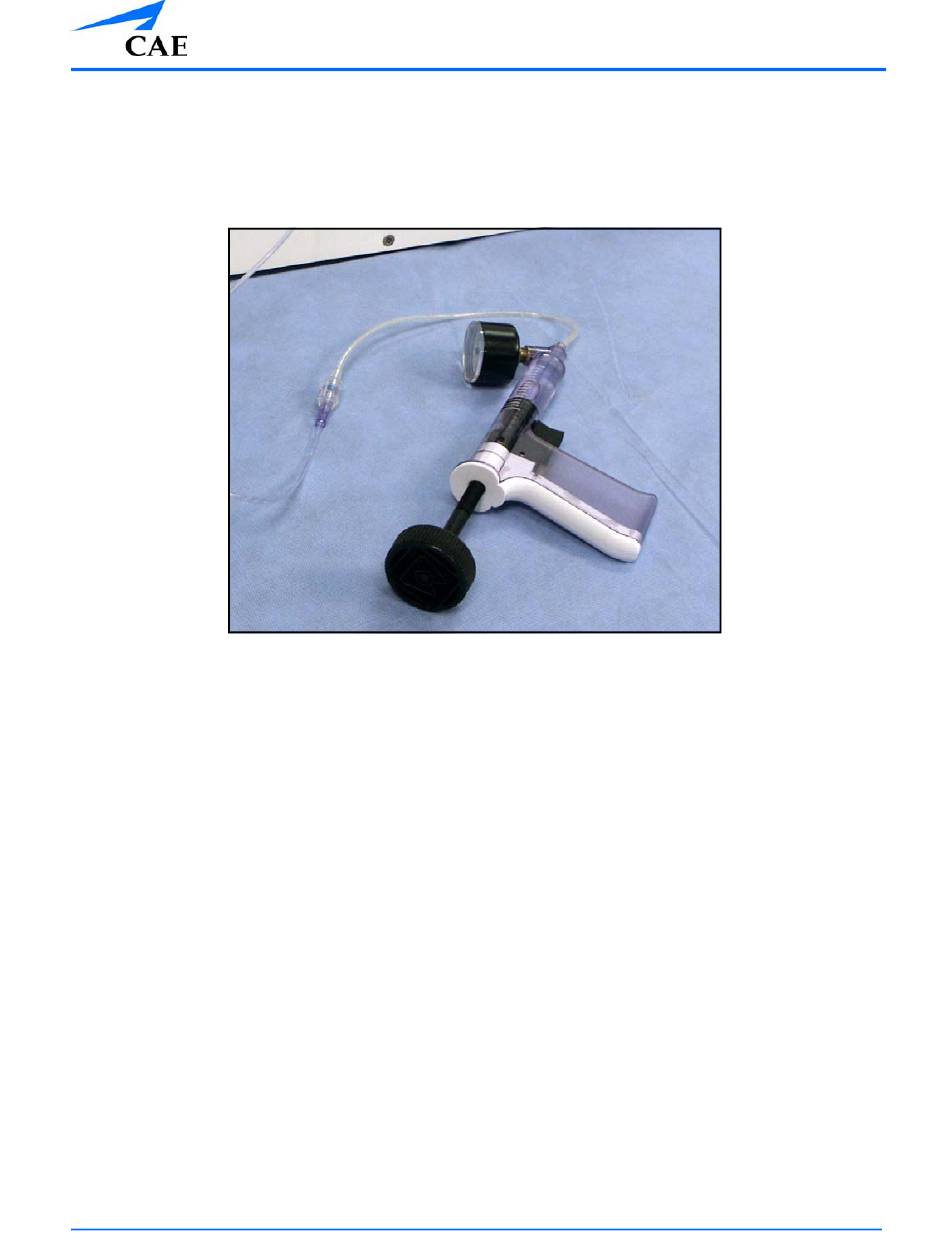

The Balloon Inflation Syringe
Using the Simulator
