Service guide

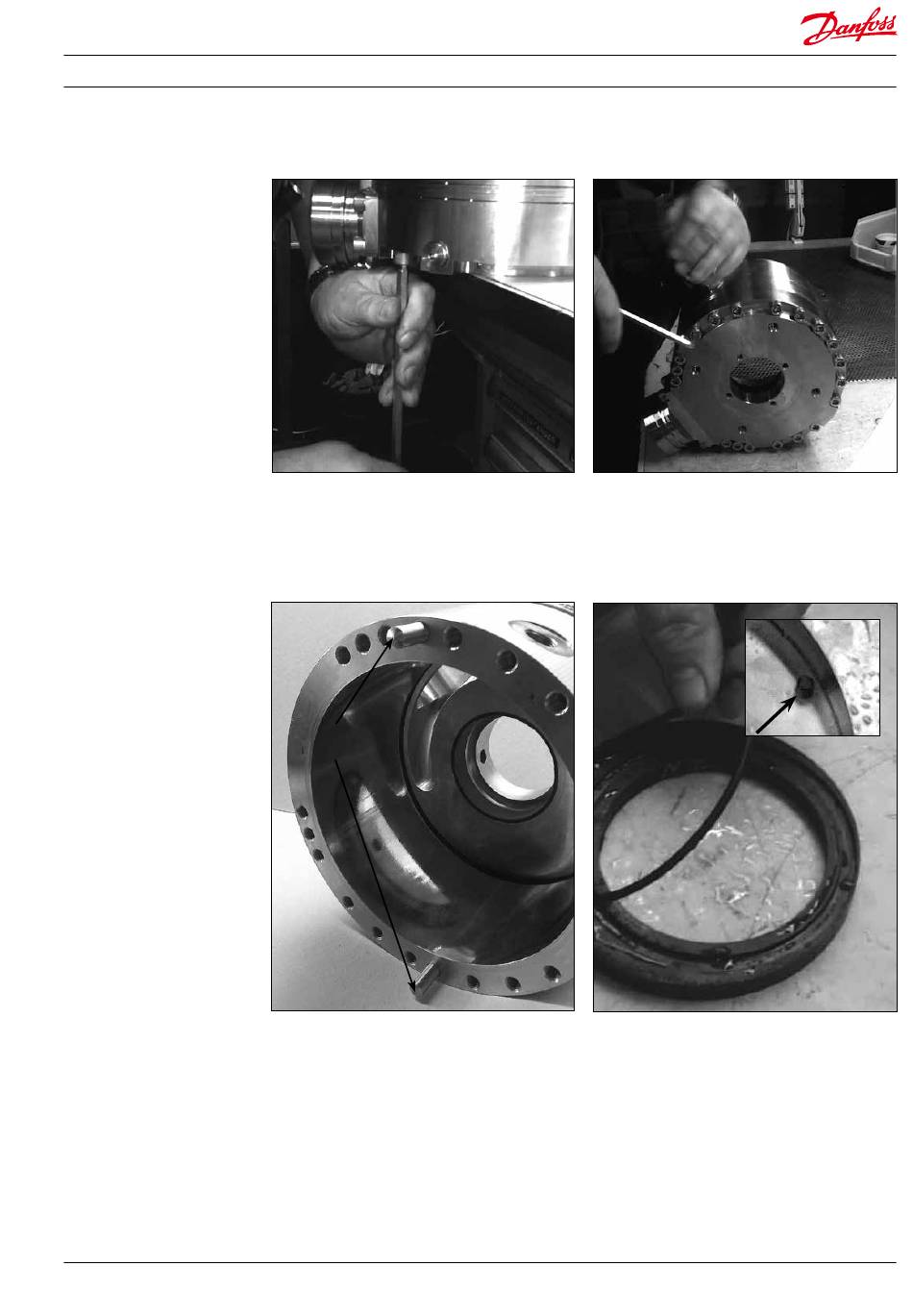

Disassembling and assembling iSave 40
5.
Tighten the bolts by using an allen key.
7.
Assemble and position the two pins in the
pin holes.
180R9242 | 521B1213 | DKCFN.PI.003.R3.02 | 04.2016
6.
Tilt the flange and stator; assemble and
screw in the rest of the bolts in the flange.
Tighten bolts to a torque of 60 ±6 Nm.
9.
Mount the O-ring in the sealing plate and
guide pin in flange.
It is important to lubricate to ensure the
O-ring does not drop out.
9
