Service guide Disassembling and assembling iSave 40

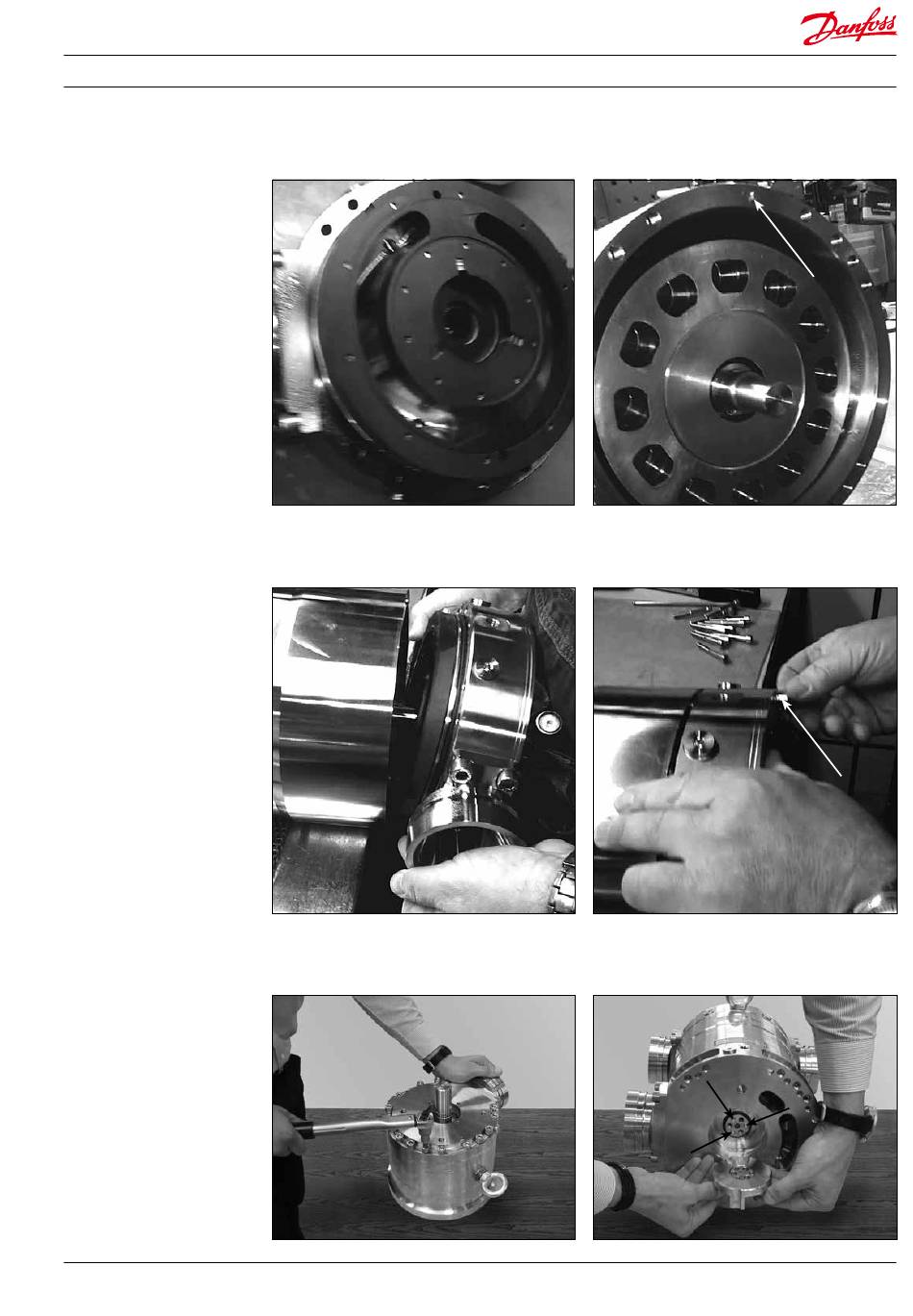

9. Position the port plate on the HP/LP flange
using the two guide pins as guide. Only
one port plate fits.
11. Carefully position the flange assembly onto
the guide pin in the casing.
13. Assemble all the bolts and tighten them to
a torque of 30 ±3 Nm.
180R9242 | 521B1213 | DKCFN.PI.003.R3.02 | 04.2016
10. Position the guide pin into the casing.
12. Carefully assemble a bolt into the casing to
ensure that flange assembly stays in place.
14. Mount the 3 pins in shaft and place the
coupling part.
